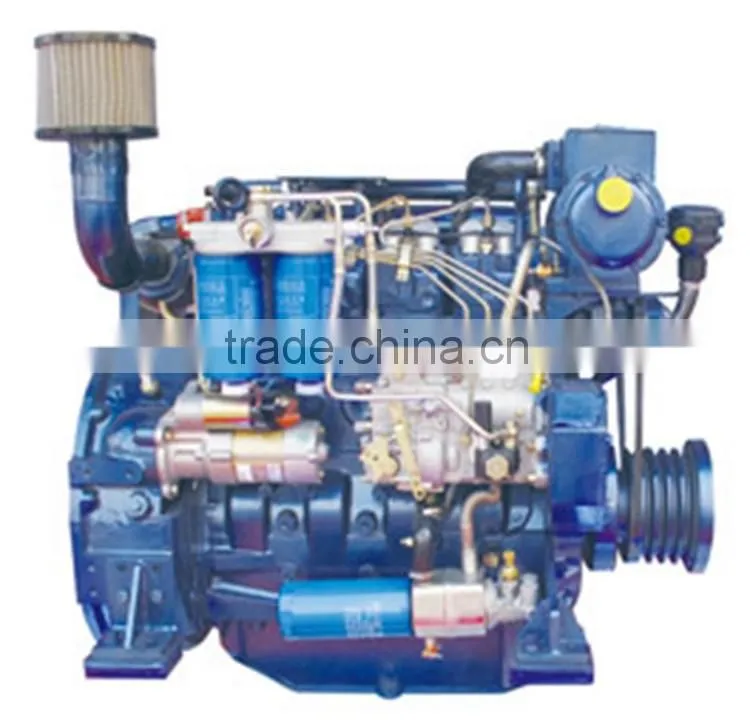

Weichai WP4 Series of Marine Diesel Engine 60-88Kw
US$ 5,000 - 50,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China Mainland
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Weichai WP6 Series of Marine Diesel Engine 90-168kWUS$ 5,000 - 50,000MOQ: 1 Piece -
CHD 622 Series of Diesel Engine for Sea and LandUS$ 190,000 - 250,000MOQ: 1 Piece
-
CHD316 Series of Marine Diesel Engine Developed From Gernany 616 Diesel EngineUS$ 50,000 - 100,000MOQ: 1 Piece
-
TBD 620 Series of Diesel Engine Developed From Deutz Diesel EngineUS$ 20,000 - 90,000MOQ: 1 Piece
-
TBD604 Series of Diesel Engine Developed From Deutz-MWM for VesselUS$ 90,000 - 100,000MOQ: 1 Piece
Condition
New
Engine
4 Stroke
Fuel Type
Diesel
Cylinders
6
Engine Position
Inboard
Dimensions (L x W x H) (mm)
1040*620*900mm
Product Description

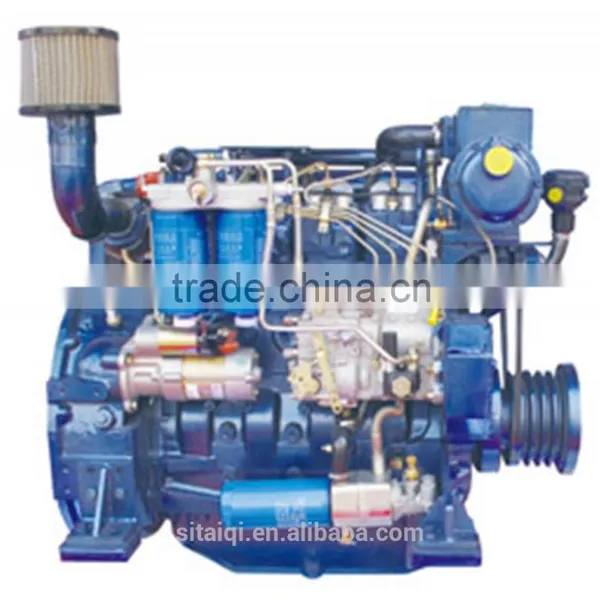

WP4 marine diesel engine develops from Deutz 226B-4C family with improved structure, increased strokes, and higher displacement, which significantly enhance its reserve power. Strictly in line with German standards, this series engine is equipped with round reentrant ω-shaped combustion chamber, low-vortex cylinder lid, low flow-resistant intake system, and efficient supercharger, which improve combustion greatly. Moreover, its two-degree balancing mechanism effectively reduces vibration and noise.
The WP4 series have passed the International Association Classification Society Certificates of CCS,ZY,ABS, GL,BV,DNV ,RS and LR.
Product Application
This series is ideally used on river transport ships, fishing boats and public vessels.
Main Technical Data
| Item | Unit | Engine type | |||||
| WP4C82-15 | WP4C95-18 | WP4C102-21 | WP4C120-18 | ||||
| intake mode | Turbocharged | turbocharged and intercooled | |||||
| number of cylinders | 4 | ||||||
| bore X stroke | 105×130 | ||||||
| displacement | L | 4.5 | |||||
| compression ratio | 18 | ||||||
| rated power | KW | 60 | 70 | 75 | 88 | ||
| rated speed | r/min | 1500 | 1800 | 2100 | 1800 | ||
| min. fuel oil consumption | g/(KW.h) | 205 | |||||
| fuel consumption @ rated power | g/(KW.h) | ≤215 | ≤220 | ≤225 | ≤215 | ||
| lub oil and fuel consumption ratio | % | ≤0.3 | |||||
| cooling mode | Sea and fresh water duel-circulation cooling system | ||||||
| start mode | electric start | ||||||
| net weight | kg | 600±50 | |||||
| rotation direction of crankshaft (seen from the free end) | clockwise | ||||||
| overal dimension | length | mm | 1040 | 1004 | |||
| width | mm | 620 | 555 | ||||
| height | mm | 900 | 1027 | ||||
