CHD 622 Series of Diesel Engine for Sea and Land

CHD 622 Series of Diesel Engine for Sea and Land thumbnail-1
CHD 622 Series of Diesel Engine for Sea and Land photo-1
US$ 190,000 - 250,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China Mainland
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Diesel
Cylinders 6
Engine Position Inboard
Dimensions (L x W x H) (mm) 2500*1360*2060(mm)
Product Description

The CHD622 Series of Diesel Engine are the high-speed and high-power Diesel Engine with own intellectual property rights, At present, compared with other products, they are the biggest in dimension.Up to now, the CHD622 series have passed the International Association Classification Society Certificates of CCS, ZY, ABS, GL, BV, DNV and LR, Having been exported to more than 50 countries and regions in Asia, Europe, Africa, America and Oceania.

Main features of the CHD622 Series Diesel Engines: Good economy, Good startability and speeding-up performance, High reliability, Long service life, Good performance at low load, Easy maintenance and Less cost of maintenance, Compact structure, Small size, Light weight; they can meet the emission requirement of IMO Nox.



Main Technical Data



Model CHD622-L6 CHD622-V8 CHD622-V12 CHD622-V16 CHD622-V20
Bore/Stroke 170mm/215mm
Cylinder Arrangement In Line V-90° V-90° V-90° V-90°
Number of Cylinder 6 8 12 16 20
Unit Cylinder Volume 4.88dm³
Total Cylinder Volume 29.28dm³ 39.04dm³ 58.56dm³ 78.8dm³ 97.6dm³
Dimension 2500*1380*2060 (mm) 2050*1480*2050 (mm) 3020*1490*2030 (mm)  3490*1540*2170 (mm) 3860*1560*2222 (mm)
Dry Weight 3750 kg 4200 kg  6455 kg 7880 kg 9000 kg
Compression Ratio 14:1
Rated Power 2300kw-3500kw
Max.Combustion Pressure 20Mpa
Min.Steady Speed 650r/min
Ignition Speed 150r/min
Direction Anti-clockwise rotation (from flywheel end)
Fuel Combustion ≤200g/kw·h
Lub. Oil Combustion ≤1g/kw·h
Emissions IMO Tier II





Product Application

 The CHD316 series are not only widely used in ship field such as Military equipment, Commercial cargo ship, Passenger ship, Tourist ship, Working ship, Fishing ship and High-speed vessel but also in other fields such as Petroleum industry, Coal industry, Construction,Mining, Nuclear power station, Hydropower station, Emergency/fire pump and Special vehicles.

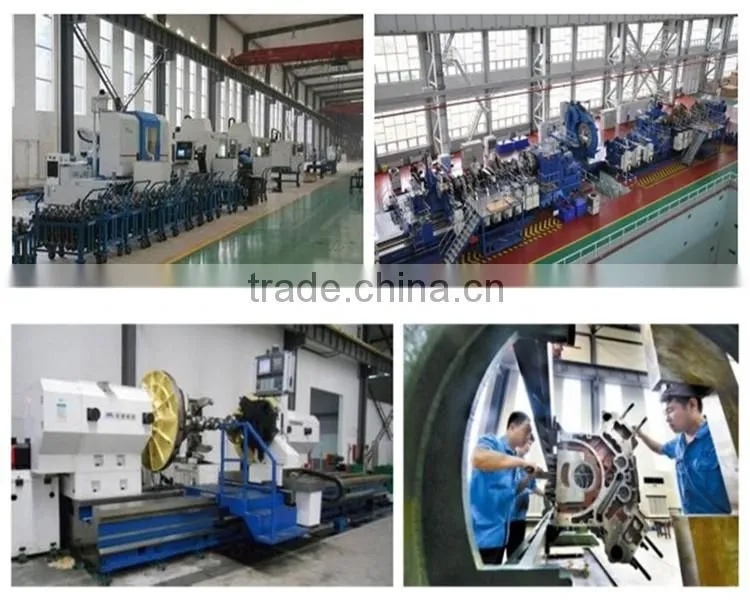

Factory Workshop

 CHD 622 Series of Diesel Engine for Sea and Land

Packaging & Shipping

 CHD 622 Series of Diesel Engine for Sea and Land
