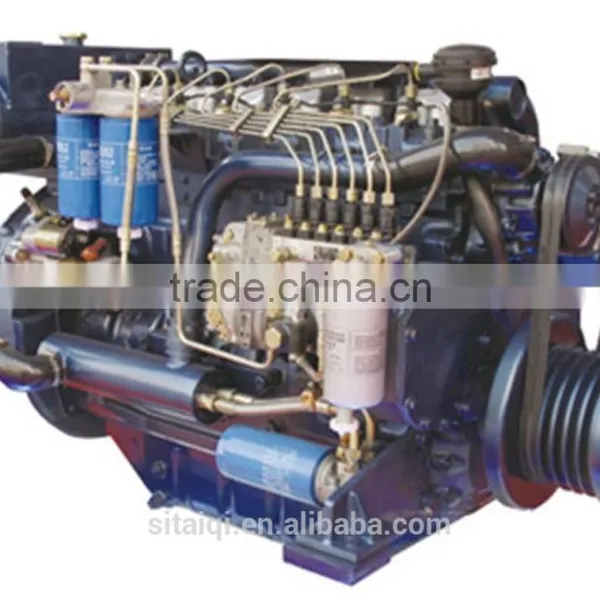

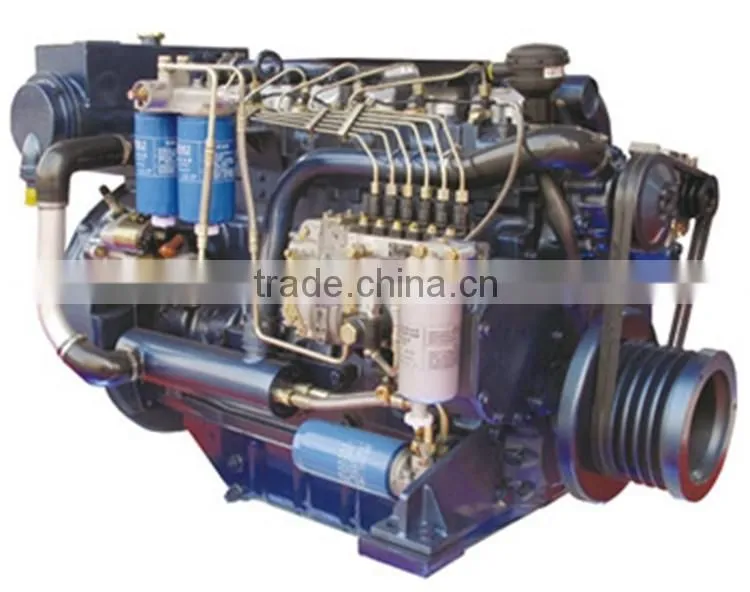

Weichai WP6 Series of Marine Diesel Engine 90-168kW

Weichai WP6 Series of Marine Diesel Engine 90-168kW thumbnail-1
Weichai WP6 Series of Marine Diesel Engine 90-168kW photo-1
US$ 5,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China Mainland
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Diesel
Cylinders 6
Engine Position Inboard
Dimensions (L x W x H) (mm) 1040*620*900(mm)
Product Description

 WP6 marine diesel engine develops from Deutz 226B-6C family with improved structure, increased strokes, and higher displacement, which significantly enhance its reserve power. Strictly in line with German standards, this series engine is equipped with round reentrant ω-shaped combustion chamber, low-vortex cylinder lid, low flow-resistant intake system, and efficient supercharger, which improve combustion greatly. Moreover, its flat fuel consumption curve ensures high economic performance under common working conditions.



The WP6 series have passed the International Association Classification Society Certificates of CCS,ZY,ABS, GL,BV,DNV ,RS and LR.



Weichai WP6 Series of Marine Diesel Engine 90-168kW



Product Application

 This series is ideally used on river transport ships, fishing boats and public vessels.



Main Technical Data



Item Unit Engine type
WP6C122-15 WP6C142-18 WP6C156-21 WP6C140-23
intake mode   Turbocharged
number of cylinders   6
Bore X Stroke   105×130
displacement L 6.75
compression ratio   18
power KW 90 105 115 103
speed r/min 1500 1800 2100 2300
min. fuel oil consumption g/(KW.h) 200
fuel consumption @ rated power g/(KW.h) ≤215 ≤220 ≤225 ≤230
lub oil and fuel consumption ratio % ≤0.3
cooling mode   sea and fresh water duel-circulation cooling system
start mode   electric start
net weight  kg 700±50
rotation direction of crankshaft (seen from the free end)   C.W.
Dimension length mm 1350
width mm 770
height mm 965



Item Unit model
WP6C163-23 WP6C150-15 WP6C165-18 WP6C185-21
admission mehtod   supercharge intercooling
number of cylinders   6
bore X stroke   105×130
piston displacement L 6.75
compression ratio   18
rated power KW 120 110 122 136
rated speed r/min 2300 1500 1800 2100
minimum specific fuel consumption g/(KW.h) 200
rated fuel consumption rate g/(KW.h) ≤230 ≤210 ≤215 ≤220
engine fuel consumption ratio % ≤0.3
cooling method   sea water binary
starting mode   electrical
net weight  kg 700±50 750±50
crankshaft rotation (from free end)    clockwise
overal dimension length mm 1350
width mm 770
height mm 965



Item Unit engine type
WP6C198-23 WP6C220-23 WP6C250-23 WP6C250-25
intake mode   turbocharged intercooling
number of cylinders   6
bore X stroke   105×130
displacement L 6.75
compression ratio   18
power KW 145 162 168 168
speed r/min 2300 2300 2230 2425
min. fuel oil consumption g/(KW.h) 200
fuel consumption @ rated power g/(KW.h) ≤225 ≤225 ≤225 ≤230
lub oil and fuel consumption ratio % ≤0.3
cooling mode   sea and fresh water duel-circulation cooling system
start mode   electric start
net weight  kg 750±50
rotation direction of crankshaft (seen from the free end)   clockwise
dimension length mm 1350
width mm 770
height mm 965
