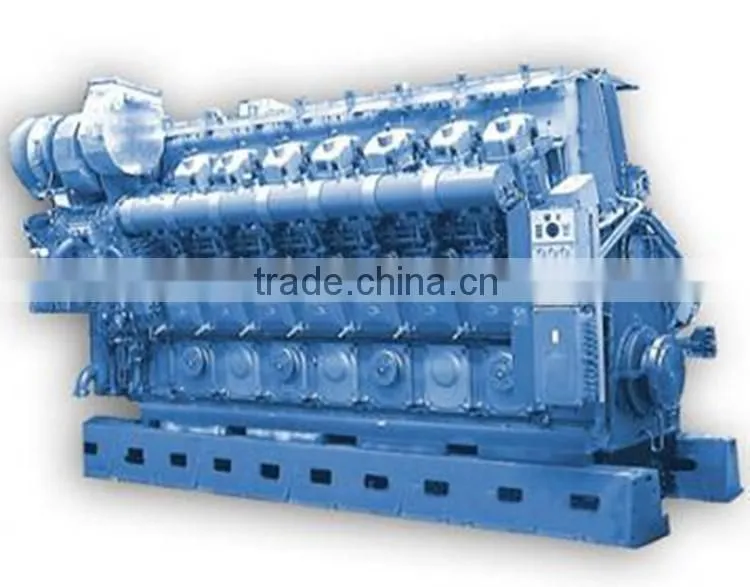

Weichai-MAN V32/40 Series of Marine Diesel Engine 6000Kw-9000Kw

Weichai-MAN V32/40 Series of Marine Diesel Engine 6000Kw-9000Kw thumbnail-1
Weichai-MAN V32/40 Series of Marine Diesel Engine 6000Kw-9000Kw photo-1
US$ 5,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China Mainland
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Diesel
Cylinders 6
Engine Position Inboard
Dimensions (L x W x H) (mm) 6915*3140*4100mm
Product Description

After a production agreement reached by Weichai and world No.1 marine diesel engine manufacturer---Germany-based MAN AG, Weichai-MAN V32/40 series marine diesel engines were introduced to China. Adopting the integral rigid design, the series achieve high security. The cylinder units, which can be easily installed and taken apart, are integrally installed. Adopting the state-of-art turbocharger and dual inter-cooler from MAN AG, this series products pride themselves in their intake performance. What's more, SaCosOne security control system from MAN AG fully ensures its reliability. Highly powerful and economic, engines used for main propulsion consist of 12, 14, 16 or 18 cylinders with a rotation speed of 750r/min and power coverage of 6,000-9,000kW (min. fuel oil consumption: 181g/kWh; lub oil consumption <0.5g/kWh).



Weichai-Man V32/40 series have passed the International Association Classification Society Certificates of CCS, ZY, ABS, GL, BV, DNV , RS and  LR.



Weichai-MAN V32/40 Series of Marine Diesel Engine 6000Kw-9000Kw

Product Application

 With the capability of burning MGO, MDO and HFO, this series of engines are well adapted to various working conditions. It is mainly used as the main and auxiliary engines for ships.

Main Technical Data

Item Unit engine type
12V32
/40		 14V32
/40		 16V32
/40		 18V32
/40
intake mode turbocharged and intercooled
number of cylinders 12 14 16 18
bore X stroke 320×400
displacement L 386.04 450.38 514.72 579.06
compression ratio 15.2
rated speed r/min 750 750 750 750
rated power KW 6000 7000 8000 9000
min. fuel oil consumption g/KWh 182
fuel consumption @ rated power g/KWh 185
cooling mode low and high tempreture fresh water binary
start mode air motor
rotation direction of crankshaft (seen from the free end) clockwise
dimension L mm 6915 7545 8365 8995
W mm 3140 3140 3730 3730
H mm 4100 4100 4420 4420
H* mm 3230 3230 3230 3230
net weight t 61 68 77 85

Note: H* is the hoisting height benchmarked at the center of the bent axle.
