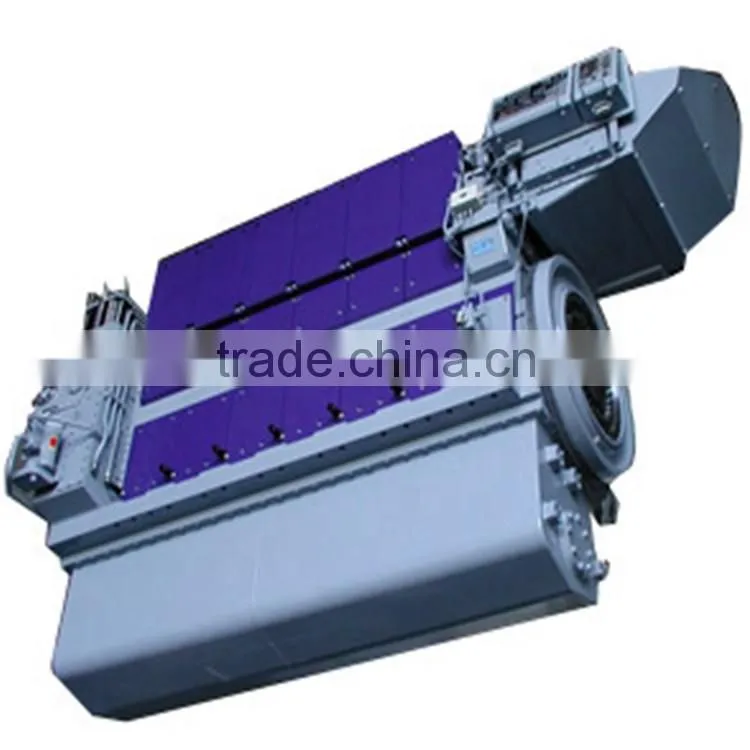

Weichai-Man L21/31 Series of Marine Diesel Engine 1290Kw-1935Kw
- 30 Piece / Pieces per Month
- Shanghai or other ports in China Mainland
- T/T Credit Card
- Weichai Engine Parts 1001415679 1001419634 330205000428 1001880640 1001902771 1001933515 1001936863 1001936866 1001936876 1002270545
- Weichai Engine Parts 1000672111 1000672113 612600062413 90015210006 1000945524 1000945525 1001996818 1002306373 1004007686 1004119219 1004119772
- Weichai Engine Parts 13057039 612600080812 1003221763 1003221761 331001000103 13607900W 1006267880 1000944101 1007140671 1002307126 X6231.176W 1007927878 1001838743 KS
- Hot sale construction machinery engine 6bt5.9-C130 Engine Motor
- 6 cylinder 150HP 2300rpm 6BT5.9-C150 construction machinery engines
- Weichai Engine Parts 1001998731 616067130001 616067030000 1002556798 C16.07.01.0002 820014010010 C62.07.01.0000 1004998562 1001312689 C62.07.09.0000 1001973158
Product Details
Condition: | New | Engine: | 4 Stroke | ||
Fuel Type: | Diesel | Cylinders: | 6 | Engine Position: | Inboard |
Dimensions (L x W x H) (mm): | 4544*1695*3113mm |
Product Description
After a production agreement reached by Weichai and world No.1 marine diesel engine manufacturer---Germany-based MAN AG, Weichai-MAN L21/31 series marine diesel engines were introduced to China. Adopting the integral rigid design, this series achieve high security. Its cylinder units, which can be easily installed and taken apart, are integrally installed. Adopting the state-of-art turbocharger and dual inter-cooler from MAN AG, this series products pride themselves in their intake performance. What's more, Its SaCosOne security control system from MAN AG fully ensures its reliability. With the capability of burning MGO, MDO and HFO, Highly powerful and economic, engines used for main propulsion consist of 6, 7, 8 or 9 cylinders with a rotation speed of 1,000r/min and power coverage of 1,290-1,935kW (min. fuel oil consumption: 192g/kWh; lub oil consumption <0.8g/kWh).
This series have passed the International Association Classification Society Certificates of CCS, ZY, ABS, GL, BV, DNV , RS and LR.
This series engines are well adapted to various working conditions. It is mainly used as the main and auxiliary engines for ships.
Item | Unit | Engine type | ||||
6L21 /31 | 7L21 /31 | 8L21 /31 | 9L21 /31 | |||
Intake mode | turbocharged and intercooled | |||||
Number of cylinders | 6 | 7 | 8 | 9 | ||
bore X stroke | 210×310 | |||||
displacement | L | 64.2 | 74.9 | 85.6 | 96.3 | |
compression ratio | 16.5 | |||||
rated speed | r/min | 1000 | 1000 | 1000 | 1000 | |
rated power | KW | 1290 | 1505 | 1720 | 1935 | |
min. fuel oil consumption | g/KWh | 192 | ||||
fuel consumption @ rated power | g/KWh | 195 | ||||
cooling mode | water cooling low and high tempreture fresh water binary | |||||
start mode | air motor | |||||
rotation direction of crankshaft (seen from the free end) | clockwise | |||||
dimension | L | mm | 4544 | 4899 | 5245 | 5609 |
H | mm | 3113 | 3267 | 3267 | 3267 | |
W | mm | 1695 | 1695 | 1820 | 1820 | |
H* | mm | 2500 | 2500 | 2500 | 2500 | |
net weight | t | 16 | 17.5 | 19 | 20.5 |
Note: H* is the hoisting height benchmarked at the center of the bent axle.
