Weichai CW250 Series of Marine Diesel Engine 1103Kw-1960Kw

Weichai CW250 Series of Marine Diesel Engine 1103Kw-1960Kw thumbnail-1
Weichai CW250 Series of Marine Diesel Engine 1103Kw-1960Kw photo-1
US$ 5,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China Mainland
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Diesel
Cylinders 6
Engine Position Inboard
Dimensions (L x W x H) (mm) 3820*1400*2460mm
Product Description

 CW250 family is medium-speed marine diesel engine, adopting four strokes, in line configuration, water cooled system, supercharging system and inter-cooled technologies. It is independently designed, developed and manufactured by Weichai by absorbing advanced technology of its counterparts from both home and abroad. This family has advantages of compact structure, good reliability, high economic performance, easily operation and maintenance.



The CW250 series have passed the International Association Classification Society Certificates of CCS, ZY, ABS, GL, BV, DNV , RS and  LR.

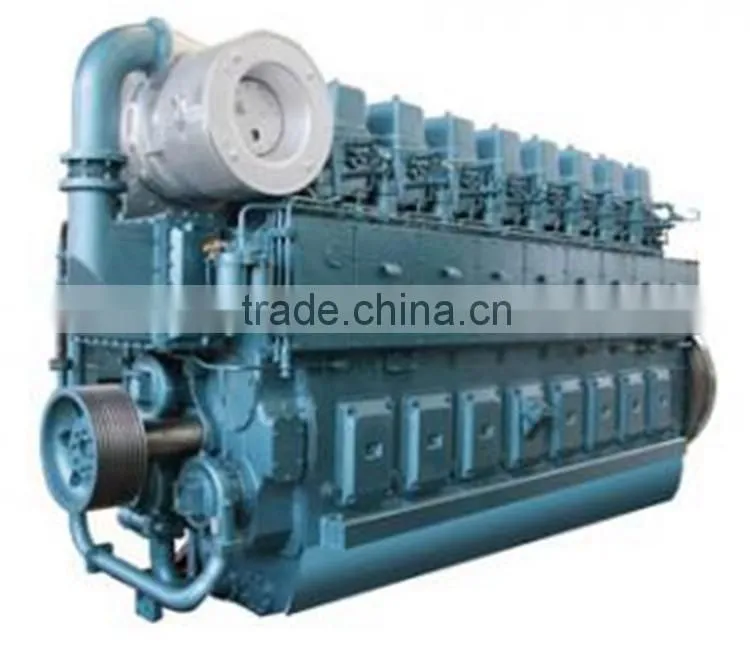

Weichai CW250 Series of Marine Diesel Engine 1103Kw-1960Kw

Product Application

 They supply ideal power solutions for passenger ships, transport vessels, fishing boats and engineering vessels. They can also be used as auxiliary engines for various vessels or prime power for land Genset and other power equipments.

Main Technical Data



tem Unit engine type
CW
6250
ZLC		 CW
6250
ZLC-2		 CW
6250
ZLC-1		 CW
6250
ZLC-3		 CW
6250
ZLC-1N
intake mode   turbocharged and intercooled
number of cylinders   6
bore X stroke mm 250×300
displacement L 88.36
compression ratio   13
rated power KW 1470 1323 1103 1103 1058
rated speed r/min 1000 900 750 750 720
min. fuel oil consumption g/(KW.h) ≤196
 lub oil and fuel consumption ratio g/(KW.h) ≤1.2
noise  dB ≤110
fuel    0#diesel,1500s heavy oil
minimum steady working speed r/min 400 360 300 300 288
start mode   air motor
net weight Kg 12000
rotation direction of crankshaft (seen from the free end)   clockwise counter clockwise
dimension A mm 3820
B mm 1400
C mm 2460

Note: ZLC means supercharge intercooling marine main engine, ZLD means supercharge intercooling marine marine auxiliaries

Item Unit engine type
CW8250ZLC CW8250ZLC-2 CW8250ZLC-1
intake mode   turbocharged and intercooled
number of cylinders   8
bore X stroke mm 250×300
 displacement L 117.81
compression ratio   13
rated power KW 1960 1760 1470
rated speed r/min 1000 900 750
min. fuel oil consumption g/(KW.h) ≤200
fuel consumption @ rated power g/(KW.h) ≤1.3
noise dB ≤110
fuel   0# diesel,1500s heavy oil
start mode   air motor
net weight Kg 15300
minimum steady working speed r/min 400 360 300
rotation direction of crankshaft (seen from the free end)   clockwise
dimension length A 4730 4600
width B 1400
height C 2500 2460

Note: ZLC means supercharge intercooling marine main engine, ZLD means supercharge intercooling marine marine auxiliaries
