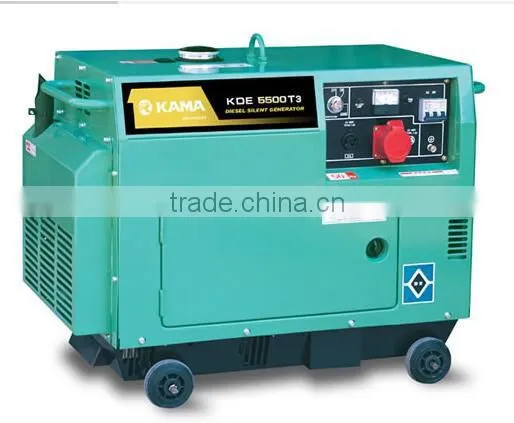

KAMA 5.25/6.25kva DC output Three phase small diesel generator silent type for sale
Main Data
Rated frequency(Hz) | 50 60 | |
Rated voltage(V) | 400/230 400/230 | |
Rated current(A) | 7.6 9.0 | |
Rated output power(kW) | 4.2 5.0 | |
Rated rotation speed(rpm) | 3000 3600 | |
DC output | None | |
Power factor(cos) | 0.8(Applied to KVA) | |
Phase number | Three phase | |
Noise level[dB(A)@7m] | 70~74 | |
Overall dimension(L*W*H)[mm(in)] | 910x530x740(35.82x20.87x29.13) | |
Dry weight[kg(ibs.)] | 165 | |
Structure type | Silent type | |
Coupling mode | Transmission shaft rigid coupling | |
Engine model | KM186F/E | |
Engine type | Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine | |
Displacement[ml(cu.in)] | 406(24.78) | |
Compression ratio | 19:1 | |
Rated power[kW(Hp)/rpm] | 5.7(7.75)/3000,6.3(8.57)/3600 | |
Starting system | 12V electric starter | |
Rotation direction(View from flywheel) | Clockwise | |
Fuel | 0# (summer),-10# (winter) light diesel oil | |
Lube | SAE10W30(above CC grade) | |
Low oil pressure alert system | With | |
Excitation mode | Self-excitation and constant voltage(AVR) |
Fuel capacity[L(gal.)] | 15(3.3) |
MODEL KDE5500T3
