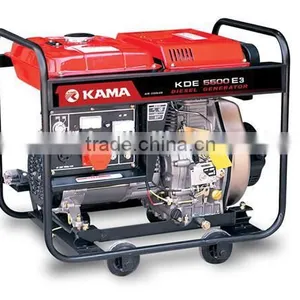

Help CenterKAMA 6.3kva DC Output Three Phase Small Diesel Generator Open Type for Sale
Related Products
-
KAMA 6.3kva DC Output Single Phase Small Diesel Generator Open Type for SaleUS$ 100 - 1,500MOQ: 1 Set -
KAMA 3.75kva DC Output Single Phase Small Diesel Generator Open Type for SaleUS$ 100 - 1,500MOQ: 1 Set
-
KAMA 3.75kva DC Output Single Phase Small Diesel Generator Silent Type for SaleUS$ 100 - 1,500MOQ: 1 Set
-
KAMA 3.75kva DC Output Single Phase Small Diesel Generator for SaleUS$ 100 - 1,500MOQ: 1 Set
-
KAMA 2.0kva DC Output Single Phase Small Diesel Generator for Sale Quality ChoiceUS$ 100 - 1,500MOQ: 1 Set

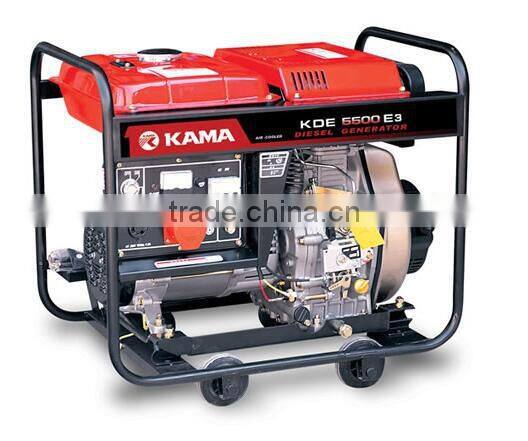

KAMA 6.3kva DC output Three phase small diesel generator open type for sale
Main Data
Rated frequency(Hz) | 50 60 | |
Rated voltage(V) | 400/230 400/230 | |
Rated current(A) | 6.1 7.2 | |
Rated output power(kW) | 4.2 5.0 | |
Rated rotation speed(rpm) | 3000 3600 | |
DC output | No | |
Power factor(cos) | 0.8(Applied to KVA) | |
Phase number | Three phase | |
Noise level[dB(A)@7m] | 72~77 | |
Overall dimension(L*W*H)[mm(in)] | 720x492x650(28.35x19.37x25.59) | |
Dry weight[kg(ibs.)] | 100(220) | |
Structure type | Open-frame type | |
Coupling mode | Transmission shaft rigid coupling | |
Engine model | KM186F/FE | |
Engine type | Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine | |
Displacement[ml(cu.in)] | 406(24.78) | |
Compression ratio | 19:1 | |
Rated power[kW(Hp)/rpm] | 5.7(7.75)/3000,6.3(8.57)/3600 | |
Starting system | X:Recoil starter E:electric starter | |
Rotation direction(View from flywheel) | Clockwise | |
Fuel | 0# (summer),-10# (winter) light diesel oil | |
Lube | SAE10W30(above CC grade) | |
Low oil pressure alert system | With | |
Excitation mode | Self-excitation and constant voltage(AVR) |
Fuel capacity[L(gal.)] | 12.5(2.75) |
MODEL KDE5500E3
