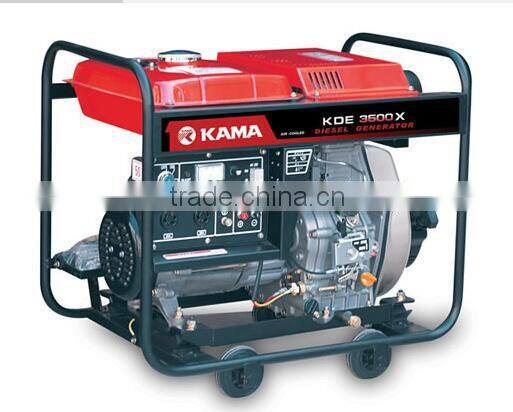

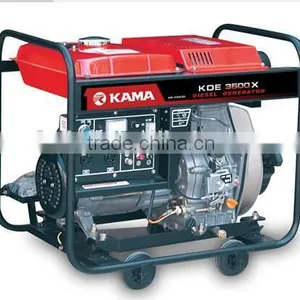

KAMA 3.75kva DC Output Single Phase Small Diesel Generator Open Type for Sale

Rated frequency(Hz)

50 60

Rated voltage(V)

230 230/115

Rated current(A)

12.2 13.0/26.1

Rated output power(kW)

2.8 3.0

Rated rotation speed(rpm)

3000 3600

DC output

12V 8.3A

Power factor(cos)

1.0

Phase number

Single phase

Noise level[dB(A)@7m]

72~77

Overall dimension(L*W*H)[mm(in)]

640x480x530(25.20x18.90x20.87)

Dry weight[kg(ibs.)]

65(143)

Structure type

Open-frame type

Coupling mode

Transmission shaft rigid coupling

Engine model

KM178F/E

Engine type

Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine

Displacement[ml(cu.in)]

296(18.06)

Compression ratio

20:1

Rated power[kW(Hp)/rpm]

3.7(5.03)/3000,4.0(5.44)/3600

Starting system

X:Recoil starter E:electric starter

Rotation direction(View from flywheel)

Clockwise

Fuel

0# (summer),-10# (winter) light diesel oil

Lube

SAE10W30(above CC grade)

Low oil pressure alert system

With

Excitation mode

Self-excitation and constant voltage(AVR)

Fuel capacity[L(gal.)]

   12.5(2.75)
