Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > KAMA 5.25/6.25kva DC Output Single Phase Small Diesel Generator Silent Type for Sale

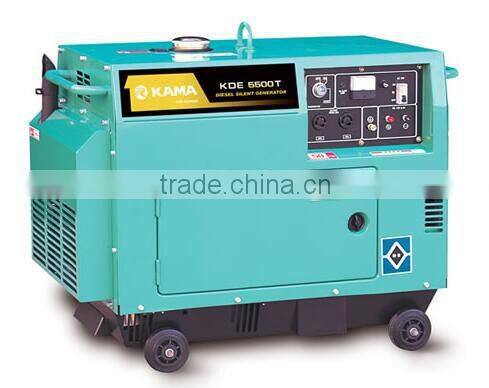

KAMA 5.25/6.25kva DC Output Single Phase Small Diesel Generator Silent Type for Sale
US$ 100 - 1,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KAMA
Model Number:
KDE5500T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shaihai or ther port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KAMA 6.3kva DC Output Three Phase Small Diesel Generator Open Type for SaleUS$ 100 - 1,500MOQ: 1 Set -
KAMA 6.3kva DC Output Single Phase Small Diesel Generator Open Type for SaleUS$ 100 - 1,500MOQ: 1 Set
-
KAMA 3.75kva DC Output Single Phase Small Diesel Generator Open Type for SaleUS$ 100 - 1,500MOQ: 1 Set
-
KAMA 3.75kva DC Output Single Phase Small Diesel Generator Silent Type for SaleUS$ 100 - 1,500MOQ: 1 Set
-
KAMA 3.75kva DC Output Single Phase Small Diesel Generator for SaleUS$ 100 - 1,500MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
KAMA
Model Number
KDE5500T
Output Type
DC
Speed
3000/3600rpm
Frequency
50HZ/60HZ
Rated Power
4.2 /5.0KW
Rated Voltage
230 230/115
Rated Current
18.3 21.7/43.4
KAMA 5.25/6.25kva DC output Single phase small diesel generator silent type for sale
Main Data
| Rated frequency(Hz) | 50 60 | |
| Rated voltage(V) | 230 230/115 | |
| Rated current(A) | 18.3 21.7/43.4 | |
| Rated output power(kW) | 4.2 5.0 | |
| Rated rotation speed(rpm) | 3000 3600 | |
| DC output | 12V 8.3A | |
| Power factor(cos) | 1.0 | |
| Phase number | Single phase | |
| Noise level[dB(A)@7m] | 70~74 | |
| Overall dimension(L*W*H)[mm(in)] | 910x530x740(35.82x20.87x29.13) | |
| Dry weight[kg(ibs.)] | 165(363) | |
| Structure type | Silent type | |
| Coupling mode | Transmission shaft rigid coupling | |
| Engine model | KM186F/E | |
| Engine type | Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine | |
| Displacement[ml(cu.in)] | 406(24.78) | |
| Compression ratio | 19:1 | |
| Rated power[kW(Hp)/rpm] | 5.7(7.75)/3000,6.3(8.57)/3600 | |
| Starting system | electric starter | |
| Rotation direction(View from flywheel) | Clockwise | |
| Fuel | 0# (summer),-10# (winter) light diesel oil | |
| Lube | SAE10W30(above CC grade) | |
| Low oil pressure alert system | With | |
| Excitation mode | Self-excitation and constant voltage(AVR) |
Fuel capacity[L(gal.)] | 15(3.3) |
MODEL KDE5500T
CONTACT:
Name: Elaine Zheng
Tel: 86-592-3686566
Mobile: +8618359108305
WhatsApp: +8618359108305
Skype: Homealine93
Wechat: Homelaine
