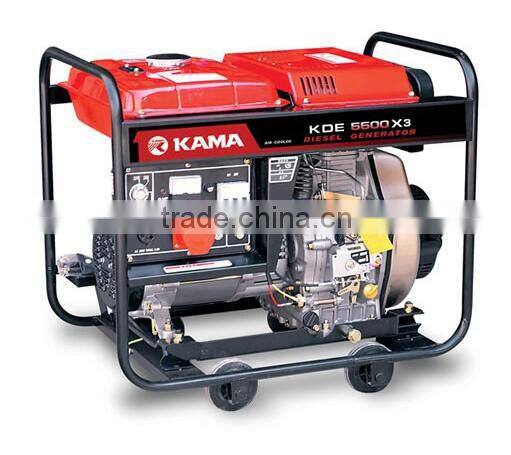

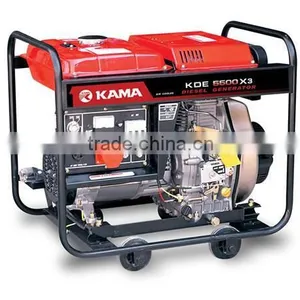

KAMA 5.25/6.25kva DC Output Three Phase Small Diesel Generator Open-frame Type for Sale

Rated frequency(Hz)

50 60

Rated voltage(V)

400/230 400/230

Rated current(A)

6.1 7.2

Rated output power(kW)

4.2 5.0

Rated rotation speed(rpm)

3000 3600

DC output

No

Power factor(cos)

0.8(Applied to KVA)

Phase number

Three phase

Noise level[dB(A)@7m]

72~77

Overall dimension(L*W*H)[mm(in)]

720x492x650(28.35x19.37x25.59)

Dry weight[kg(ibs.)]

100(220)

Structure type

Open-frame type

Coupling mode

Transmission shaft rigid coupling

Engine model

KM186F/FE

Engine type

Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine

Displacement[ml(cu.in)]

406(24.78)

Compression ratio

19:1

Rated power[kW(Hp)/rpm]

5.7(7.75)/3000,6.3(8.57)/3600

Starting system

X:Recoil starter E:electric starter

Rotation direction(View from flywheel)

Clockwise

Fuel

0# (summer),-10# (winter) light diesel oil

Lube

SAE10W30(above CC grade)

Low oil pressure alert system

With

Excitation mode

Self-excitation and constant voltage(AVR)

Fuel capacity[L(gal.)]

   12.5(2.75)
