KAMA 15.625kva Three phase small diesel generator silent type
USD $600 - $2,600
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- Shaihai or ther port in China
- T/T
You May Like
-
KAMA 15.625kva Single phase small diesel generator silent type
-
KAMA 15.625kva three phase small diesel generator
-
KAMA 15.625kva Single phase small diesel generator Open-frame type
-
KAMA 5.75/9.375kva Three phase small diesel generator Open-frame type
-
KAMA 5.75/6.5kva DC output Single phase small diesel generator open type
-
KAMA 6.25/6.875kva Three phase small diesel generator Silent type
Quality Choice
Product Details
| Place of Origin | Jiangsu, China | Brand Name | KAMA | |
| Model Number | KDE15T3 | Speed | 3000/3600rpm | |
| Frequency | 50HZ/60HZ | Rated Power | 12.5 | |
| Rated Voltage | 400/230 | Rated Current | 18.1 |
Product Description

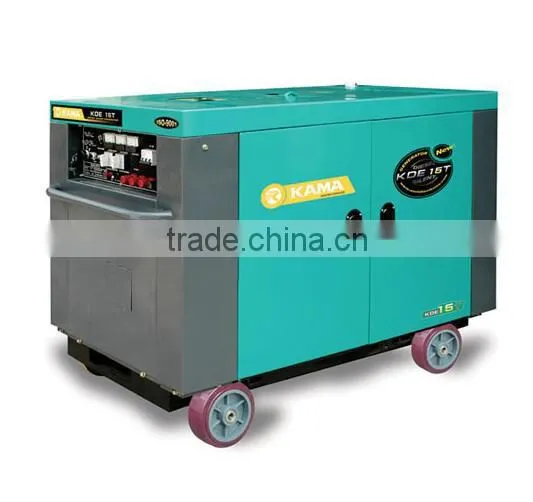

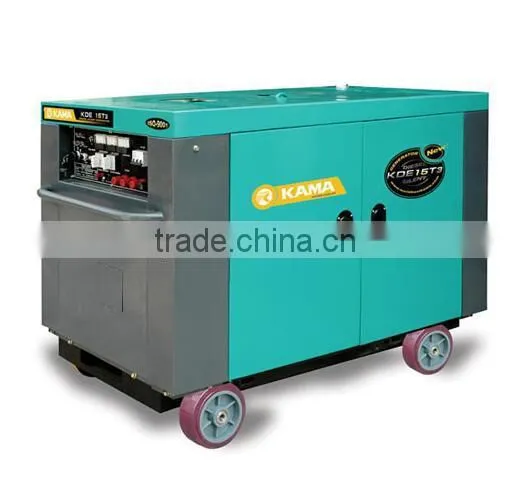

KAMA 15.625kva Three phase small diesel generator silent type
Main Data
| Rated frequency(Hz) | 50 60 | |
| Rated voltage(V) | 400/230 400/230 | |
| Rated current(A) | 18.1 18.1 | |
| Rated output power(KW) | 12.5 12.5 | |
| Max output power(KW) | 14 14 | |
| Rated otation speed(rpm) | 3000 3600 | |
| Power factor(cos) | 0.8(Applied to KVA) | |
| Phase number | Three phase | |
| Excitation mode | Self-excitation and constant voltage(AVR) | |
| Overall dimension(LxWxH)[mm(in)] | E:1270x830x940(50.00x32.68x37.01)T:1660x730x1020(65.35x28.74x40.16) | |
| Dry weigt[kg(ibs.) | E:360(792),T:455(1001) | |
| Structure type | E:Open-frame type T:Silent type | |
| Engine model | KM380G | |
| Rated power[kW(Hz)/rpm] | 21(28.56)/3000,21(28.56)/3600 | |
| Engine type | Three cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine | |
| Bore*stroke[mm(in)] | 80x90(3.15x3.54) | |
| Compression ratio | 18:1 | |
| Total displacement[L(cu.in)] | 1.357(82.81) | |
| Fuel consumption at full load[g(ml)/kW.h] | <245(291) | |
| Starting system | 12V electric starter | |
| Fuel | 0#(summen)-10#(winter)light diesel oil | |
| Cooling system | Forced water-cooled circulation | |
| Lube Capacity[L(gal.)] | 38(8.36) | |
| Lube | LECD grade 15W40 |
MODEL KDE15T3
