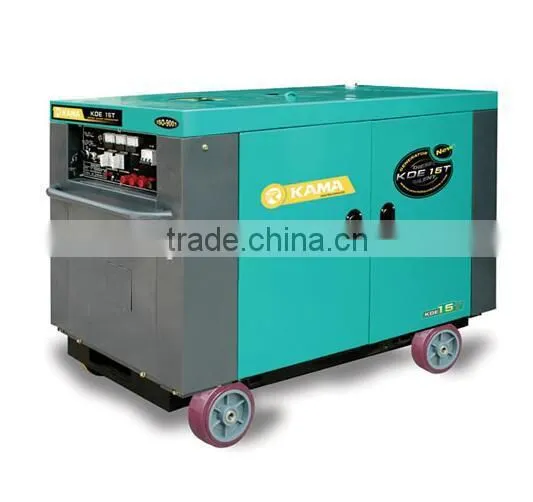

KAMA 15.625kva Single phase small diesel generator silent type

Rated frequency(Hz)

50 60

Rated voltage(V)

230 230

Rated current(A)

54.3 54.3

Rated output power(KW)

12.5 12.5

Max output power(KW)

14 14

Rated otation speed(rpm)

3000 3600

Power factor(cos)

1

Phase number

Single phase

Excitation mode

Self-excitation and constant voltage(AVR)

Overall dimension(LxWxH)[mm(in)]

E:1270x830x940(50.00x32.68x37.01)T:1660x730x1020(65.35x28.74x40.16)

Dry weigt[kg(ibs.)

E:360(792),T:455(1001)

Structure type

E:Open-frame type T:Silent type

Engine model

KM380G

Rated power[kW(Hz)/rpm]

21(28.56)/3000.21(28.56)/3600

Engine type

Three cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine

Bore*stroke[mm(in)]

80x90(3.15x3.54)

Compression ratio

18:1

Total displacement[L(cu.in)]

1.357(82.81)

Fuel consumption at full load[g(ml)/kW.h]

<245(291)

Starting system

12V electric starter

Fuel

0#(summen)-10#(winter)light diesel oil

Cooling system

Forced water-cooled circulation

Lube Capacity[L(gal.)]

38(8.36)

Lube

LECD grade 15W40
