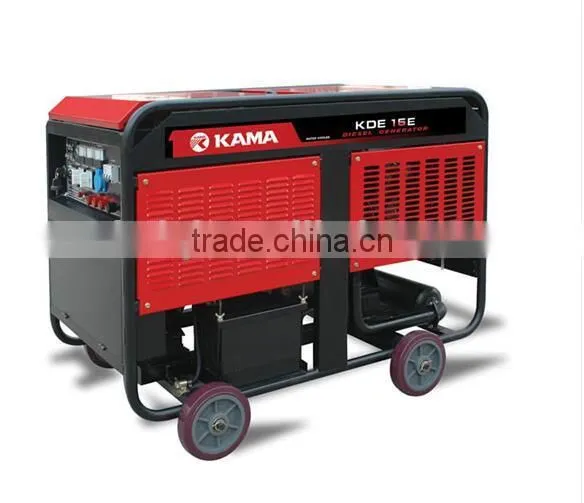

KAMA 15.625kva Single phase small diesel generator Open-frame type
Main Data
Rated frequency(Hz) |
50 60 |
|
Rated voltage(V) |
230 230 |
|
Rated current(A) |
54.3 54.3 |
|
Rated output power(KW) |
12.5 12.5 |
|
Max output power(KW) |
14 14 |
|
Rated otation speed(rpm) |
3000 3600 |
|
Power factor(cos) |
1 |
|
Phase number |
Single phase |
|
Excitation mode |
Self-excitation and constant voltage(AVR) |
|
Overall dimension(LxWxH)[mm(in)] |
E:1270x830x940(50.00x32.68x37.01)T:1660x730x1020(65.35x28.74x40.16) |
|
Dry weigt[kg(ibs.) |
E:360(792),T:455(1001) |
|
Structure type |
E:Open-frame type T:Silent type |
|
Engine model |
KM380G |
|
Rated power[kW(Hz)/rpm] |
21(28.56)/3000.21(28.56)/3600 |
|
Engine type |
Three cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine |
|
Bore*stroke[mm(in)] |
80x90(3.15x3.54) |
|
Compression ratio |
18:1 |
|
Total displacement[L(cu.in)] |
1.357(82.81) |
|
Fuel consumption at full load[g(ml)/kW.h] |
<245(291) |
|
Starting system |
12V electric starter |
|
Fuel |
0#(summen)-10#(winter)light diesel oil |
|
Cooling system |
Forced water-cooled circulation |
|
Lube Capacity[L(gal.)] |
38(8.36) |
|
Lube |
LECD grade 15W40 |
MODEL KDE15E
