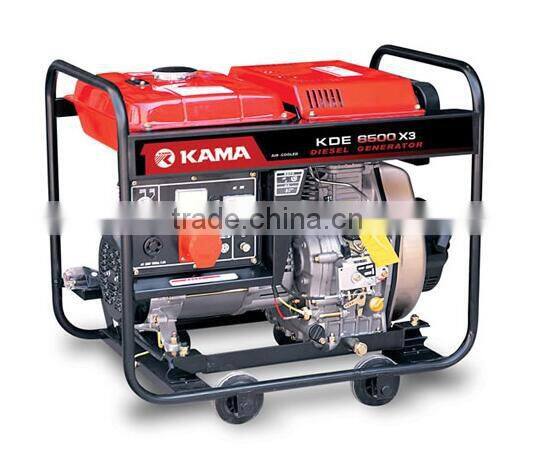

KAMA 5.75/9.375kva Three Phase Small Diesel Generator Open-frame Type

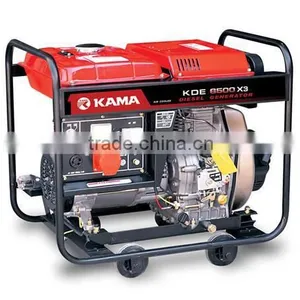

KAMA 5.75/9.375kva Three Phase Small Diesel Generator Open-frame Type thumbnail-1
KAMA 5.75/9.375kva Three Phase Small Diesel Generator Open-frame Type photo-1
US$ 100 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KAMA
Model Number:
KDE6500X3
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shaihai or ther port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name KAMA
Model Number KDE6500X3
Speed 3000/3600rpm
Frequency 50HZ/60HZ
Rated Power 4.6 /5.2KW
Rated Voltage 400/230 400/230
Rated Current 6.7/ 7.5



KAMA 5.75/9.375kva Three phase small diesel generator Open-frame type





Main Data



Rated frequency(Hz)



50 60

Rated voltage(V)



400/230 400/230

Rated current(A)



6.7 7.5

Rated output power(kW)



4.6 5.2

Rated rotation speed(rpm)



3000 3600

DC output



No

Power factor(cos)



0.8(Appliced to KVA)

Phase number



Three phase

Noise level[dB(A)@7m]



74~77

Overall dimension(L*W*H)[mm(in)]



720x492x650(28.35x19.37x25.59)

Dry weight[kg(ibs.)]



100(220)

Structure type



Open-frame type

Coupling mode



Transmission shaft rigid couping

Engine model



KM186FAE

Engine type



Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine

Displacement[ml(cu.in)]



418(25.51)

Compression ratio



19:1

Rated power[kW(Hp)/rpm]



5.9(8.02)/3000,6.5(8.84)/3600

Starting system



12V electric starter

Rotation direction(View from flywheel)



Clockwise

Fuel



0# (summer),-10# (winter) light diesel oil

Lube



SAE10W30(above CC grade)

Low oil pressure alert system



With

Excitation mode



Self-excitation and constant voltage(AVR)

Fuel capacity[L(gal.)]



   12.5(2.75)



 MODEL  KDE6500X3

KAMA 5.75/9.375kva Three phase small diesel generator Open-frame type





KAMA 5.75/9.375kva Three phase small diesel generator Open-frame typeKAMA 5.75/9.375kva Three phase small diesel generator Open-frame typeKAMA 5.75/9.375kva Three phase small diesel generator Open-frame type
