Home > Products > Diesel Generator Set > KAMA 18.75kva Three phase small diesel generator silent type

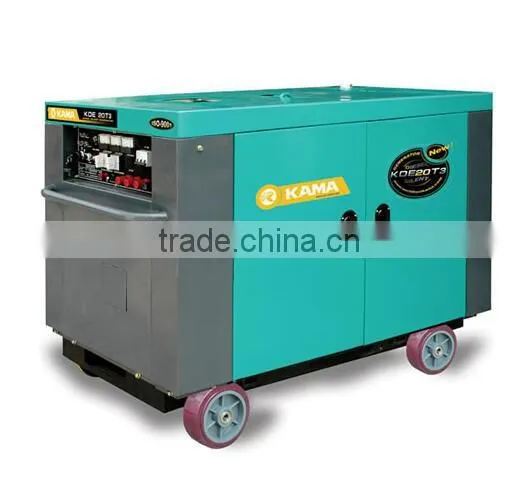

KAMA 18.75kva Three phase small diesel generator silent type

Name: KAMA 18.75kva Three phase small diesel generator silent type
Brand: KAMA
Availability: InStock

FOB Price

USD $800 - $3,000 / Acre

1 Acre(Min.Order)

Supply Ability 50 Acre / Acres per Month
Port Shaihai or ther port in China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	KAMA
Model Number	KDE 20T3	Speed	3000/3600rpm
Frequency	50HZ/60HZ	Rated Power	15KW
Rated Voltage	400/230V	Rated Current	21.7A

Product Description

KAMA 18.75kva Three phase small diesel generator silent type

Main Data

Rated frequency(Hz)		50 60
Rated voltage(V)		400/230 400/230
Rated current(A)		21.7 21.7
Rated output power(KW)		15 15
Max output power(KW)		16.5 16.5
Rated otation speed(rpm)		3000 3600
Power factor(cos)		0.8(Applied to KVA)
Phase number		Three phase
Excitation mode		Self-excitation and constant voltage(AVR)
Overall dimension(LxWxH)[mm(in)]		E:1270x830x940(50.00x32.68x37.01)T:1660x730x1020(65.35x28.74x40.16)
Dry weigt[kg(ibs.)		E:360(792),T:455(1001)
Structure type		E:Open-frame type T:Silent type
Engine model		KM380G
Rated power[kW(Hz)/rpm]		21(28.56)/3000.21(28.56)/3600
Engine type		Three cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine
Bore*stroke[mm(in)]		80x90(3.15x3.54)
Compression ratio		18:1
Total displacement[L(cu.in)]		1.357(82.81)
Fuel consumption at full load[g(ml)/kW.h]		<245(291)
Starting system		12V electric starter
Fuel		0#(summen)-10#(winter)light diesel oil
Cooling system		Forced water-cooled circulation
Lube Capacity[L(gal.)]		38(8.36)
Lube		LECD grade 15W40

MODEL KDE 20T3
