Since the establishment in 2002, our Shuangsheng brand has obtained good reputation from customers at home and abroad, our small sized series injection molding machines are featured with small, precise, professional and stable.
Machines size ranges from 25Tons to 168Tons, with injection weight from 20g to 400g, the machines are widely applied to produce small precise gears, masterbatch or pigment color chips, PVC fittings, PET preforms, bottle caps, bowls, plastic toys such as Barbie, cars, eletrical junction boxes, sockets, nylon zip ties and other plastic products that of injection weight within 400Grams.
Shuangsheng SSF-series small injection molding machine is a strong open platform, which can meet the customer's special request, like adding special features so as to suit all kinds of process techniques.
In order to provide good service to customers, we have established good cooperation with mold and auxiliaries supplier, they can provide the best quality molds, hopper dryer,chiller,autoloader,crusher for you, that works on well with our machines.
1.Main products;
A.Fixed pump injection molding machine(SSF-K5)
B.Servo motor energy saving injection molding machines(SSF-S)
C.Special purpose machine for lab test, of which is the first choice for masterbatch and pigment manufacturers.
D.Product range:25Ton~168Ton
2. Advantage:
Strong Technical design ability, Stable quality, and large production capability, Famous brand.
3. Machine description:

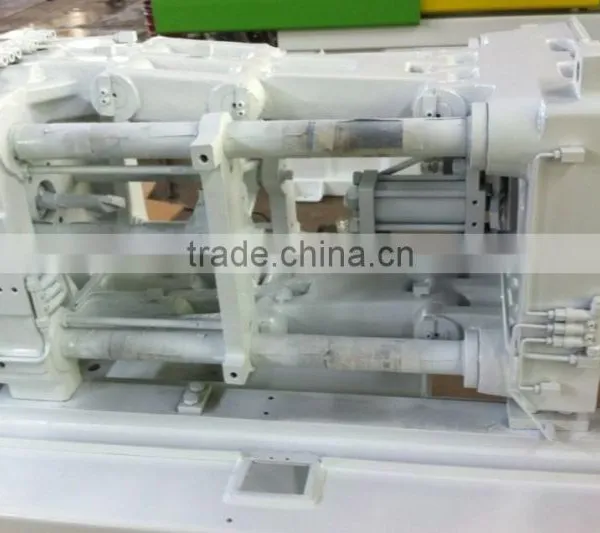

Clamping unit
Five-point inward moving toggle system ensure high rigidity and precision for mold clamping and also reducing stress and stain effects;
The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime

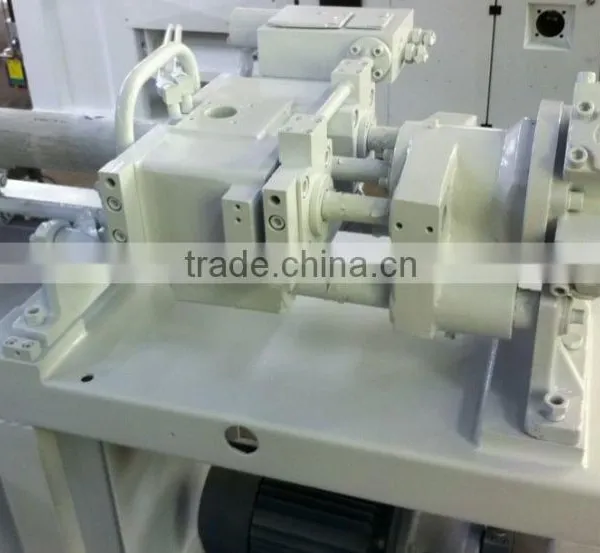

Injection unit
A wide variety of screws are available for different polymer processing requirements. Special engineering materials are used to manufacture the screws to ensure optimal quality and processing life;
The injection unit incorporates a dual-pillar supporting system with balanced twin cylinder injection unit for evenly distributed force and rapid screw motion;
Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering;
High quality nitride or chrome plated alloy screw with a nitrogen-treated barrel provided anti corrossion with high wear resistance for an extended working life.

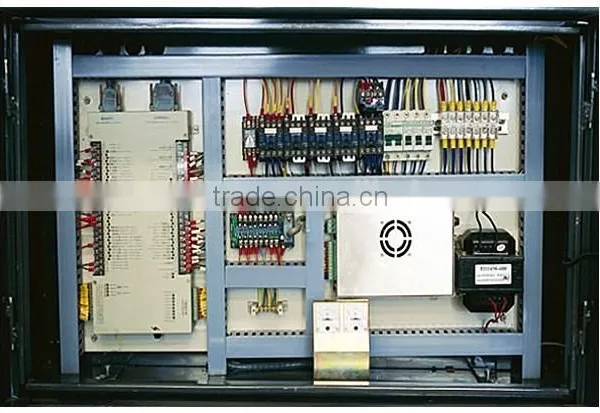

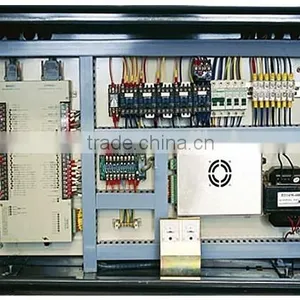

Electrical and hydraulic components;
Major hydraulic components and seals are sourced from world famous manufacturers providing high reliability and interchangeability.
Controller is from Techmation, with multiple language for selection, of including but not limited English, Spanish,Turkish,Persian,russia and etc.
Lubrication system;
The toggle system uses oil-sleeve bushes lubricated by an automatically control central lubrication unit which provides excellent lubrication quality to all points and extends the clamping unit working life.
There are 2 type of lubrication agent, one is lubrication grease, the other is lubrication oil, per customer's final products requirements, medical parts prefer to use lubrication oil to avoid any contamination.
Motors and pumps;
We have 2 series injection molding machine, one is fixed pump, the other is servo motor.
Fixed pump machine is a traditional machine enjoys the features of stable, servo motor enjoys the advantanges of energy saving.
Low noise, below 78db, servo motor almost has no noice when no movement of machine.
Small plastic parts that can be made by SSF380-K5 machine but not limited
On how to select a suitable machine?
If you don't know how to choose the best machine for you, please give us below informations, we will recommend the most suitable machine for you?
1.Product size and weight;
2.Raw material to be used;
3.Mold cavities or mold size;
4.Hourly capacity requirements.

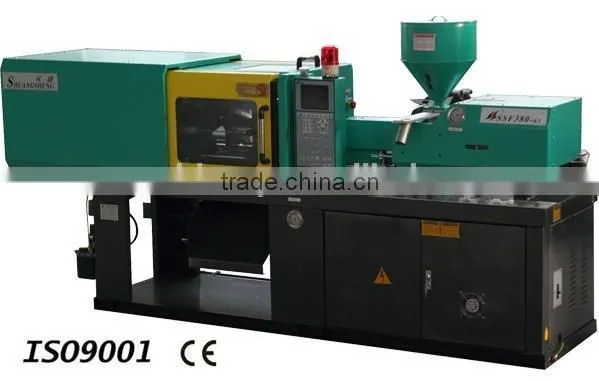

The Main Technical Parameters of SSF380-K5 color chips making injection molding machines are as below;
| Items | Parameter | Unit | Parameter Value (SSF380-K5) |
| Injection Unit | Screw diameter | mm | 27 |
| Screw L/D ratio | L/D | 18.4 | |
| shot volume(theoretical) | Cm3 | 48 | |
| injection weight(PS) | g | 44 | |
| injection rate | g/s | 35 | |
| injection pressure | Mpa | 187 | |
| screw speed | rmp | 170 | |
| Clamping unit | clamp force | KN | 380 |
| open stroke | mm | 235 | |

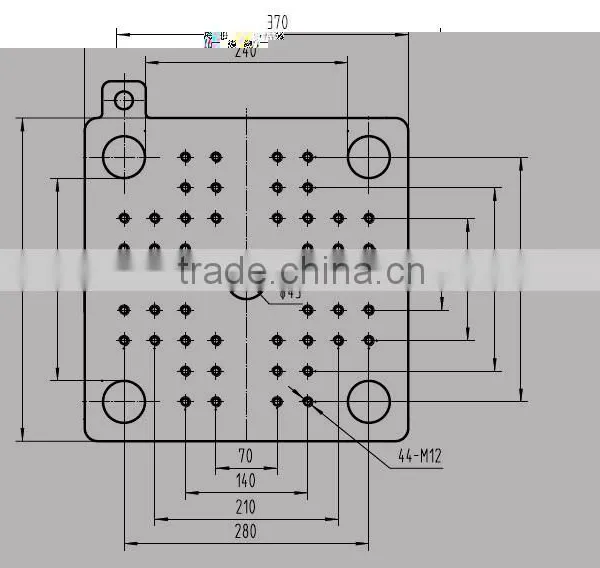

| distance between tie bars (W*H) | mm | 240*240 | |
| max mould thickness | mm | 270 | |
| min mould thickness | mm | 80 | |
| ejector stroke | mm | 60 | |
| ejector force | KN | 17.5 | |
| ejector number | PC | 1 | |
| dia of mould location hole | mm | 80 | |
| Others | max pump pressure | Mpa | 14 |
| pump motor power | KW | 4 | |
| heating power | KW | 3.2 | |
| machine dimension | m | 2.9*1.0*1.4 | |
| machine weight | T | 1.35 | |
| oil tank capacity | L | 90 |
If you have any query about our injection molding machine, just contact me at any time
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
