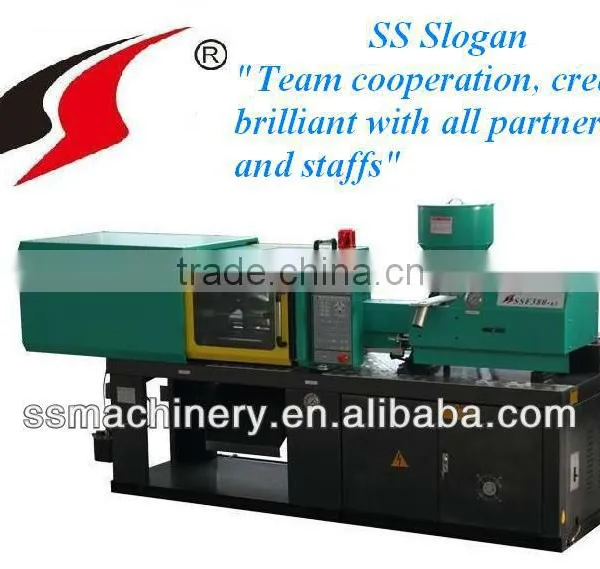

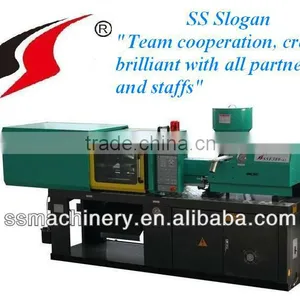

38T small plastic injection molding machine
We supply all kinds of injection molding machines from 25T to 3000T, including color chips making machines, energy saving injection molding machines, gears making machines, dual clear color injection molding machine bakelite injection molding machines, PET preform injection molding machines, Fixed pump and variable pump injection molding machines, PVC fitting injection molding machines and etc.
Main techincal datas of 38T small plastic machinery as below;
| Items | Parameter | Unit | Parameter Value (SSF380-K5) | |
| Injection Unit | Screw diameter | mm | A | B |
| 27 | 30 | |||
| Screw L/D ratio | L/D | 18.4 | 16.5 | |
| shot volumn (theoretical) | Cm3 | 48 | 58 | |
| injection weight(PS) | g | 44 | 53 | |
| plasticizing capacity | g/s | 4.3 | 5.9 | |
| injection rate | g/s | 35 | 43 | |
| injection pressure | Mpa | 187 | 151 | |
| screw speed | rmp | 170 | ||
| Clamping unit | clamp force | KN | 380 | |
| open stroke | mm | 235 | ||
| space between bars (W*H) | mm | 240*240 | ||
| max mould height | mm | 270 | ||
| min mould height | mm | 80 | ||
| ejector stroke | mm | 60 | ||
| ejector force | KN | 17.5 | ||
| ejector number | PC | 1 | ||
| mould align diameter | mm | 80 | ||
| Others | max pump pressure | Mpa | 14 | |
| pump motor power | KW | 4 | ||
| heating power | KW | 3.2 | ||
| machine dimension | m | 2.9*1.0*1.4 | ||
| machine weight | T | 1.35 | ||
| oil tank capacity | L | 90 | ||
SS brand plastic machinery features;
1.Double-cylinder balanced injection system;
2.Multi-stage pressure &speed injection;
3.Back pressure adjustment device;
4.Low pressure mold protection;
5.Single hydraulic core pulling and inserting;
6.Multiple hydraulic ejector knock-out;
7.Mechanical, electrical safety device;
8.Auto lubrication system;
9.Hydraulic pressure full proportional control;
10.Computer control system;
11.Molding data memory system;
12.Automatic mould adjust function.
13.Energy saving with variable pump;
14.Bi-metallic screw to anti-corrosion, which is applicable to nylon or glass material.
15.Five-point inward moving toggle system ensure high rigidty and precision for mold clamping and also reducing stress and stain effects;
16.Oil pipelines are positioned for aesthetic appearance and easy for maintenance;
17.The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime;
18.Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering.
We make injection molding machines strictly follow ISO9001:2008 quality requirements, per customers's special requirements, CE also can be optional.
The injection machine cover is professionally painted with uniform color,.
Casting mold plate with robust structure to ensure machine rigidity;
We shuangsheng plastic machinery respects staffs and values partnership of each customer, each cooperators, that why we can grow smoothly and steadily even the international ecomonic situation is not so optimistic.
The orgnization chart of our company, average working life of the staffs is 8 years.
Organization Chart
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
