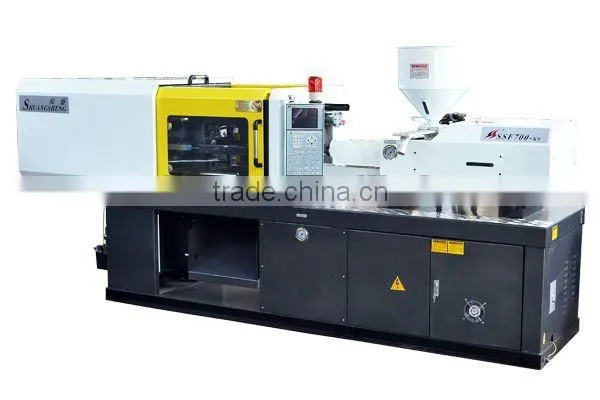

Injection Moulding Machine of Clamp Force 700KN

Injection Moulding Machine of Clamp Force 700KN thumbnail-1
Injection Moulding Machine of Clamp Force 700KN photo-1
US$ 1 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, PLASTIC MACHINE
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Ningbo Shuangsheng Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, PLASTIC MACHINE
Place of Origin Zhejiang, China
Brand Name SS
Model Number SSF700-K5
Voltage 380V
Power(W) 50HZ
Dimension(L*W*H) 3.6m*1.2m*1.65m
Weight 2.2
Certification CE
Warranty One year
After-sales Service Provided Overseas third-party support available
Items Parameter Unit Parameter Value (SSF700)
Injection Unit Screw diameter mm A B
34 36
Screw L/D ratio L/D 18.8 17.7
shot volumn (theoretical) Cm3 113 127
injection weight(PS) g 103 115
plasticizing capacity g/s 11.6 13
injection rate g/s 86 96
injection pressure Mpa 171 153
screw speed rmp 180
Clamping unit clamp force KN 700
open stroke mm 270
space between bars (W*H) mm 315*300
max mould height mm 320
min mould height mm 150
ejector stroke mm 80
ejector force KN 27
ejector number PC 1
mould align diameter mm 100
Others max pump pressure Mpa 16
pump motor power KW 7.5
heating power KW 5.1
machine dimension m 3.6*1.2*1.65
machine weight T 2.2
oil tank capacity L 130



Standard features;

Double-cylinder balanced injection system;

Multi-stage pressure &speed injection;

Back pressure adjustment device;

Low pressure mold protection;

Single hydraulic core pulling and inserting;

Multiple hydraulic ejector knock-out;

Mechanical, electrical safety device;

Auto lubrication system;

Hydraulic pressure full proportional control;

Computer control system;

Molding data memory system;

Automatic mould adjust function.





Optional auxiliary

Robot system

Hopper dryer

Auto loader

Hopper Magnet

Mold clamps

Water cooler

Plastic dehumidizer

Mold temperature controller

Oil temperature controller

Oil bypass filter



Warranty;1 year



Spare parts;

1.Nozzle

2.Lubricate oil

3.Seal rings(5pcs)

4. Tool box

5. Other tools such as spanner, straight screwdrivers;

6. Crash pad
