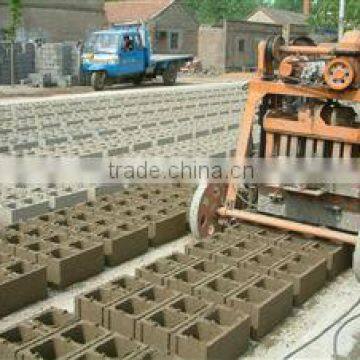

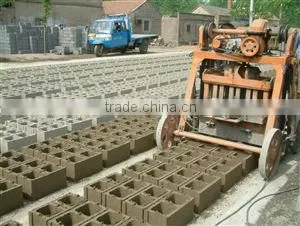

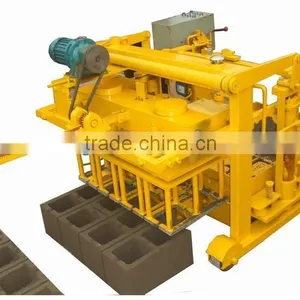

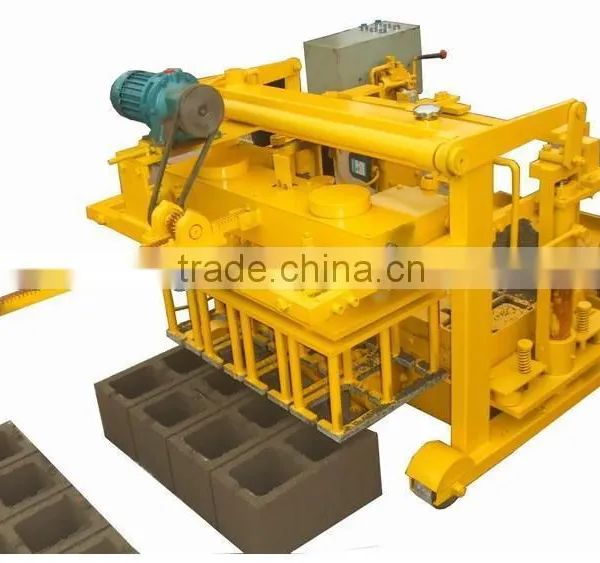

QT3-15 Block Machine
US$ 46,050 - 46,055
/ Set
1 Set(Min. Order)
- QINGDAO/LIANYUNGANG
- T/T
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Production Line | |
| Method | Autoclaved Aerated Concrete | Automatic | Yes | |
| Capacity | 4/15s | Place of Origin | Shandong, China | |
| Brand Name | shining asia | Model Number | QT3-15 | |
| Voltage | 380V | Power | 29.4KW | |
| Dimension(L*W*H) | 3700X1500X2510 | Certification | ISO9002 | |
| Warranty | 3years | After-sales Service Provided | Overseas third-party support available |
Product Description
| QT style Block/Brick Production Line | Qty | QT4-15 | |||
| Capacity | No. | Size | —— | Pcs/mould | Pcs/ 8 Hr |
| 1 | 400x200x100 | — | 7 | 10080 | |
| 2 | 400x200x150 | — | 5 | 7200 | |
| 3 | 400x200x200 | — | 4 | 5760 | |
| System | No. | Configuration | Qty | style | Unit price |
| Batching and mixer system | 1 | Batching Machine | 1 set | PL1200 | 5,600 |
| 2 | Concrete Mixer | 1 set | JS500 | 5,655 | |
| 3 | Conveying machine(belt) | 1 set | L=7M | 1,200 | |
| 4 | Batching and mixing control system | 1 set | include | ||
| Amount | 12,455 | ||||
| Forming system | 5 | QT Forming machine ( include free one mould) | 1 set | QT4-15 | 29,500 |
| 6 | feeding machine | 1 set | included | ||
| 7 | Pallets Feeder | 1 set | included | ||
| 8 | Brick Conveyor Machine | 1 set | included | ||
| 9 | Hydraulic unit | 1 set | included | ||
| 10 | Clean machine | 1 set | included | ||
| 11 | Automatic control system | 1 set | included | ||
| 12 | Electricity box | 1 set | included | ||
| Amount | 29,500 | ||||
| stacking System | 15 | Stacker | 1 set | 4,100 | |
| 16 | Stacker Electricity box | 1 set | |||
| Amount | 4,100 | ||||
| Amount | 46,055 | ||||
| Note: | |||||
| 1) Loading : need 2 x 40'HQ to fit whole production line. | |||||
| 2) Delivery Time: 20~30 days | |||||
| 3) Install & Test : One technician will be dispatched to install, test and train matters, the cost for technician is USD50 per day. The installation time is 20 days to 30 days. | |||||
| 4) Payment: 30% as down payment paid by T/T , 70% as the balance paid by T/T. | |||||
| 5) Guarantee: under one year. For fault which will effect normal production, the buyer should send picture and video of it, then seller will check and confirm the resposibilty belong to which part. If it's fault of machine itself, the buyer should repair for free, and buyer should responsible of techinican's accommodation. If not, the buyer should pay round-trip ticket, accommodation and USD100 per day for techinician. | |||||
| Main Technical Specifications | |||
| 400x200x200mm 4pcs/time 5760pcs/8hrs | |||
| Power | 29.4KW | ||
| Forming Time | 15 seconds | ||
| Overall Size | 3700x1500x2510mm | ||
| Vibration Force | 100KN | ||
| Pallet Size | 900x500x30mm | ||
| Vibration Frequency | 45~75Hz | ||
| Rated Pressure | 16MPa | ||
| PART 1 : PL1200 Batching Machine | |||
| Capacity of Compound Material Box (L) | 1200L | ||
| Capacity of Raw Material Box (L) | 3500*2 | ||
| Output Capacity | 60m3/h | ||
| Proportion of Grain Material | ±1% | ||
| Scale Range of Weighting (KG) | 250~2000L | ||
| Variety of Raw Material | 3 | ||
| Height of Material Feeding (mm) | 2300 | ||
| Speed of Material Conveying (m/s) | 1 | ||
| Max. Diameter of Aggregate (mm) | ≤60 | ||
| Rated Power (kw) | 3*2.2=6.6kw | ||
| Weight of Machine (kg) | 2900kg | ||
| Overall Size (mm) | 8100x1722x3200 | ||
| PART 2 : JS500 CONCRETE MIXER | |||
| Volume of Input Material | 800L | ||
| Volume of Output Material | 500L | ||
| Productivity (m3/h) | >=28 | ||
| Maximum Grain Size of Material (mm) | 80/60 | ||
| Number of Stirring Blades | 2x8 | ||
| Rev of Stirring Blades (r/min) | 23 | ||
| Power of Stirring Motor (kw) | 15 | ||
| Power of Windlass Motor (kw) | 5.5 | ||
| Power of water pump (kw) | 1.1 | ||
| The upgrade speed of hopper (m/s) | 0.32 | ||
| Specification ( Lx Wx H) (mm) | 3400x2250x4360 | ||
| Weighth (kg) | 3800 | ||
