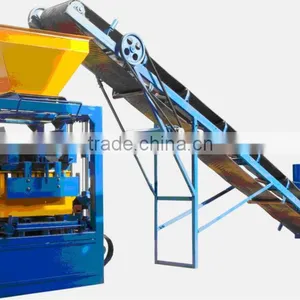

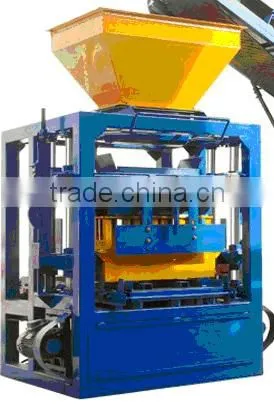

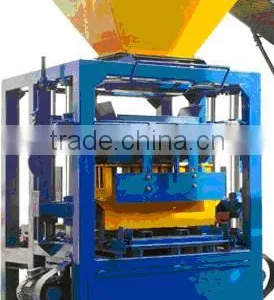

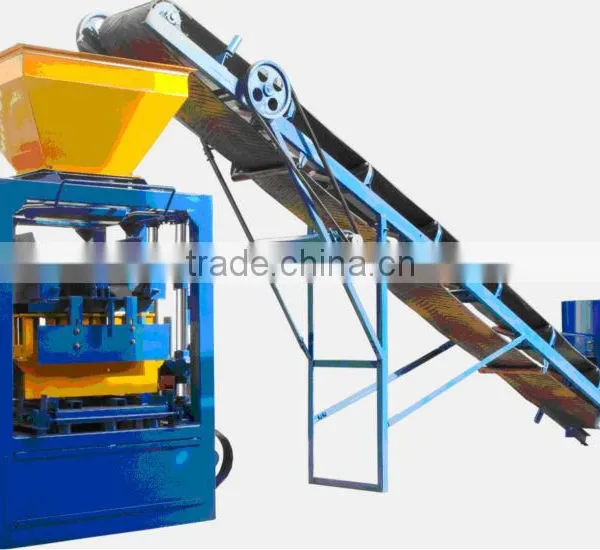

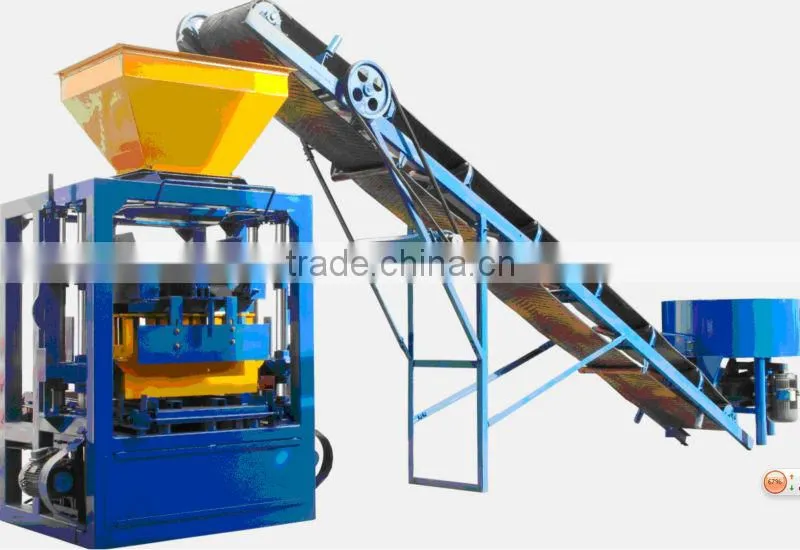

QT4-26 Block Making Machine Price and Information
Date:2013-10-30
(1). Price List
Item |
|
Quantity |
Price:USD |
Host machine |
1 set |
Total price 6500USD EXW |
|
JD350 Mixer |
1set |
||

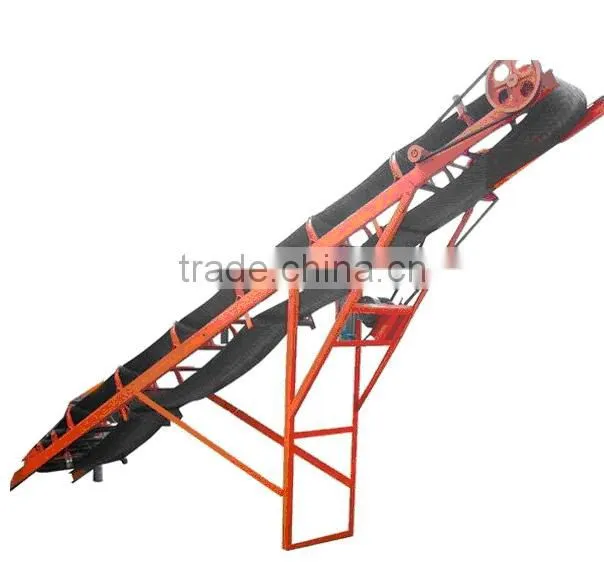

Belt Conveying machine |
1 set |
||
control unite |
Free |
||
One block mould |
Free |
||
Two manual cars |
|
Free |
|
spare parts |
|
Free |
|
Extra Paver /Interlocking Block mould |
|
1 set |
1350USD |
Extra hollow block mould |
|
1 set |
600USD |
(2).Price Terms
1.this price is the EXW price: 8450USD
2.Payment terms: 30% as deposit paid by T/T, 70% as the balance paid by T/T before loading
3.Validity: two weeks
4.Delivery: 30 days upon receipt of down payment.
(3). QT4-26 Block machine main technical parameters
Dimension of host machine |
2060×1730×2580mm |
Host machine power |
11.2KW |
Voltage |
380V |
Vibration force |
35.5KN |
Moulding period |
26S |
Capacity |
18.8KW |
The size of the pallet |
850×550×40mm |
Mixer model |
JD350 |
Weight of the machine |
3T |
|
|
Theoretical workshop area : 60 m2, need about 4-5workers .the office , curing area and stacking area to arrange according your fact status.
(4).QT4-26 Block machine production capacity
QT4-26 Theoretical Production capacity | |||
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
400X100X200 |
7 |
550-700 |
4400-5600 |
400X150X200 |
5 |
400-500 |
3200-4000 |
400X200X200 |
4 |
310-400 |
2480-3200 |
400X250X200 |
3 |
230-280 |
1840-2240 |

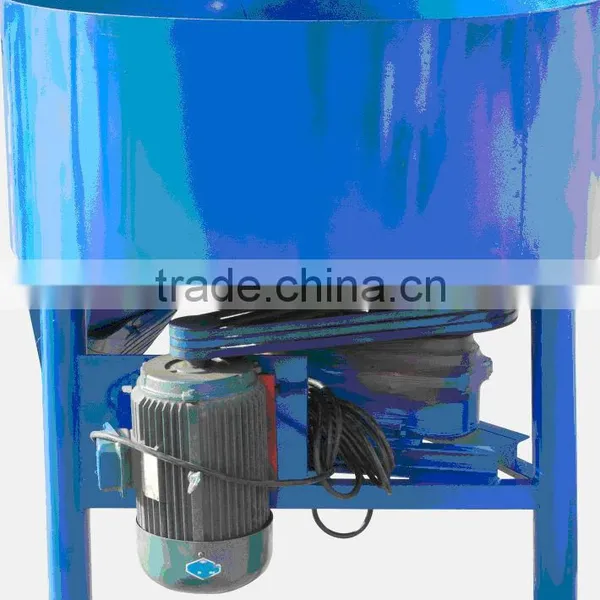

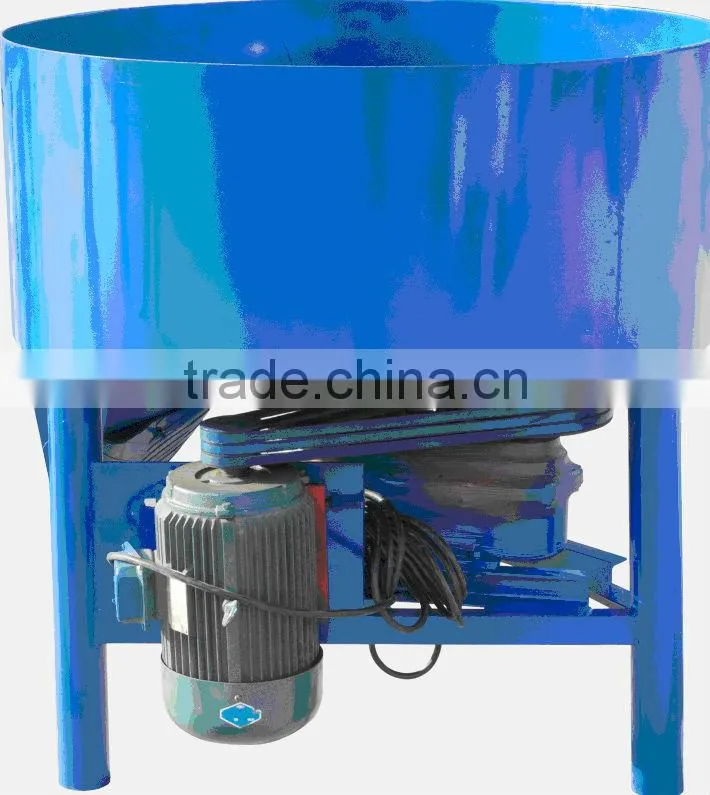

(5).JD350 Mixer parameter
Maim Technical Specifications | |
Discharging capacity |
0.35 m3 |
Feeding capacity |
0.56 m3 |
Productivity |
≥4m3/h |
Max. aggregates diameter |
80mm |
Mixer power |
7.5 KW |
Diameter |
1200mm |
Wegiht |
0.52Ton |
