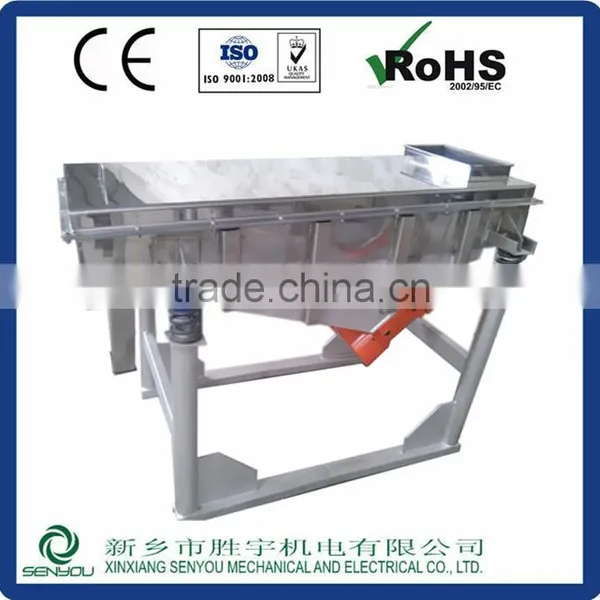

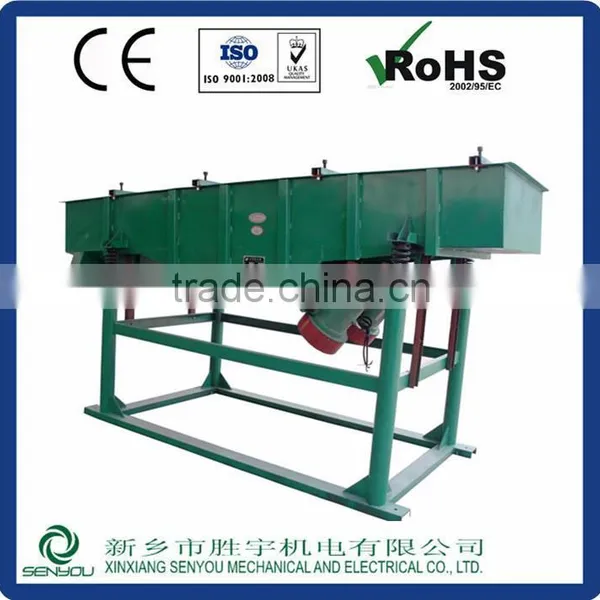

SYZX linear type vibrating shaker for aluminum powder
Production Introduction
SYZX linear type vibrating shaker for aluminum powder uses double electric
motors as the power source,and makes materials do linear movement,can beequippedwith single or multilayer mesh to achieve purpose ofrating,dehydration, remove
impurities and inspection,has function of classificationand distribution.With features
of low energy consumption,large treatment capacity,simple structure,easy maintenance,fully closed,no dust scattered,automatic discharge,more suitable for
assembly line.Vibrating screen is able to screen and grade for powder and granule
material.It is widely applied in plastic,abrasive,chemical,pharmaceutical,building
materials,food,carbon,fertilizer industries,etc.
Features SY
1.due to the vibration sieve box produce strong vibration force,reducing the material clog the sieve,thus making a sieve with high screening efficiency and productivity;
2.simple structure,easy removable screen sieve;
3.screening per tonne of material with less power consumed;
4.It is suitable for coarse screening of high production capacity;
5.when screening,the machine parallel transport of materials,the material in the screen surface has long stroke,has large capacity .
Technical Paraments SY
Model |
Nominal Size(mm) |
Amplitude(mm) |
Layer Number |
Power(kw) |
Overall Dimensions
|
||
SYZX520 |
500×2000 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
2740 |
870 |
1440 |
SYZX525 |
500×2500 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
3240 |
870 |
1440 |
SYZX530 |
500×3000 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
3740 |
870 |
1440 |
SYZX1020 |
500×2000 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
2740 |
1370 |
1440 |
SYZX1025 |
500×2500 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
3240 |
1370 |
1440 |
SYZX1030 |
500×3000 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
3740 |
1370 |
1440 |
Details SY

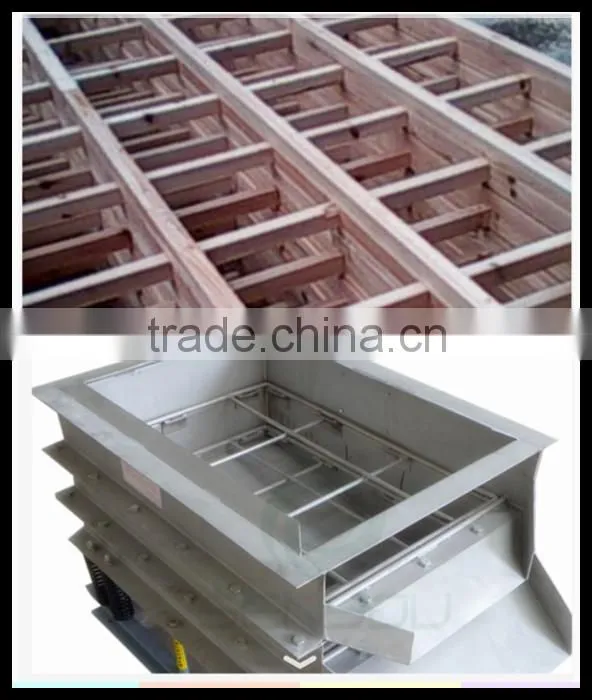

Screen frame--Wooden&stainless steel
