Specifications
concrete separation equipment1.do linear movement
2.large handling capacity
ntinuous work and no jamming
4.ISO9001,CE

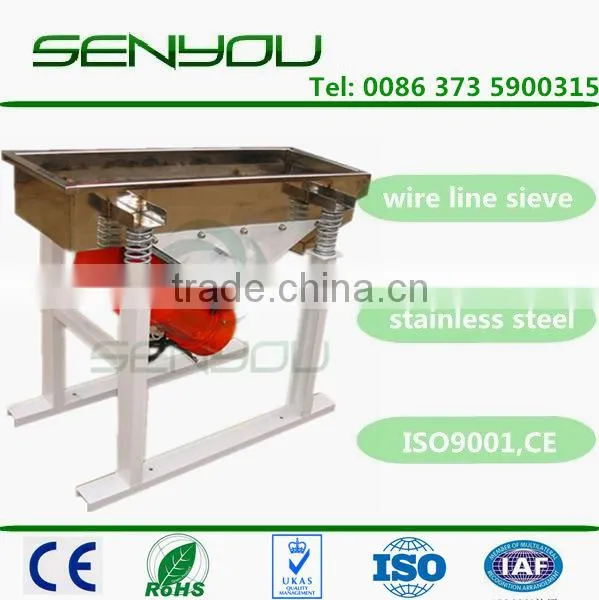

Linear shaker screener concrete separation equipment uses double electric motors
as the power source,and makes materials do linear movement,can be equipped with
single or multilayer mesh to achieve the purpose of rating,dehydration,remove
impurities and inspection,has the function of classification and distribution.With
features of low energy consumption,large treatment capacity,simple structure,easy maintenance,fully closed,no dust scattered,automatic discharge,more suitable for
assembly line.
Features SY
1.Higher sieving efficiency:full material flow on multi-deck gives accurate grading on all meshes;
2.Environment-friendly:as the small amplitude,low noise and no powder pollution;
3.Stable power:use the professional vibrating motor as the vibrating power source,ensures the stable power;
4.Bouncing ball system:with bouncing balls set under the screen which eliminates mesh blockage, increasing precision of sieving;
5.Fully enclosed structure:avoid dust overflow,reaching the request of sanitation;
6.Wide application:applicable for sizing particles and screening powder and liquid;
7.Up to 6 screen surfaces can be mounted on one unit that providing7predetermined fractions in a single operation.
Application SY
Linear shaker screener concrete separation equipment is able to screen and
grade for powder and granule material.It is widely applied in plastic,abrasive,
chemical,pharmaceutical,building materials,food,carbon,fertilizer industries,etc.
Technical paraments SY
Model |
Nominal Size(mm) |
Amplitude(mm) |
Layer Number |
Power(kw) |
Overall Dimensions
|
||
SYZX520 |
500×2000 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
2740 |
870 |
1440 |
SYZX525 |
500×2500 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
3240 |
870 |
1440 |
SYZX530 |
500×3000 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
3740 |
870 |
1440 |
SYZX1020 |
500×2000 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
2740 |
1370 |
1440 |
SYZX1025 |
500×2500 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
3240 |
1370 |
1440 |
SYZX1030 |
500×3000 |
3-4.5 |
1-6 |
2×(0.4-0.75) |
3740 |
1370 |
1440 |
Other equipments SY
