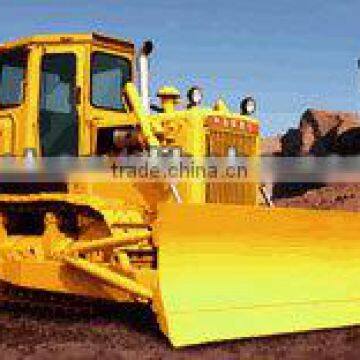

TY140-1 Bulldozer With Weichai Engine 140HP Popular for Exporting to Africa and Russia Markets

Name: TY140-1 Bulldozer With Weichai Engine 140HP Popular for Exporting to Africa and Russia Markets
Brand: SHANTUI
SKU: 112487383
Availability: InStock

TY140-1 Bulldozer With Weichai Engine 140HP Popular for Exporting to Africa and Russia Markets thumbnail-1

TY140-1 Bulldozer With Weichai Engine 140HP Popular for Exporting to Africa and Russia Markets photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

SHANTUI

Model Number:

SD16

Contact Supplier Request Quote Chat Now

Shandong Zot Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name SHANTUI

Model Number SD16

Condition New

Moving Type Crawler Bulldozer

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Same like SD16 with weichai power 140HP diesel engine,popular for exporting to Africa and Russia markets.SHANTUI/TIANGONG

T140-1 Bulldozer:

It has characteristic of semi-rigid suspension, mechanical drive. The main clutch is hydraulic boosted. With hydraulic pilot controlled, electric monitoring, good appearance, it is widely used in road building, hydro-electric construction, field modification, port and mine development and other construction.

T140-1 Bulldozer Specifications:

NO.	item	Parameter
1	Dozer	Tilt
2	Operation weight not include repper	16500kg
3	Ground pressure	65kPa
4	Track gauge	1880mm
5	Gradient	30/25
6	Min. ground clearance	400mm
7	Dozing capacity	4.5m3
8	Blade width	3297mm
9	Max Digging depth	320mm
10	Overall dimensions	548632672842mm

T140-1 Bulldozer engine:

NO.	item	Parameter
1	Type	Weichai WD10G156E15
2	Rated revolution	1850rpm
3	Flywheel power	104/140kw/hp
4	Max. torque	830/1100N.M/RPM
5	Rated fuel consumption	less 218g/kw.h

T140-1 Bulldozer undercarriage system:

NO.	item	Parameter
1	Type	Swing type of sprayed beam Suspended structure of equalizer bar
2	Number of track rollers (each side)	6
3	Number of carrier rollers (each side)	2
4	Pitch	203mm
5	Width of shoe	500mm

T140-1 Bulldozer undercarriage system:

NO.	item	Parameter
1	Forward	0-2.52 km/h (1st) 0-3.55 km/h (2st) 0-5.68 km/h (3st) 0-7.53 km/h (4st) 0-10.61 km/h (5st)
2	Backward	0-3.53 km/h (1st) 0-4.96 km/h (2st) 0-7.94 km/h (3st) 0-10.53 km/h (4st)

T140-1 Bulldozer implement hydraulic system:

NO.	item	Parameter
1	Max systme pressure	12mpa
2	Pump type	Two groups gears pump
3	System output	180L/min

T140-1 Bulldozer Driving system:

NO.	item	Parameter
1	Main clutch	Nomally opened wet type, hydraulic booster control
2	Transmission	Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.
3	Steering clutch	Multiple-disc oil power metallurgy disc compressed by spring, hydraulic operated
4	Braking clutch	Brake is oil two direction floating band brake operated by mechanical foot pedal
5	Final drive	The final drive are double reduction with spur gear and segment sprocket,which are sealed by duo-cone seal.

China bulldozer Brands: SHANTUI bulldozer, XUANGONG bulldozer, HBXG bulldozer, and so on. chinese bulldozer has many advantage, chinese bulldozer price is lower and quality is high.
