Specifications

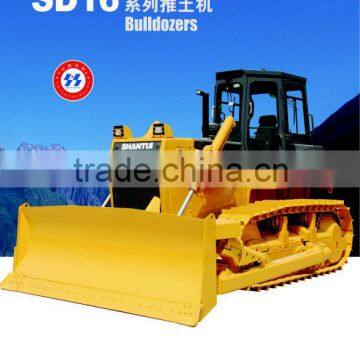

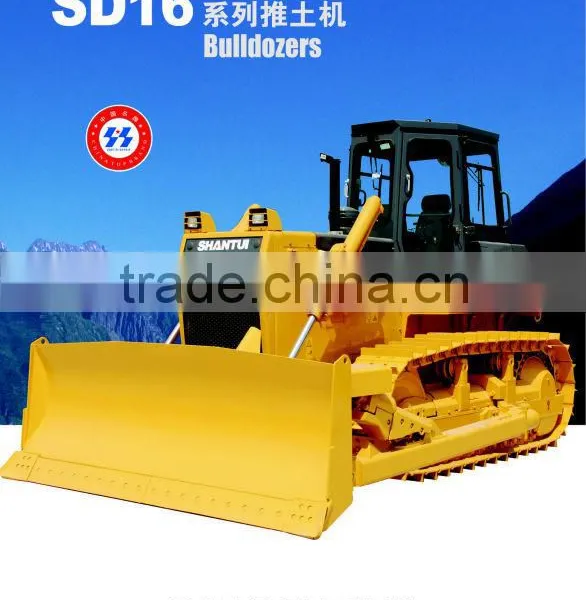

small bulldozer,cummins engine,ytr engine,pupular for exporting with CE and gost,high quality,shantui made in ZOT brand. The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
The single control lever can control all blade actions;
The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
| ITEM | UNIT | SD16 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 5140×3388×3032 |
| Operating weight (Ripper not included) | t | 17 |
| Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
| Rated power | kW/rpm | 120/1850 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade U blade Angle blade |
| Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
| Dozing capacity | m3 | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1095 |
| Ripper type | - | Three-shank ripper |
| Ripping depth of ripper | mm | 572 |
| Lifting height of ripper | mm | 592 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 37 |
| Width of track shoe | mm | 510 |
| Track gauge | mm | 1880 |
| Ground length and ground pressure | mm/MPa | 2430-0.067 |
| Pitch | mm | 203.2 |
| Forward speed | km/h | 0–3.29 |
| 0–5.82 | ||
| 0–9.63 | ||
| Reverse speed | km/h | 0–4.28 |
| 0–7.59 | ||
| 0–12.53 | ||
| Net Engine Output at Rated RPM | - | 148HP(110.5KW) |
