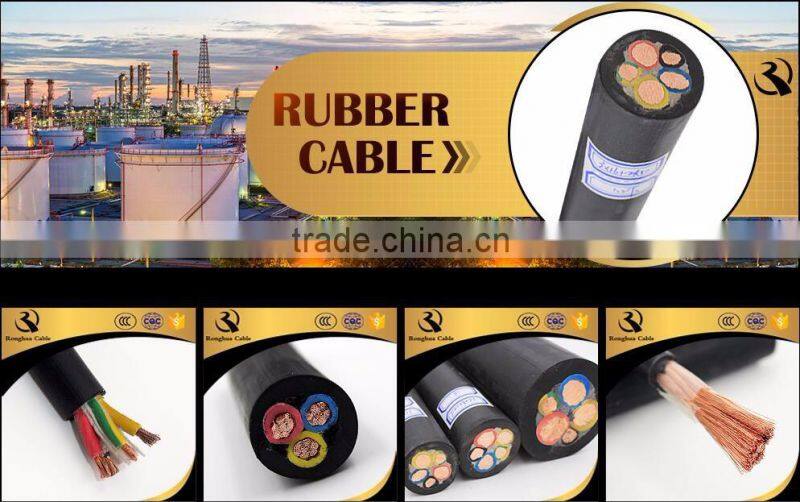

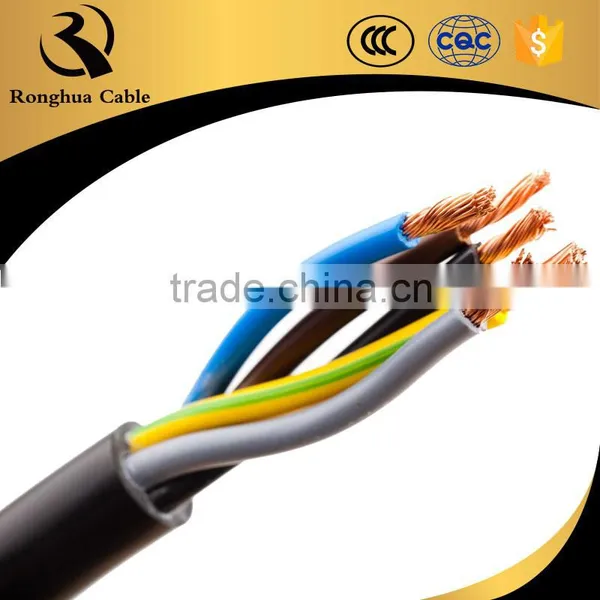

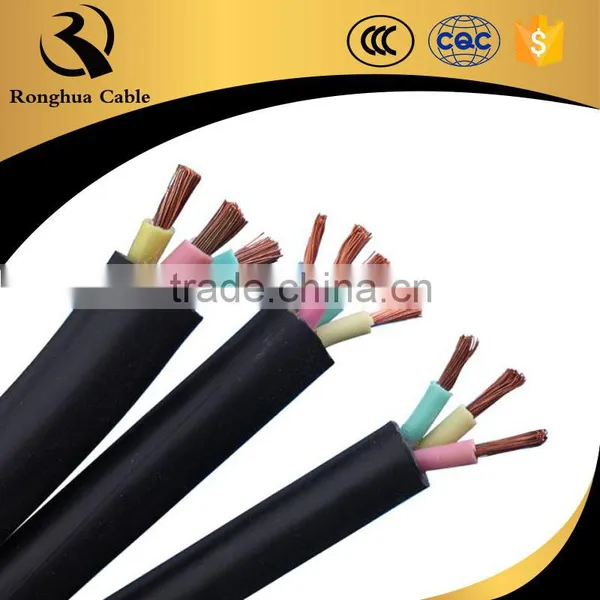

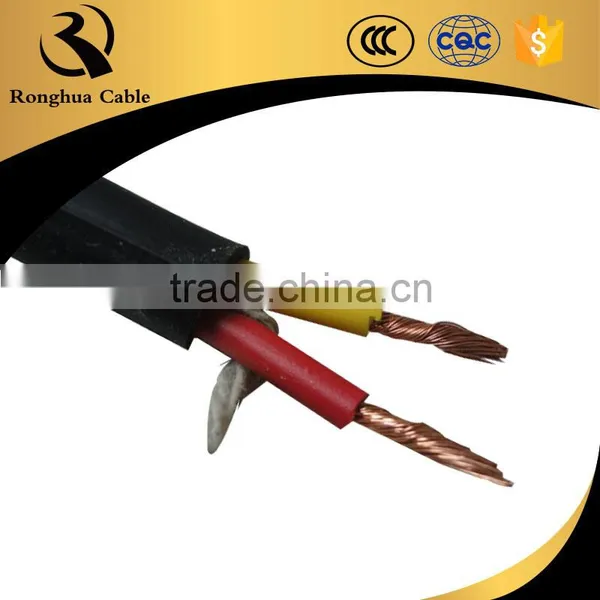

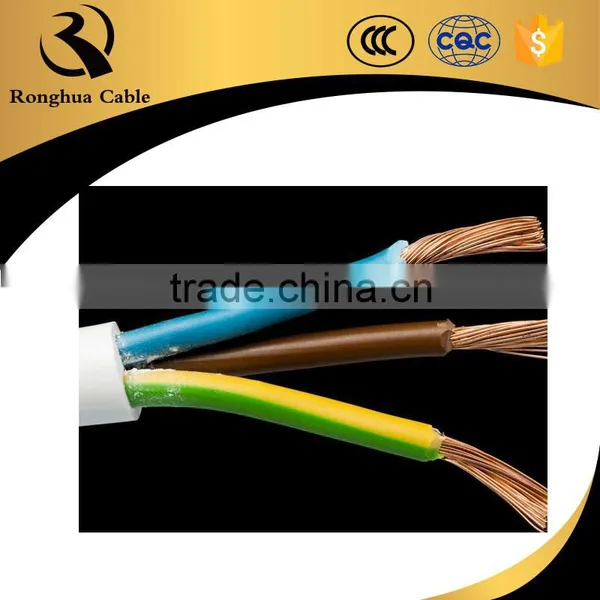

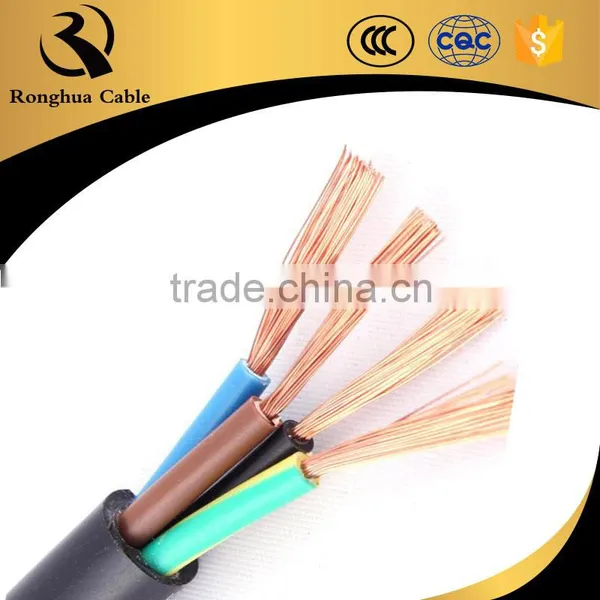

Help CenterVDE Approval Flexible Rubber Cable H07RN-F
Related Products
-
Ronghua Cable UL Standrad SOOW 600V 4 Core Flat Submersible Pump CableUS$ 0.5 - 20MOQ: 300 Meters -
VDE0282 Strandard Super Flexible HOFR Rubber Sheath 35mm Copper Cable Ronghua CableUS$ 1 - 20MOQ: 300 Meters
-
Ronghua Cable H01N2-D H01N2-E 16-185mm2 Rabber Soft Welding Cable With Best PriceUS$ 1.5 - 20MOQ: 300 Meters
-
Ronghua Cable Rubber Insulated Underwater Waterproof CableUS$ 0.5 - 10MOQ: 300 Meters
-
Ronghua Cable 450/750V Hot Sale 3 Cors Rubber Waterproof CableUS$ 0.5 - 15MOQ: 300 Meters
Application:
Suitable for heavy duty and conditions of medium to high stresses. For usage in tools and agricultural devices both in and outdoors.
Structure:
Conductor: Stranded Bare Copper
Installation: EPR
Jacket: CPE
Technical Data:
Rated Temperature: 60℃
Rated Voltage: 450/750V
Feature:
With outdoor usage
Pass the vertial buring test
Colour:
Colour of Jacket: Black,White,Gray
Colour of Cores:
2 Cores: Blue and Brown
3 Cores: Yellow/Green, Blue and Brown
4 Cores: Yellow/Green, Brown, Black and Gray
5 Cores: Yellow/Green, Blue, Brown, Black and Gray
Dimensions and Specifications:
Cross Section (mm2) |
Diameter (mm) |
Conductor D.C. resistance at 20℃ |
1×1.5 |
6.2±0.20 |
13.3 |
1×2.5 |
6.6±0.20 |
7.98 |
1×4.0 |
7.9±0.30 |
4.95 |
1×6.0 |
8.7±0.30 |
3.30 |
2×1.0 |
8.3±0.30 |
19.5 |
2×1.5 |
9.3±0.30 |
13.3 |
2×2.5 |
11.2±0.40 |
7.98 |
2×4.0 |
12.8±0.40 |
4.95 |
2×6.0 |
14.4±0.40 |
3.30 |
3×1.0 |
9.0±0.30 |
19.5 |
3×1.5 |
10.1±0.40 |
13.3 |
3×2.5 |
12.1±0.40 |
7.98 |
3×4.0 |
13.9±0.40 |
4.95 |
3×6.0 |
15.4±0.5 |
3.30 |
4×1.0 |
10.0±0.40 |
19.5 |
4×1.5 |
11.1±0.40 |
13.3 |
4×2.5 |
13.3±0.40 |
7.98 |
4×4.0 |
15.2±0.50 |
4.95 |
4×6.0 |
17.2±0.50 |
3.30 |
5×1.0 |
11.0±0.40 |
19.5 |
5×1.5 |
12.2±0.40 |
13.3 |
5×2.5 |
14.6±0.50 |
7.98 |
5×4.0 |
16.9±0.50 |
4.95 |
5×6.0 |
19.1±0.60 |
3.30 |
