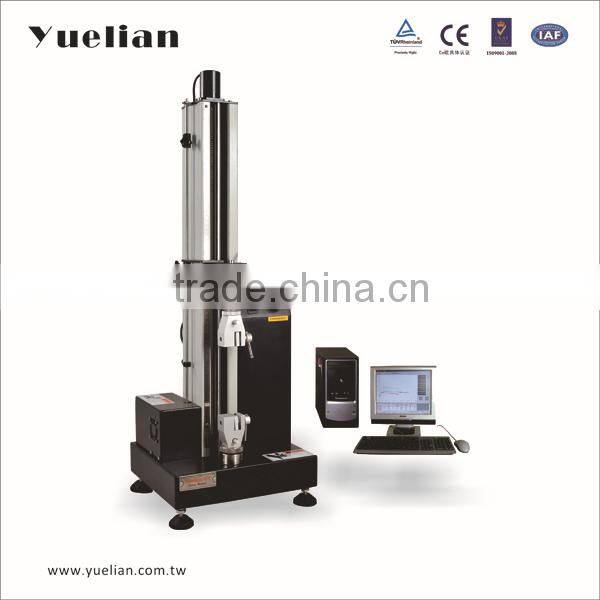

Help CenterPeel Strength Testing Machine/Peel Testing Equipment/Peel Test Equipment/Adhesive Tape Peel Tester
Related Products
Specifications
Peel Testing Machine is to test product tensile, compression, bending, shearing, bonding strength, peeling, tearing test etc.Peel Strength Testing Machine/Peel Testing Equipment/Peel Test Equipment/Adhesive Tape Peel Tester
Test&Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Software Protection: over stroke, over capacity protection.
Function:
Can conduct tensile, compression, peeling, tearing, shearing, ring initial adhesion and other test
Can display force and displacement at the same time
Adopt stepper motor drive, precision ball screw drive, set test speed by computer directly.
Up & low fine-turning switch, automatic back after test finished
Quick-release connector, can use various grips
All computerized operation, USB interface, conduct data analysis
Specification:
Capacity | 10N, 20N, 50N,100N, 200N, 500N, 1KN (can select double capacities preparation) |
Display | Computer display mode |
Force Resolution | 1/250,000 |
Force Accuracy | ≤±0.5% |
Stroke Resolution | 0.005mm |
Control Mode | All computerized operation mode. |
Test Stroke | 500mm |
Test Width | Ø55mm |
Test Speed | 5~500mm/min, can set by computer, with up & down fast adjustment button of grips |
Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |
Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper&lower limit set automatic stop, automatic reset function |
Machine Dimension | 40×30×70cm (W×D×H) |
Machine Drive | Stepper motor drive, synchronous wheel and precision ball screw drive |
Power | 180W |
Machine Weight | Approx 28kg |
Power Supply | 220V 50/60HZ 10A |
Standard Device | 1 set of grips, computer software, USB computer connection wire |
Optional | Personal computer |
