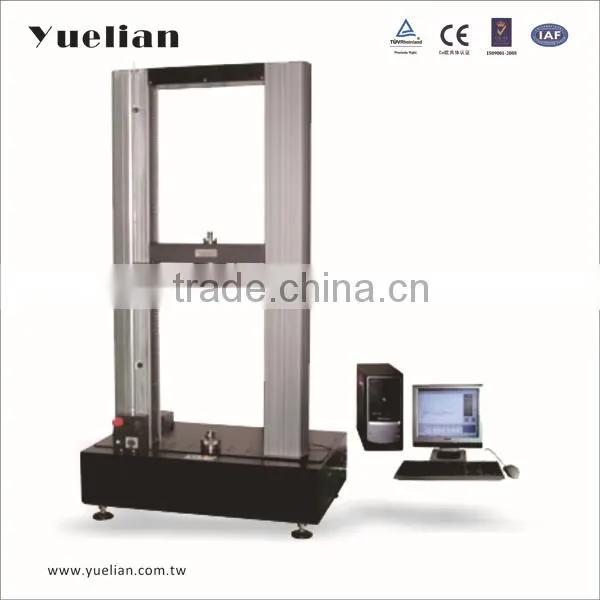

YL-1125 multi-purpose tester/Rubber plastic tensile tester
Productt Description:
Rubber and plastic tensile tester is designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.
It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.
Machine Features:
1. Have Dust cover, Extrusion Aluminium Section Protective Shell, Precision Ball Screw to increase the service life and accuracy.
2. Shell Closure Plate, light weight, prefect appearance, life-long durability and easy maintenance.
3. Hardware Security: The upper and lower limit, Emergency Stop Button
4. Machine Drive: Servo Motor Drive, Ball Lead Screw with Timing Belt to reduce noise and precision aluminium alloy synchronous wheel.
5. Speed Range: 0.5500 mm/min,can be set in computer system,with up and down fast adjustment button of grips
6. Safe Stop Mode: Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function.
Characteristics:
Optaional Capacity |
5,10,20,50,100,200,500,1000,2000,5000KG;
10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN, 50KN;
(can select double capacities preparation) |
|
Force Resolution |
1/250,000 |
|
Force Accuracy |
≤±0.5% |
|
Stroke Resolution |
0.005mm |
|
Test Stroke |
1000mm |
|
Test Width |
420mm |
|
Test Speed |
0.5-500mm/min, can set by computer, with up & down fast adjustment button of grips |
|
Force Unit Switch |
Kgf,g,N,kn,lbf,TON (switchable) |
Stop Method |
Overload Stop, specimen damage stop, emergency stop button, upper & lower limit stop, over stroke protection |
Control Method |
All computerized operation control |
Machine Dimension |
92×62×199cm(W×D×H) |
Machine Weight |
Approx. 422 KG |
Power |
AC 220V 5060HZ 4A |
|
Standard Device |
One set of grips Computer software Computer connection wire One set of software LCD |
