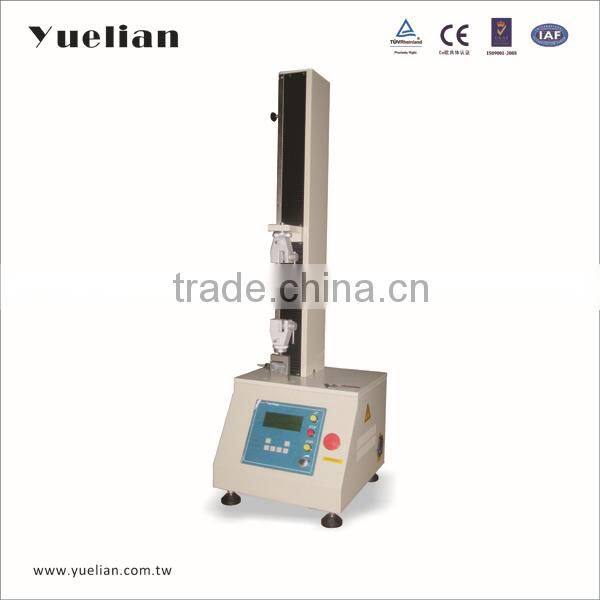

YL-1100 universal cable tester
Product Descriptions:
YL-1100 Electronic Tensile Testing Machine is a latest designd economic test equipment, is suitable for adhesive, paper, printing, packaging, electronic and other industries, used for the test of stretching, peeling, tearing, shearing, drawing, inserting, tension etc.This tester is cost-effective, easy operation and convenient maintenance.
Specifications:
1.Capacity: 10N, 20N, 50N, 100N, 200N, 500N, 1KN (can select double capacities preparation)
2.Display: LCD electronic display mode
3.Force Resolution: 1/25,000
4.Force Accuracy: ±0.5%
5.Stroke Resolution: 0.005mm
6.Control Mode: Display operation
7.Test Stroke: 500mm
8.Test Width : Ø55mm
9.Test Speed: 25~300mm/min, adjustable
10.Force Unit Switch: Kg, N, LB
11.Stop Mode: Overload stop, emergency stop button, specimen damage automatic stop,
upper & lower limit set automatic stop
12.Machine Dimension: 65*26*105cm (W*D*H)
13.Machine Drive: AC motor 1
14.Power Supply: 220V 50~60HZ 3A
15.Standard Device: 1 set of grips
16. Optional Device: Printing

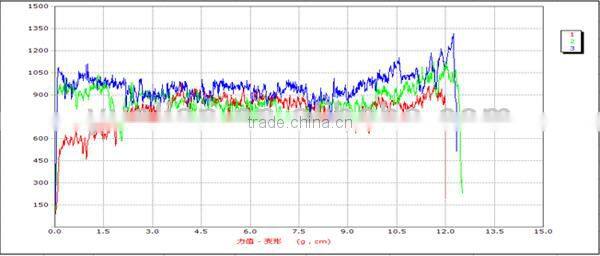

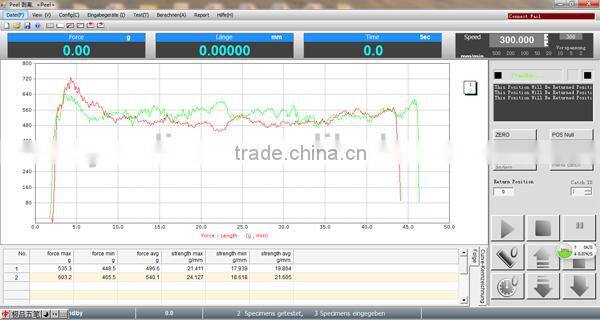

Test report
Workshop
Exhibition photos
Certification
