plastic bottle pressure testing machine

Specifications

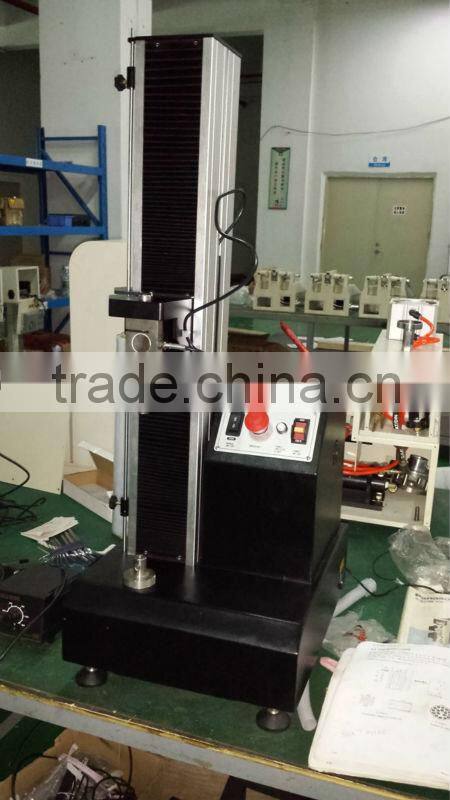

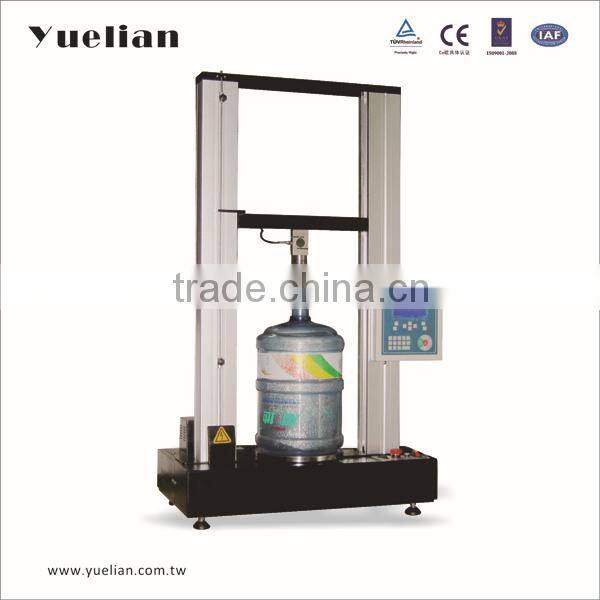

YL-1210B plastic bottle pressure testing machine

Purpose:

Use:Bottle compression testing machine  is designed for conduct compression test for glass, display screen, magnet ring, mobile phone, portable computer, container bottle to know the stress state of products' all the parts. It is a basic equipment for improving quality.

Software Function:

Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.

Specification:

Capacity : 50N,100N,200N,500N,1KN,2KN,5KN((can select double capacities preparation))

Display : Displayer or Computer display mode

Force Resolution : 1/120,000

Force Accuracy : ≤±0.5%

Stroke Resolution : 0.005mm

Control Mode : All computerized operation mode

Test Stroke : 700mm

Test Width : 420mm

Test Speed : 0.1~500mm/min can set by computer, with up & down fast adjustment button of grips

Force Unit Switch : kgf,N,Ibf,g,ton,Mpa

Stop Mode : Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Test Function : maximum, break value test and so on

Machine Dimension : 62×52×140cm(W×D×H)

Machine Drive : Servo motor drive, synchronous wheel and precision ball screw drive

Power : 400W

Machine Weight : Approx 60kg

Power Supply : 220V 50/60HZ 3A

Standard Device: set of platens, computer software, 232 computer connection wire

Optional : Personal computer
