YL-1109B Tensile Testing Machineto conduct tensile, compression, adhesive strength, peel, tear and bending tests etc.

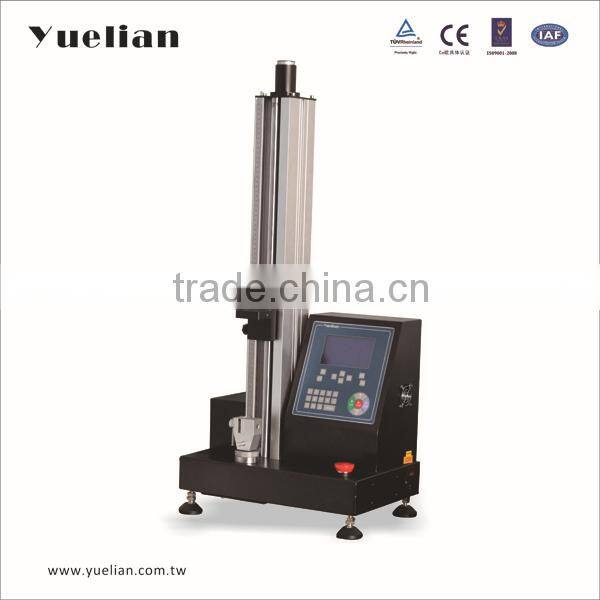

YL-1109B Digital Display Tensile Testing Machine
Use:
This tester is designed to conduct tensile, compression, adhesive strength, peel, tear and bending tests etc. for metal, rubber, plastics, textile, leather, paper, composite materials and so on. The new developed B type LCD display screen operation mode are full of elasticity on the collocation selections, with the functions of analysis,statistics,storage etc on the computer by connection to the special software.It is easy to operate.
Feature:
The transmission efficiency of this tester is more than 85%. With little energy loss, high precision, large extensibility and available to operate by single machine and connection to computer.
Function:
Available to tensile, compression, peel, tearing, shear, ring initial adhesive force tests and so on.
Available to display the force and displacement simultaneously.
Adopt stepper motor drive and precise ball screw drive, available to set the test speed.
With up & down fine adjustment button and automatic reset function after finishing the tests.
Quick-release joint and available to use variety of grips.
One-touch test function, easy operation.
Available to connection to printer and output the test report.
Available to operation both by single machine operation and connection to computer, with USB interface and data analysis.
Specification:
capacity |
10N, 20N, 50N, 100N, 200N, 500N, 1KN(can select double capacities preparation) |
Force Resolution |
1/500,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.005mm |
Control Mode |
Operation by single machine or connection to the computer |
Test Stroke |
500mm or 750mm |
Test Width |
Ø55mm |
Test Speed |
5~600mm/min, can set by computer, with up&down fast adjustment button of grips |
Force Unit Switch |
Kgf, N, Ibf, g, ton, Mpa |
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop,upper&lower limit set automatic stop, automatic reset function |
Machine Dimension |
40×30×70cm (W×D×H) or 40×30×95cm (W×D×H) |
Machine Drive |
Stepper motor drive, synchronous wheel and precision ball screw drive |
Power |
180W |
Machine Weight |
Approx 30kg |
Power Supply |
220V 50/60HZ 10A |
Standard Device |
A set of grip for specified tests, such as compresssion plates for compression tests |
