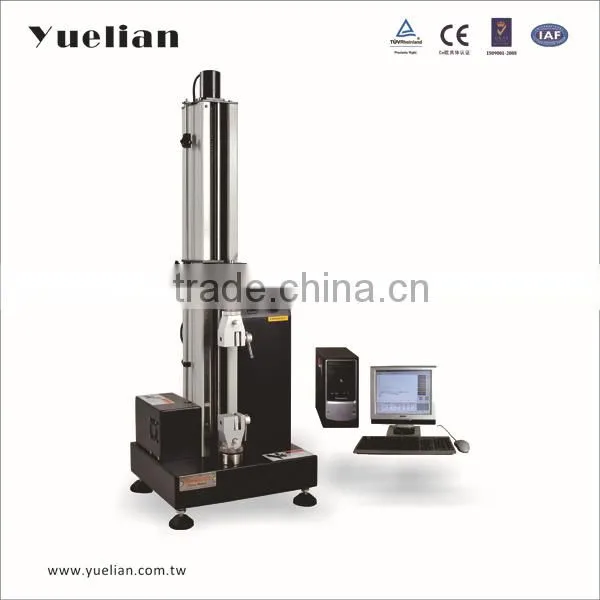

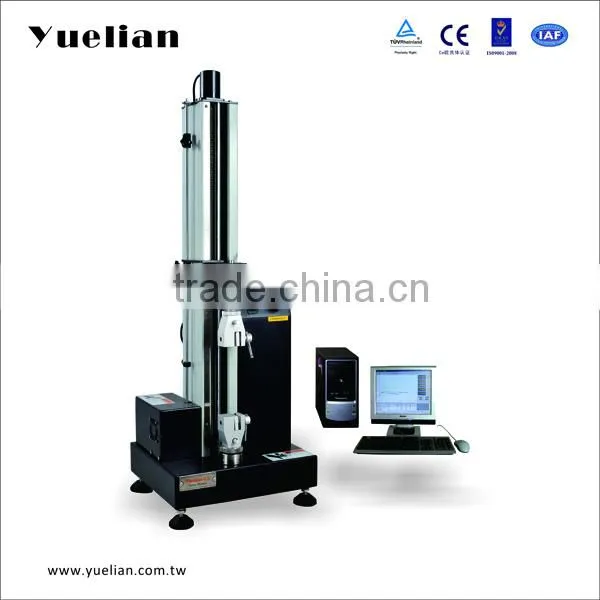

YL-1109 Paper Tensile Strength Tester
Product Descriptions:
Tensile test is a measurement of ability of material to withstand forces that tends to pull it apart and to determine to what extent the materials stretches before breaking
YL-1109 Paper Tensile Strength Tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line,
fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.
It is a basic equipment of quality control, receiving inspection, physical test, mechanics research,
material development.
Software Protection:
over stroke, over capacity protection.
Function:
1)Can conduct tensile, compression, peeling, tearing, shearing, ring initial adhesion and other test
2)Can display force and displacement at the same time
3)Adopt stepper motor drive, precision ball screw drive, set test speed by computer directly.
4)Up & low fine-turning switch, automatic back after test finished
5)Quick-release connector, can be equipped with various grips

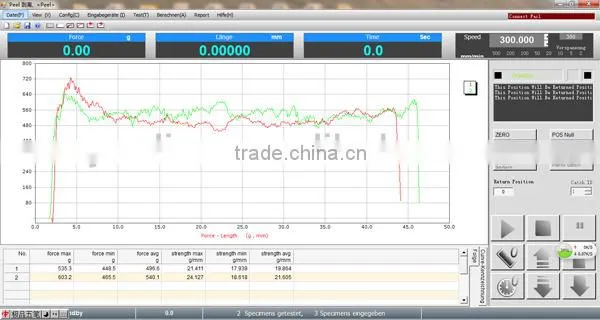

6)All computerized operation, USB interface, conduct data analysis
Design Standard: TAPPI T200; TAPPI T494; TAPPI T456
Characteristics:
Capacity |
10N,20N,50N,100N,200N,500N,1KN |
Display |
Computer display mode |
Force Resolution |
1/120,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.005mm |
Control Mode |
All computerized operation mode. |
Test Stroke |
500mm |
Test Width |
Ø55mm |
Test Speed |
5~1,000mm/min, can set by computer, with up & down fast adjustment button of grips |
Force Unit Switch |
Kgf, N, Ibf, g, ton, Mpa |
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
Machine Dimension |
34×29×93cm (W×D×H) |
Machine Drive |
Stepper motor drive, synchronous wheel and precision ball screw drive |
Power |
180W |
Machine Weight |
Approx 28kg |
Power Supply |
220V 50/60HZ 10A |
Standard Device |
1 set of grips, computer software, USB computer connection wire |
Optional |
Personal computer |

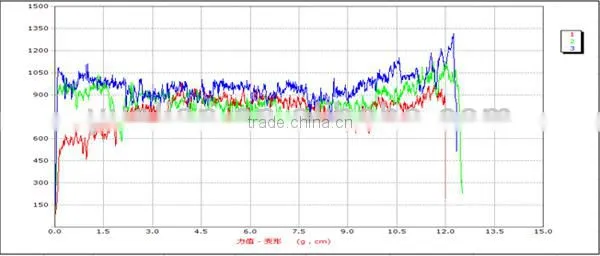

Test Report

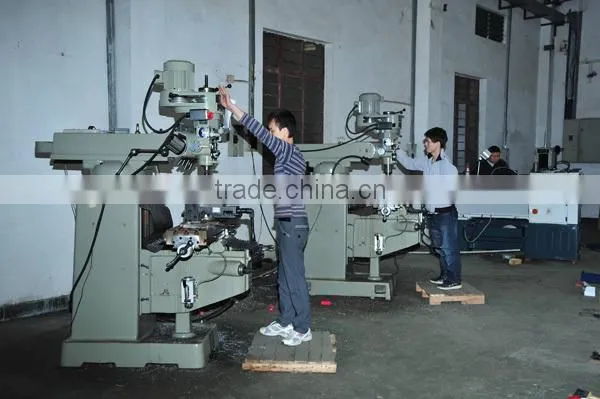

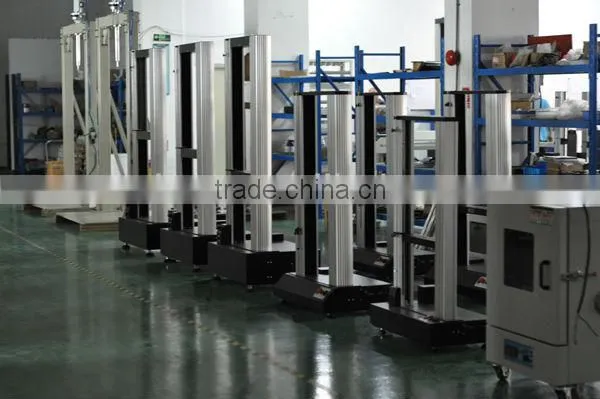

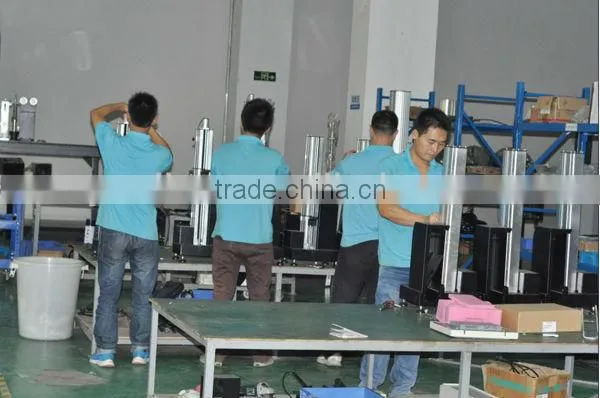

Workshop
