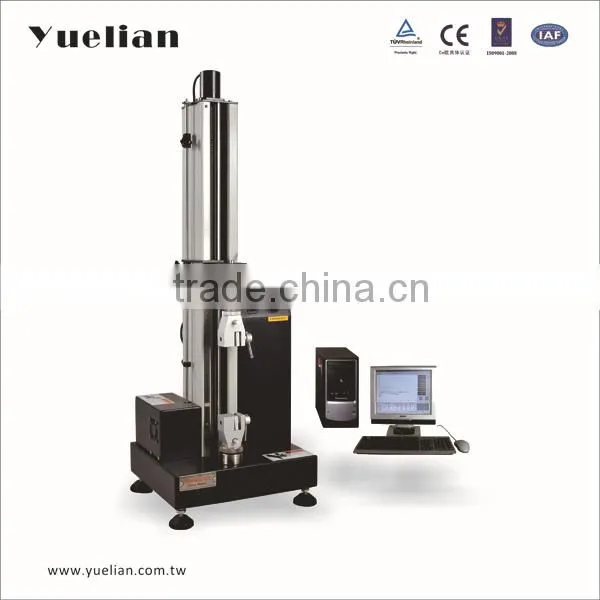

YL-1109 Table peel testing machine
Product Description
Uses: This machine also known as a materials testing machine , is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.
It is the latest launched light peeling testing machine, using the latest design concepts and manufacturing
technologies, reached minimum size and light weight but still consistently have test precision, easy operation,
strong expansion and other features of our testers.
It is designed for adhesion test and small force industries testing, with average force of peeling force and analysis.
Characteristics
| Capacity: | 10N, 20N, 50N, 100N, 200N, 500N, 1KN(can select double capacities preparation) |
|---|---|
| Display: | Computer display mode |
| Force Resolution: | 1/250,000 |
| Force Accuracy: | ≤±0.5% |
| Stroke Resolution: | 0.005mm |
| Control Mode: | All computerized operation mode |
| Test Stroke : | 500mm |
| Test Width : | 55mm |
| Test Speed : | 0.5~500mm/min, can set by computer, with up & down fast adjustment button of grips |
| Force Unit Switch: | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode: | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
| Machine Dimension: | 40×30×70cm(W×D×H) |
| Machine Drive: | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power: | 180W |
| Machine Weight: | Approx 28kg |
| Power Supply: | 220V 50/60HZ 10A |
| Standard Device: | 1 set of grips, computer software, USB computer connection wire |
| Optional : | Personal computer |
Test Report

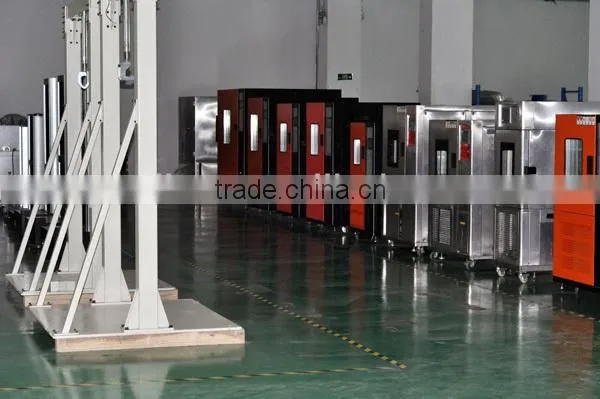

Workshop
EXHIBITION
Certification
