30Kva~180Kva Lovol Diesel Generator, High and Reliable Quality

Name: 30Kva~180Kva Lovol Diesel Generator, High and Reliable Quality
Brand: Lovol
Availability: InStock

FOB Price

US$ 2,500 - 20,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Lovol
Model Number	Lovol	Output Type	AC Three Phase
Speed	1500rpm/min	Frequency	50Hz
Rated Power	30Kva~180Kva	Rated Voltage	110V~600V
Rated Current	432A~259.2A

Product Description

Specifications

Lovol diesel generator from 30Kva~180Kva
Leroy Somer alterantor
Deepsea control panel
High quality
Reasonable price

30Kva~180Kva Lovol diesel generators

Main technical data

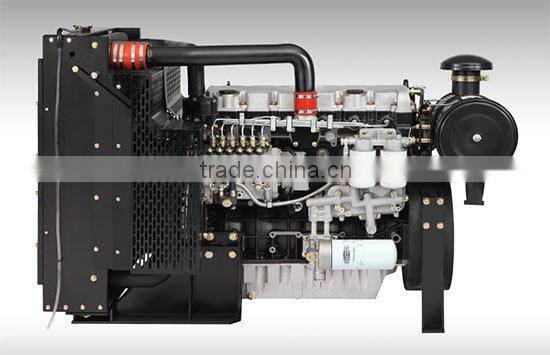

Lovol engine

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Lovol engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

30~180

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Lovol diesel generator power capacity

Model	Prime power		Engine model	No.of cyls	Bore/stroke (mm)	Fuel Cons. (g/kwh)	Dimension (LWH) (mm)	Weight(kg)
Model	KW	KVA	Engine model	No.of cyls	Bore/stroke (mm)	Fuel Cons. (g/kwh)	Dimension (LWH) (mm)	Weight(kg)
ST-LV24GF	24	30	1003G	3	100*127	210	15007001100	600
ST-LV24GF	24	30	1003G1A	3	100*127	210	16007301180	780
ST-LV30GF	30	37.5	1003TG1A	3	100*127	210	17907001100	900
ST-LV40GF	40	50	1003TG	3	100*127	210	16607301180	840
ST-LV48GF	48	60	1004TG1A	4	100*127	205	18307301180	910
ST-LV50GF	50	62.5	1004TG	4	100*127	205	19307301200	930
ST-LV60GF	60	75	1004TG	4	100*127	205	19307301200	950
ST-LV75GF	75	93.75	1006TG1A	6	100*127	209	22107401240	1260
ST-LV78GF	78	97.5	1006TG3A	6	100*127	209	22107401240	1260
ST-LV80GF	80	100	1006TG2A	6	100*127	209	22107401240	1290
ST-LV98GF	98	122.5	1006TAG1A	6	100*127	209	23308001240	1350
ST-LV110GF	110	137.5	1006TAG	6	100*127	209	23308001240	1350
ST-LV116GF	116	145	1006C-P6TAG2	6	100*127	209	25309101240	1370
ST-LV128GF	128	160	1006C-P6TAG3	6	100*127	209	266010201380	1390
ST-LV144GF	144	180	1006C-P6TAG4	6	100*127	209	266010201380	1390

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	30Kva~180Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Pictures FYI

Sutech Power Co., Ltd

No.18 Hailing Industry Park, Taizhou City, Jiangsu Province, China

Mobile: +86-15161006661

Tel: +86-523-86282985

Skype: stmeco

G-talk: sutech.power
