Help CenterIn Stock! 900KVA MTU Diesel Generator With Germany Original 16V2000G25 MTU Engine
Related Products
-
Silent Containerized 16V2000G65 1000KVA MTU Generator With Good PriceUS$ 5,000 - 800,000MOQ: 1 Set -
Hot! 1400 KVA/1120KW MTU Diesel Generator With Germany Original 12V4000G23R MTU EngineUS$ 5,000 - 800,000MOQ: 1 Set
-
Silent Containerized or Open Type 16V2000G65 1000KVA MTU Generator With Good PriceUS$ 5,000 - 800,000MOQ: 1 Set
-
650KVA/520KW MTU Diesel Generator With Germany Original 12V2000G25 MTU EngineUS$ 5,000 - 800,000MOQ: 1 Set
-
720KVA/576KW MTU Diesel Generator With Germany Original 12V2000G63 MTU EngineUS$ 5,000 - 800,000MOQ: 1 Set
720Kw/900kva silent generator set, powered by MTU 16V2000G25 engine
Stamford alterantor
Deepsea control panel
High quality
Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with CHINT MCCB circuit breaker;
Designed to Comply with ISO8528/GB2820;
Powered by MTU engine,Controlled by Deepsea panel
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 900 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. | |||
MTU engine (16V2000G25)

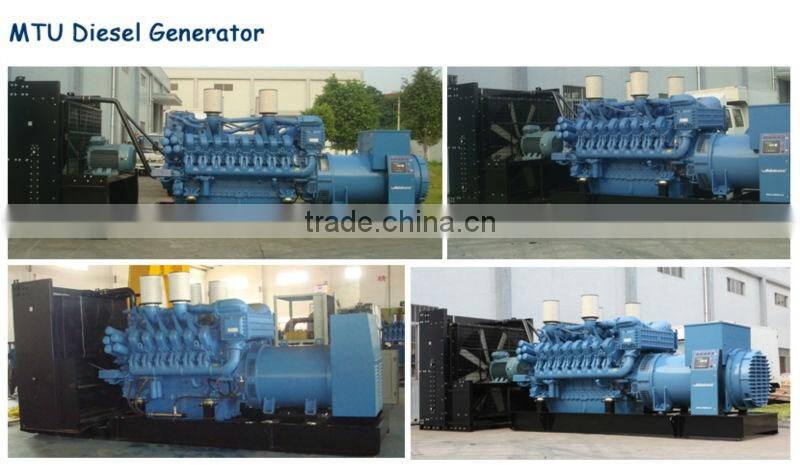

900KVA MTU diesel generator, powered by Germany orignal engine-16V2000G25
Cylinders: 16 cylinders
Prime power: 900KVA/720KW
| Model | Prime power | Engine model | No.of cyls | Bore/stroke (mm) | Fuel Cons. (g/kwh) | Dimension (L*W*H) (mm) | Weight(kg) | |
| KW | KVA | |||||||
| ST-M715 | 520 | 650 | 12V2000G25 | 12 | 130/150 | 197 | 4000*1750*2050 | 6600 |
| ST-M780 | 576 | 720 | 12V2000G63 | 12 | 130/150 | 202 | 4000*1750*2050 | 7000 |
| ST-M880 | 640 | 800 | 12V2000G65 | 12 | 130/150 | 202 | 4500*1800*2080 | 7200 |
| ST-M1000 | 720 | 900 | 16V2000G25 | 16 | 130/150 | 198 | 6500*2600*2500 | 7600 |
| ST-M1100 | 800 | 1000 | 16V2000G65 | 16 | 130/150 | 198 | 6500*2600*2500 | 8100 |
| ST-M1250 | 900 | 1125 | 18V2000G65 | 18 | 130/150 | 202 | 6500*2600*2500 | 9000 |
| ST-M1375 | 1000 | 1250 | 12V4000G21R | 12 | 165/190 | 199 | 6150*2150*2400 | 11500 |
| ST-M1400 | 1120 | 1400 | 12V4000G23R | 12 | 170/210 | 195 | 6150*2150*2400 | 12000 |
| ST-M1650 | 1200 | 1500 | 12V4000G23 | 12 | 170/210 | 189 | 6150*2150*2400 | 13500 |
| ST-M1800 | 1312 | 1640 | 12V4000G23 | 12 | 170/210 | 189 | 6150*2150*2400 | 13500 |
| ST-M2000 | 1450 | 1813 | 12V4000G63 | 12 | 170/210 | 193 | 6150*2150*2400 | 14000 |
| ST-M2250 | 1640 | 2050 | 16V4000G23 | 16 | 170/210 | 192 | 6500*2600*2500 | 17000 |
| ST-M2500 | 2000 | 2500 | 16V4000G63 | 16 | 170/210 | 191 | 6500*2600*2500 | 18000 |
| ST-M2750 | 2000 | 2500 | 20V4000G23 | 20 | 170/210 | 195 | 8300*2950*2550 | 24000 |
| ST-M3000 | 2200 | 2750 | 20V4000G63 | 20 | 170/210 | 193 | 8300*2950*2550 | 24500 |
| ST-M3300 | 2400 | 3000 | 20V4000G63L | 20 | 170/210 | 192 | 8300*2950*2550 | 25000 |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 100Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Control Panel
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
