Double Motor Control Jumbo Roll Slitting and Rewinding Machine
US$ 10,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EVA Laminated Film Roll Slitting MachineUS$ 6,000 - 15,000MOQ: 1 Set -
Automatic Vertical Photograph Paper Slitting MachineUS$ 7,000 - 17,000MOQ: 1 Set
-
Automatic Thermal Paper Slitting Rewinder MachineUS$ 5,000 - 25,000MOQ: 1 Set
-
Kraft Paper Slitting Rewinder MachineUS$ 4,000 - 30,000MOQ: 1 Set
-
Self-Adhesive Label Die Cutting Machine(QD-320)US$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Type
Slitting Rewinder
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
JINGDIANRUIHUA
Model Number
RH-SLT-1100C
Voltage
220V/380V 50Hz 3Phase
Power(W)
8kw
Dimension(L*W*H)
2000*2350*1350mm
Weight
2800kg
Certification
CE for Jumbo Roll Slitting and Rewinding Machine
Warranty
One year guarantee time
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

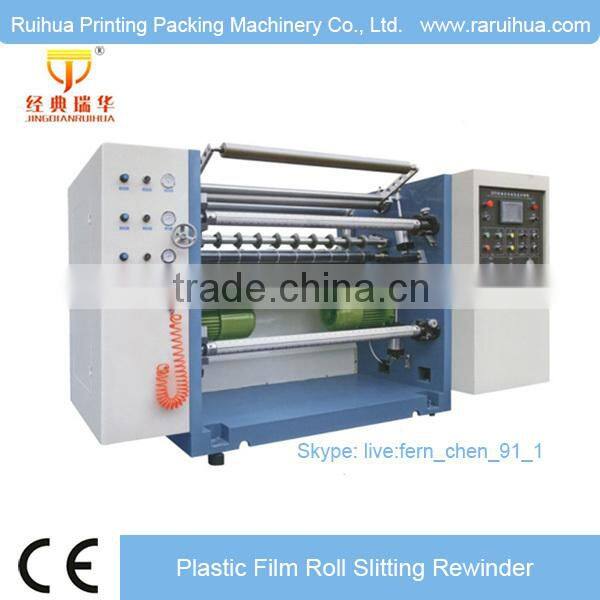

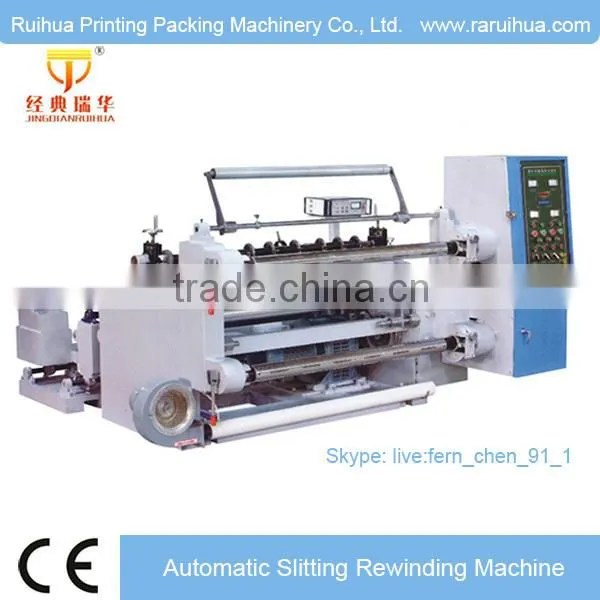

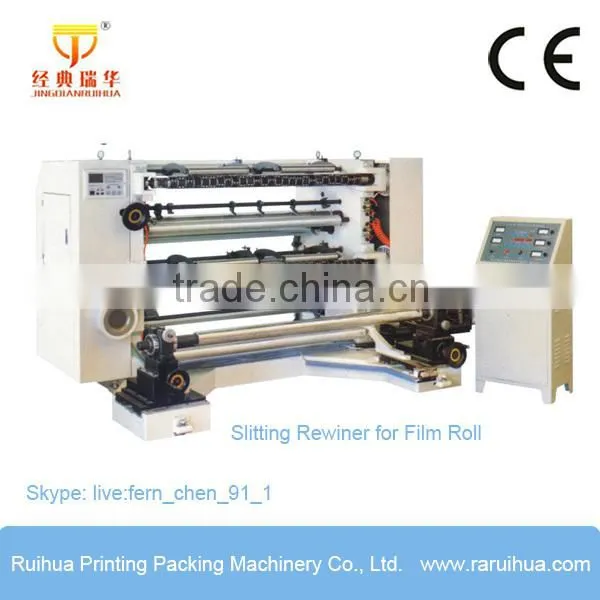

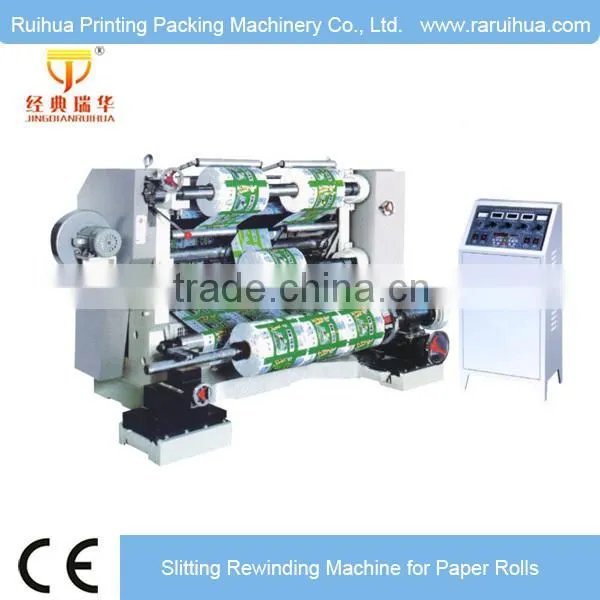

Jumbo Roll Slitting and Rewinding Machine
Use:
Jumbo Roll Slitting and Rewinding Machine is used for slitting and rewinding various large rolling materials such as regular paper,cellophane paper, bill paper, double-face adhesive tape, PVC, Al ,foil,weave material, non-woven of cloth, BOPP,OPP,PET etc.
Main Technical Parameters | |
Model Type |
RH-SLT-1100C |
Max. Parent Web Width |
1100mm |
Max. Parent Web Diameter |
1000mm |
Max. Rewinding Diameter |
600mm |
Min. Slitting Width |
30mm |
Thickness Range |
Paper in 30-500gsm Film in 0.008-0.12mm |
Max. Speed |
300m/min |
Unwinding Shaft |
3” Pneumatic Air Expanding Shaft |
Rewinding Shaft |
3” Pneumatic Air Expanding Shaft |
Precision |
0.15mm |
Total Power |
8Kw |
Voltage |
3Phae 4Line 380V 50Hz |
Weight |
About 2800kgs |
Overall Dimension |
2000*2350*1350mm |
Specifications
- Machine is with PLC control and touch screen, working data can be preset and displayed on the control panel, working automatically.
- Jumbo Roll Slitting and Rewinding Machine is with double frequency inverter motor control, one for material feeding, one for tension control.
- Jumbo Roll Slitting and Rewinding Machine is with double frequency inverter for motor control, stable working and long lifespan.
- Jumbo Roll Slitting and Rewinding Machine is with automatic meter counter for working length tracking, when reached the preset length, machine stop and alarm automatically.
- Jumbo Roll Slitting and Rewinding Machine is with A and B pneumatic shaft structure for rewinding, easy for loading and unloading, and no overlap(rewinding rolls can be easily separated).
- Machine is with 3 sets magnetic brake/clutch for unwind/rewind tension control.
- 3 sets automatic tension control system are implanted in PLC, easy operation.
- Jumbo Roll Slitting and Rewinding Machine is with photoelectric automatic error correction adjustment system for unwinding to keep accurate roll edge.
- Jumbo Roll Slitting and Rewinding Machine is with edge trimming system for waste edge trimming.
- With automatic pneumatic loading system with 3’’ air expanding shaft for jumbo roll loading, easy operation.
- With automatic cut when meter reached the preset data.
Company Information

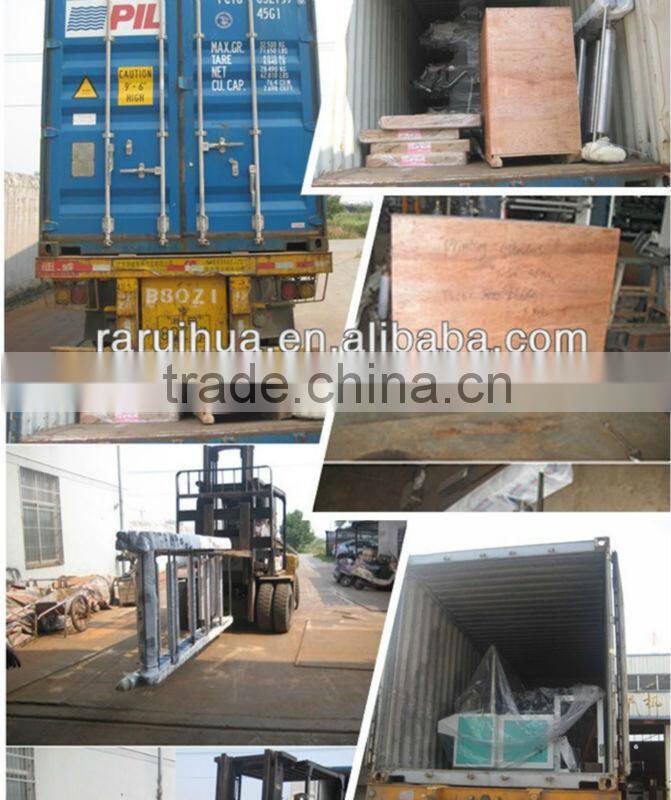

Packaging & Shipping
Package&Shipping:
More details, pls contact freely.
