EVA Laminated Film Roll Slitting Machine

Name: EVA Laminated Film Roll Slitting Machine
Brand: JINGDIANRUIHUA
SKU: 112372017
Availability: InStock

US$ 6,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Commodity, Other, Medical, Commodity, Machinery & Hardware, Medical

Packaging Type:

Cartons, Case, Film

Ruian Ruihua Printing Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Commodity, Other, Medical, Commodity, Machinery & Hardware, Medical

Packaging Type Cartons, Case, Film

Packaging Material Paper, Plastic, Wood

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage 380V/220V 50Hz 3Phase

Power 6Kw

Place of Origin Zhejiang, China

Brand Name JINGDIANRUIHUA

Model Number RH-SLT-1100

Dimension(L*W*H) 2200*2000*1500mm

Weight 2000kgs

Certification CE&ISO for EVA Laminated Roll Slitting Machine

After-sales Service Provided Engineers available to service machinery overseas

Product Description

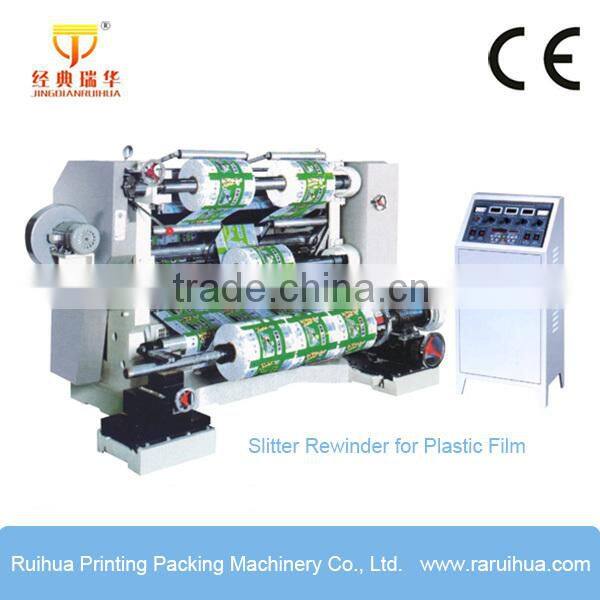

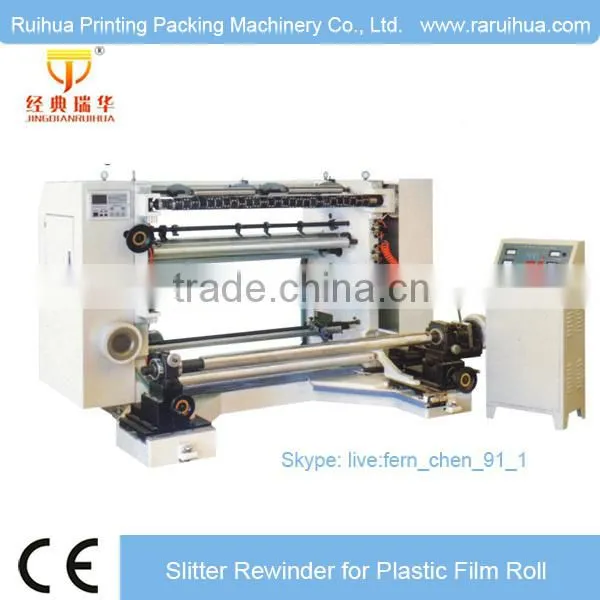

EVA Laminated Roll Slitting Machine

Main Technical Parameter
Model Type	RH-SLT-1100
Max. Parent Web Width	1100mm
Max. Parent Web Diameter	800mm
Max. Rewinding Diameter	600mm
Min. Slitting Width	30mm
Thickness Range	Paper: 50-800gsm Film: 0.02-1.2mm
Max. Machine Speed	180m/min
Unwinding/Rewinding Shaft	3’’ Pneumatic Air Expanding Shaft
Slitting Precision	±0.15mm

SPECIFICATIONS:

Application Material

Label, Regular Paper,Kraft Paper, Non-woven Cloth, Film(PVC,OPP.PE, PET, BOPP), Bond Paper, etc.

Main

EVA Laminated Roll Slitting Machine is with programmed control system and meter counter.
Machine is with frequency inveter for motor control and frequency inverter motor, working more stable.
All transmission rollers have been dynamic/static balance treated.
Machine is with emergency switch.
EVA Laminated Roll Slitting Machine s with edge position control(EPC) to provide accurate slitting position
EVA Laminated Roll Slitting Machine is with automatic braking device, and with 2 sets electromagnetic clutch
Machine is with auto tension controller for unwinding tension control, and 2 sets semi-auto tension controllerfor rewinding tension control.
EVA Laminated Roll Slitting Machine is with razor type blade or disc type blade according to different materials.
Machine is with automatic meter counter which will stop the machine when reach the pre-set length.
EVA Laminated Roll Slitting Machine is with air blower and expulsion tube.
