Automatic Vertical Photograph Paper Slitting Machine

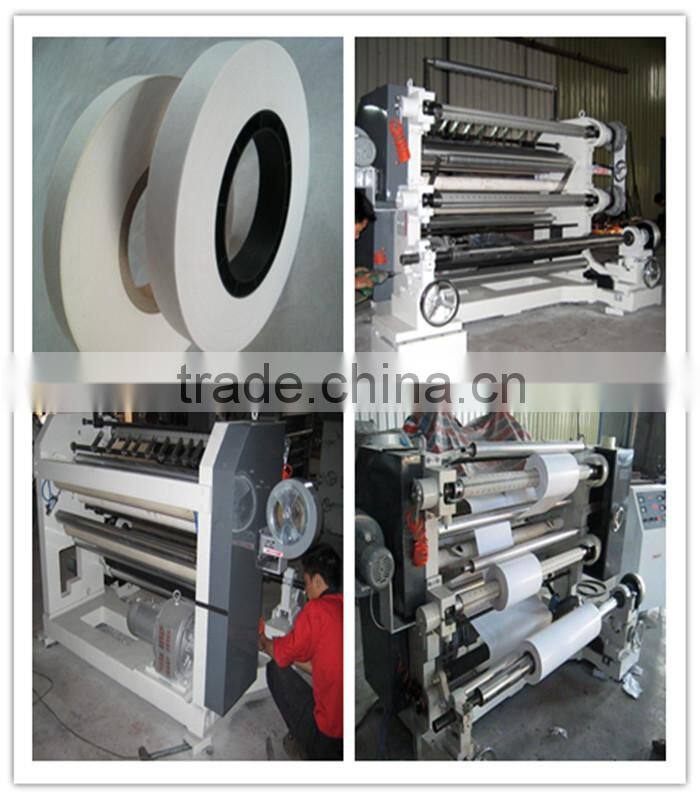

PRODUCTS WORKSHOP
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment

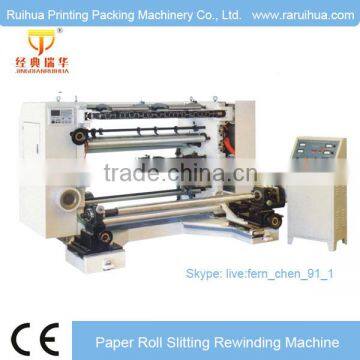

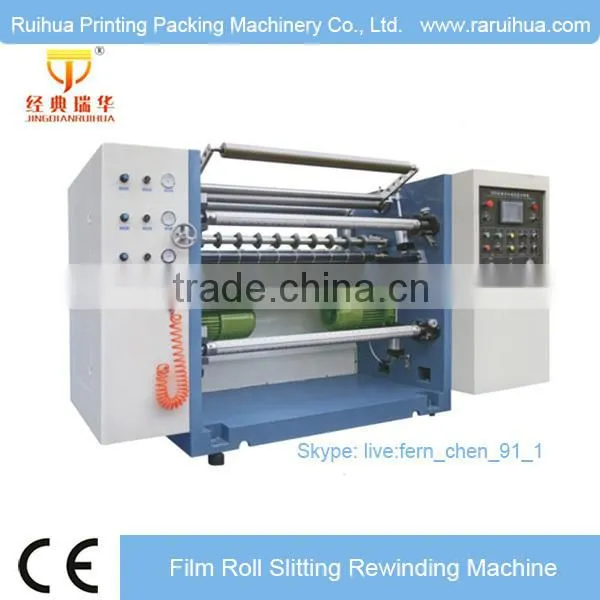

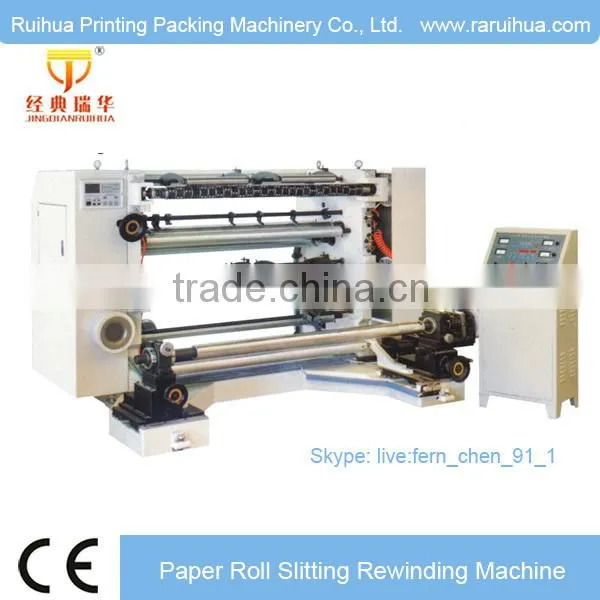

Automatic Vertical Photograph Paper Slitting Machine
Application:

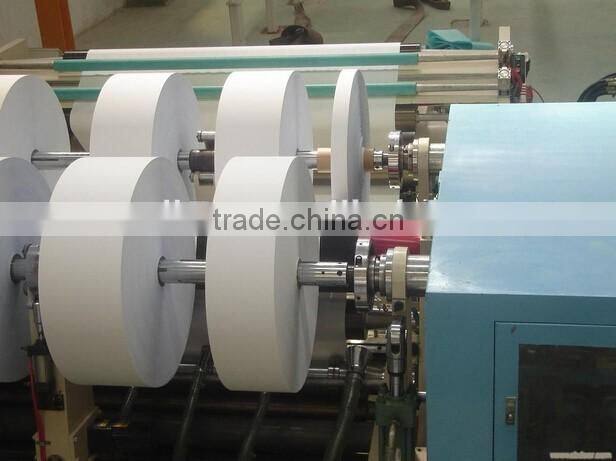

Automatic Vertical Photograph Paper Slitting Machine is suitable for slitting and rewinding such various
roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and
can cut edge, separate and cut material according to different requirements during production.
Performance and Features:
1. This machine is a kind of vertical slitting & rewinding machine
2. Independent master control panel, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material. 4. Air inflatable shaft for unwinding, automatic tension controller and magnetic powder brake for unwinding tension control
5. Double cam shaft for rewinding, Magnetic clutch control for rewinding tension control
6. Main motor with frequency converter for speed regulation
7. Equipped with rim charge conveying device
8. Automatic meter counting device
Type |
FQ-L700B |
FQ-L1100B |
FQ-L1300B |
Max. Width of Mother Roll |
700mm |
1100mm |
1300m |
MAX .Diameter of Mother Roll |
600mm |
600mm |
600mm |
Width of Final Roll |
700mm |
700mm |
700mm |
Rewinding diameter |
450mm |
450mm |
450mm |
Slitting width |
30~600mm |
30~1000mm |
30~1200mm |
Slitting and Rewinding Speed |
5~180m/min |
5~180m/min |
5~180m/min |
Tolerance of EPC |
<±0.5mm |
<±0.5mm |
<±0.5mm |
Total Power |
2.9Kw |
3.7Kw |
3.7Kw |
Weight of Machine |
1300kg |
1600kg |
1900kg |
Overall Dimension |
2100×1570×1530mm |
2500×1570×1530mm |
2700×1570×1530mm. |
1.We will test machine, before shipment,then make QUALITY CERTIFICATE From Inspection Department of Government,Then send picture and video to customers!
2.Packing :Stretch Film Packing with Wooden Packing ,Or Vacuum Packing
More details, pls contact us freely.
