EPC Edge Tracking Non Woven Cloth Slitting Rewinder

Name: EPC Edge Tracking Non Woven Cloth Slitting Rewinder
Brand: Ruihua Machinery
SKU: 112371325

US$ 8,000 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Slitting Rewinder

Computerized:

Yes

Ruian Ruihua Printing Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Slitting Rewinder

Computerized Yes

Place of Origin Zhejiang, China

Brand Name Ruihua Machinery

Model Number RH-SLT-1300

Voltage 380V 50Hz 3Phase

Power(W) 4Kw

Dimension(L*W*H) 2200*2100*1200mm

Weight 2200kgs

Certification CE&ISO for Non Woven Cloth Slitting Rewinder

Warranty One year guarantee time

After-sales Service Provided Engineers available to service machinery overseas

Product Description

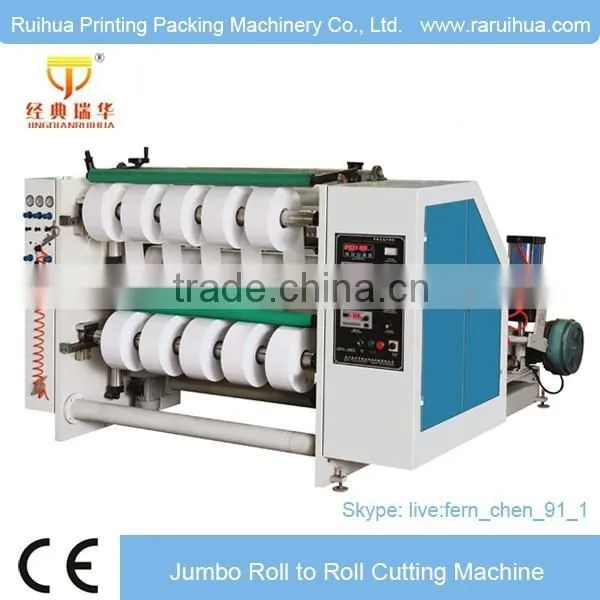

Non Woven Cloth Slitting Rewinder

Main Technical Parameter
Model Type	RH-SLT-1100
Max. Parent Web Width	1100mm
Max. Parent Web Diameter	800mm
Max. Rewinding Diameter	600mm
Min. Slitting Width	30mm
Thickness Range	Paper: 50-800gsm Film: 0.02-1.2mm
Max. Machine Speed	180m/min
Unwinding/Rewinding Shaft	3’’ Pneumatic Air Expanding Shaft
Slitting Precision	±0.15mm

SPECIFICATIONS:

Application Material

Label, Regular Paper,Kraft Paper, Non-woven Cloth, Film(PVC,OPP.PE, PET, BOPP), Bond Paper, etc.

Main

Non Woven Cloth Slitting Rewinder is with programmed control system and meter counter.
Non Woven Cloth Slitting Rewinder is with frequency inveter for motor control and frequency inverter motor, working more stable.
All transmission rollers have been dynamic/static balance treated.
Non Woven Cloth Slitting Rewinder is with emergency switch for urgent stop.
Non Woven Cloth Slitting Rewinder is with edge position control(EPC) to provide accurate slitting position
Non Woven Cloth Slitting Rewinder is with automatic braking device, and with 2 sets electromagnetic clutch
Non Woven Cloth Slitting Rewinder is with auto tension controller for unwinding tension control, and 2 sets semi-auto tension controllerfor rewinding tension control.
Non Woven Cloth Slitting Rewinder is with razor type blade or disc type blade according to different materials.
Non Woven Cloth Slitting Rewinder is with automatic meter counter which will stop the machine when reach the pre-set length.
Equipped with air blower and expulsion tube.
