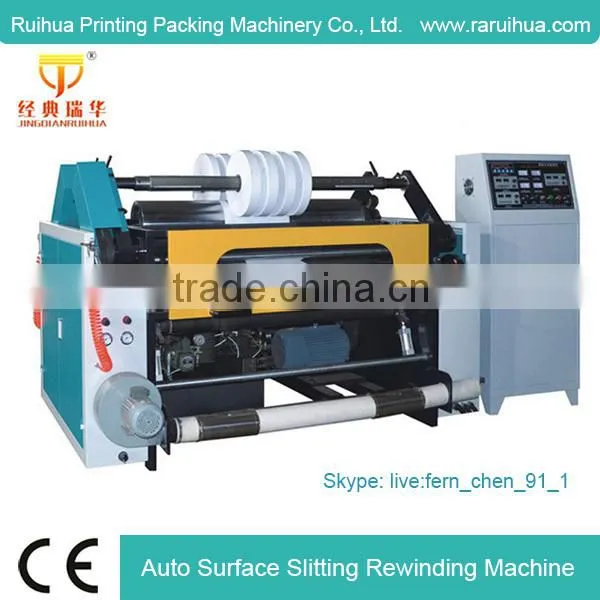

Inverter Motor Control Duplex Slitter for Cigarette Paper

Inverter Motor Control Duplex Slitter for Cigarette Paper photo-1
Inverter Motor Control Duplex Slitter for Cigarette Paper photo-2

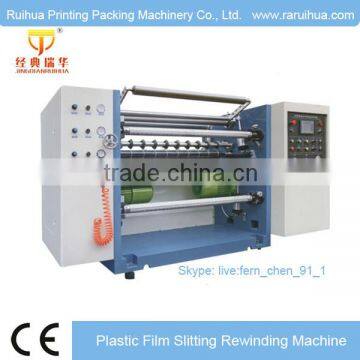

Inverter Motor Control Duplex Slitter for Cigarette Paper photo-3
Inverter Motor Control Duplex Slitter for Cigarette Paper photo-4

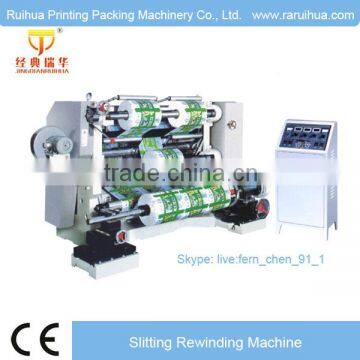

Inverter Motor Control Duplex Slitter for Cigarette Paper photo-5
Inverter Motor Control Duplex Slitter for Cigarette Paper photo-6
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Slitting Rewinder
Computerized Yes
Place of Origin Zhejiang, China
Brand Name JINGDIANRUIHUA
Model Number RH-SUR-1100
Voltage 380V 50Hz 3Phase 4Line
Power(W) 4Kw
Dimension(L*W*H) 2200*2100*1200mm
Weight 2200kgs
Certification CE&ISO for Duplex Slitter
Warranty One year guarantee time
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Duplex Slitter



Main Technical Parameters

Model

RH-SUR-1100

Max. width of unwinding

1100mm

Max. diameter of unwinding

1400mm

Max. diameter of rewinding

500mm

Min. width of slitting

30mm

Unwinding

Automatic pneumatic loading

Rewinding Shaft

2 pieces 3’’(76mm) Air Shafts

Total power

12kw

Weight (approx.)

3000kg

Overall dimension (L×W×H )

3800×3200×1500(mm)

Voltage

3Phase 4Line 380V 50Hz



Specifications

  • Duplex Slitter is with Mitsubishi PLC control and HMI.All the parameters are displayed on the monitor. Only material roll diameter and thicknessneedsto be setup, the PLC will give a proper parameters for machine running automatically.
  • Duplex Slitter is with two sets Inverter Motor with bar code, one for material feeding, the other for tension control.
  • Duplex Slitter is with two sets Frequency Inverters control the motors. One for material feeding, the other for tension control.
  • Duplex Slitter is with 3 sets of Magnetic Brake/clutch for the unwind/rewind tension control.
  • Three sets of auto tension control system are implanted the PLC, convenience operation.
  • All transmission rollers have been dynamic/static balance treated.
  • Duplex Slitter is with emergency switch
  • With automatic meter counter. Got to the setup data, machine stops and alarms
  • All the electric appliances has been gained the CE certificate.
