Auto Lift-up Loading Cash Register Roll Slitter Rewinder

Name: Auto Lift-up Loading Cash Register Roll Slitter Rewinder
Brand: JINGDIANRUIHUA
SKU: 112371387

US$ 8,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Slitting Rewinder

Computerized:

Yes

Ruian Ruihua Printing Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Slitting Rewinder

Computerized Yes

Place of Origin Zhejiang, China

Brand Name JINGDIANRUIHUA

Model Number RH-SLT-800

Voltage 3Phase 4Line 380V 50Hz

Power(W) 2.2Kw

Dimension(L*W*H) 2000*1800*1500mm

Weight 2000kgs

Certification CE&ISO for Cash Register Roll Slitter Rewinder

Warranty One year guarantee time

After-sales Service Provided Engineers available to service machinery overseas

Product Description

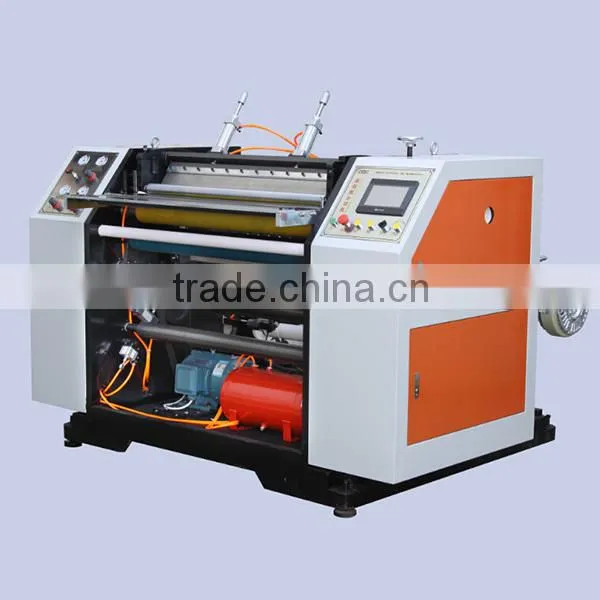

Cash Register Roll Slitter Rewinder

Main Technical Parameter
Model Type	RH-SLT-800
Max. Parent Web Width	800mm
Max. Parent Web Diameter	1000mm
Max. Rewinding Diameter	200mm
Min. Slitting Width	30mm
Thickness Range	Paper in 30-220gsm
Max. Speed	150m/min
Unwinding/Rewinding Shaft	3’’ Pneumatic Air Expanding Shaft
Slitting Precision	±0.15mm

SPECIFICATIONS:

Application Material

All kinds thermal paper, like ATM paper, cash register paper, fax paper, carbonless paper, till paper rolls, thermal label, bond paper, etc.

Main

Cash Register Roll Slitter Rewinder is with Siemens PLC and Siemens HMI(touch screen) control system, all the parameters are displayed on the monitor.
Cash Register Roll Slitter Rewinder is with frequency inverter(2.2kw) to control the motor.
Cash Register Roll Slitter Rewinder is with Siemens inverter motor(2.2kw) for feeding, and one motor for automatic loading.

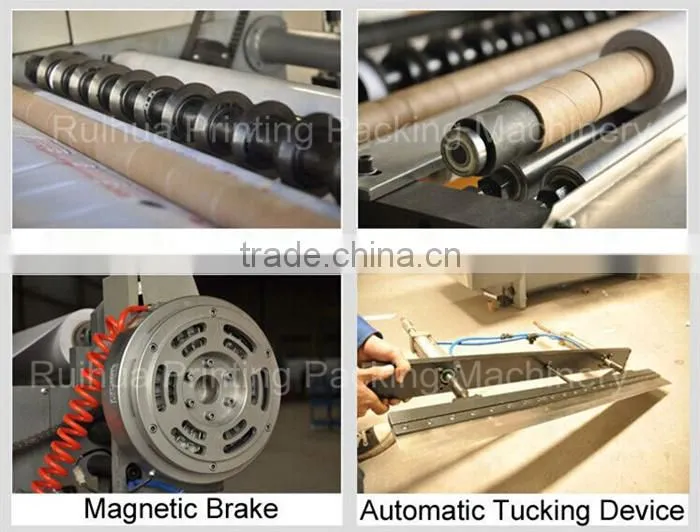

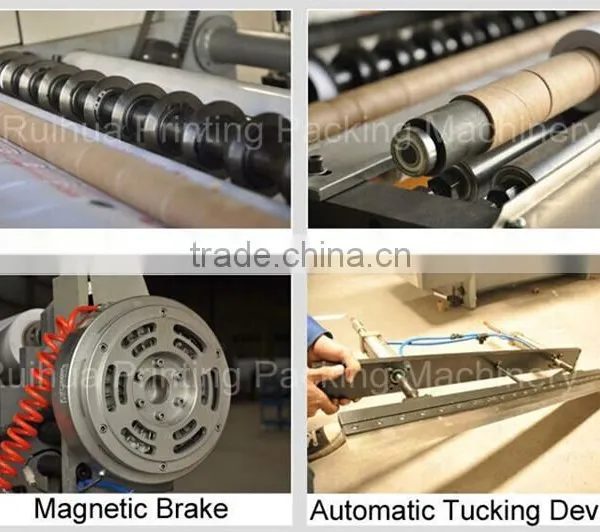

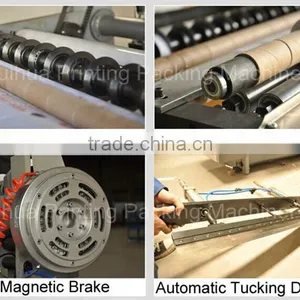

Cash Register Roll Slitter Rewinder is with Auto Tucker to tuck in the paper to cores automatically then rewinding.
Cash Register Roll Slitter Rewinder is with Red Line Marker which is used to make a red line to the paper roll near to the end.
Cash Register Roll Slitter Rewinder is with emergency switch.
All transmission rollers have been dynamic/static balance treated.
All the parts are treated by CNC processing to provide high precision.
