PLC Control Bank Receipt Paper Slitting Machine

Name: PLC Control Bank Receipt Paper Slitting Machine
Brand: JINGDIANRUIHUA
SKU: 112371281

US$ 5,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Slitting Rewinder

Computerized:

Yes

Ruian Ruihua Printing Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Slitting Rewinder

Computerized Yes

Place of Origin Zhejiang, China

Brand Name JINGDIANRUIHUA

Model Number RH-SLT-900

Voltage 3Phase 4Line 380V 50Hz

Power(W) 2.2Kw

Dimension(L*W*H) 2000*1800*1500mm

Weight 2000kgs

Certification CE&ISO for Bank Receipt Paper Slitting Machine

Warranty One year guarantee time

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Bank Receipt Paper Slitting Machine

Main Technical Parameter
Model Type	RH-SLT-900
Max. Parent Web Width	900mm
Max. Parent Web Diameter	1000mm
Max. Rewinding Diameter	200mm
Min. Slitting Width	30mm
Thickness Range	Paper in 30-220gsm
Max. Speed	150m/min

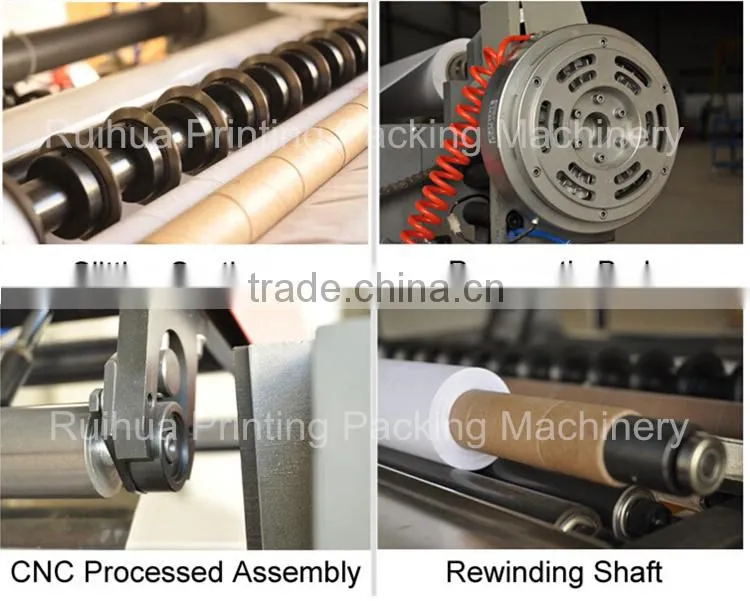

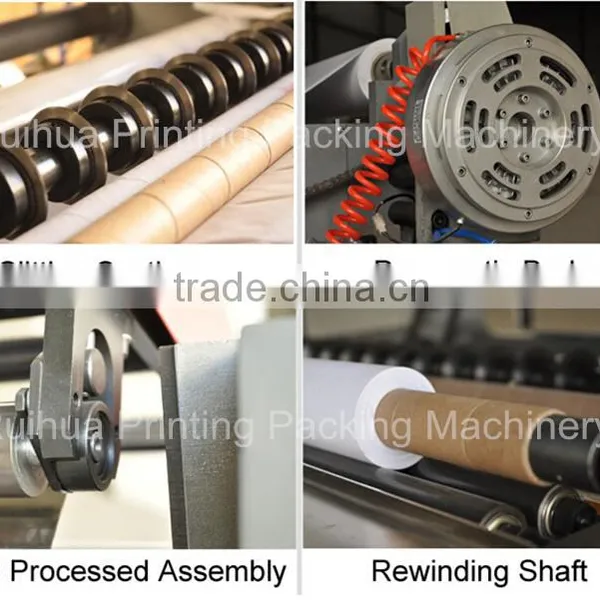

Unwinding/Rewinding Shaft	3’’ Pneumatic Air Expanding Shaft
Slitting Precision	±0.15mm

SPECIFICATIONS:

Application Material

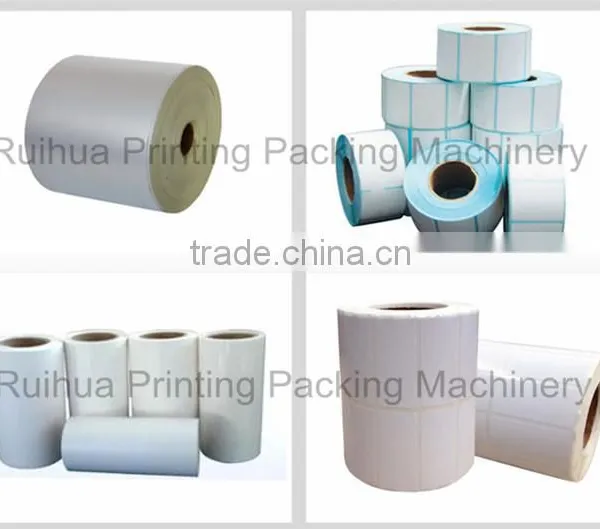

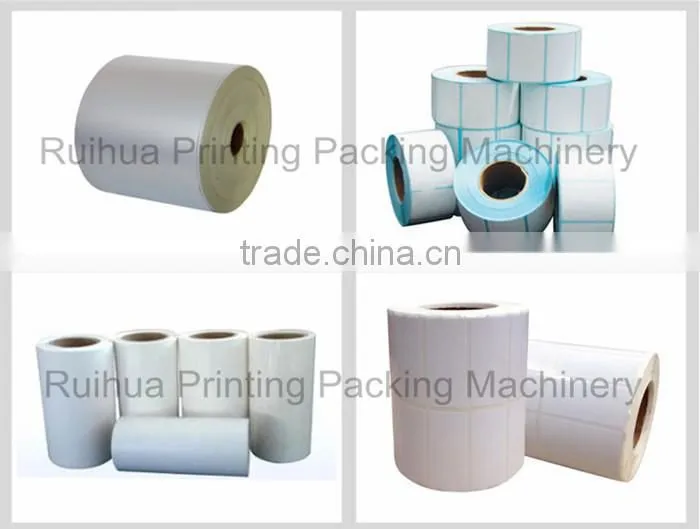

All kinds thermal paper, like ATM paper, cash register paper, fax paper, carbonless paper, till paper rolls, thermal label, bond paper, etc.

Main

Bank Receipt Paper Slitting Machine is with Siemens PLC and Siemens HMI(touch screen) control system, all the parameters are displayed on the monitor.
Bank Receipt Paper Slitting Machine is with frequency inverter(2.2kw) to control the motor.
Bank Receipt Paper Slitting Machine is with Siemens inverter motor(2.2kw) for feeding, and one motor for automatic loading.
Bank Receipt Paper Slitting Machine is with Auto Tucker to tuck in the paper to cores automatically then rewinding.
Bank Receipt Paper Slitting Machine is with Red Line Marker which is used to make a red line to the paper roll near to the end.
Bank Receipt Paper Slitting Machine is with emergency switch.
All transmission rollers have been dynamic/static balance treated.
All the parts are treated by CNC processing to provide high precision.
