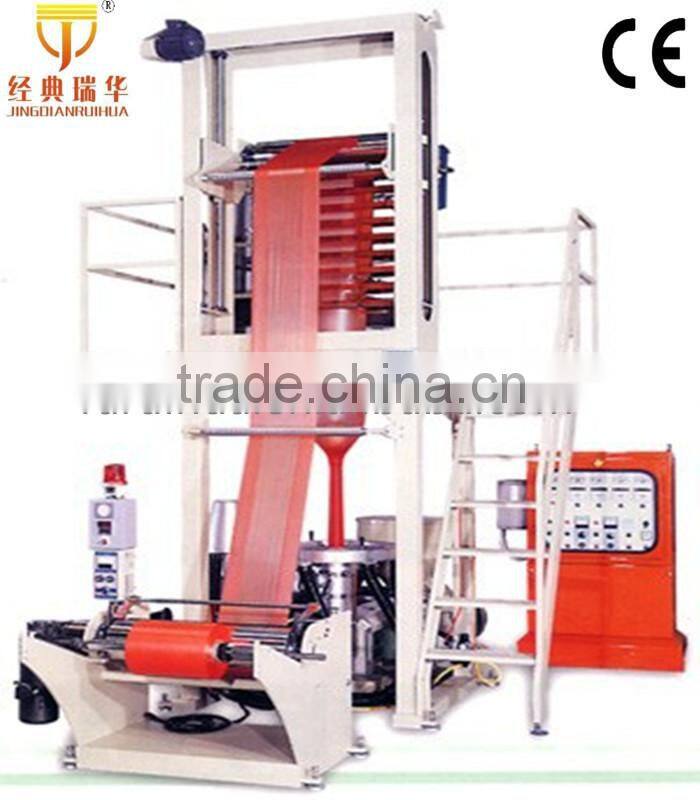

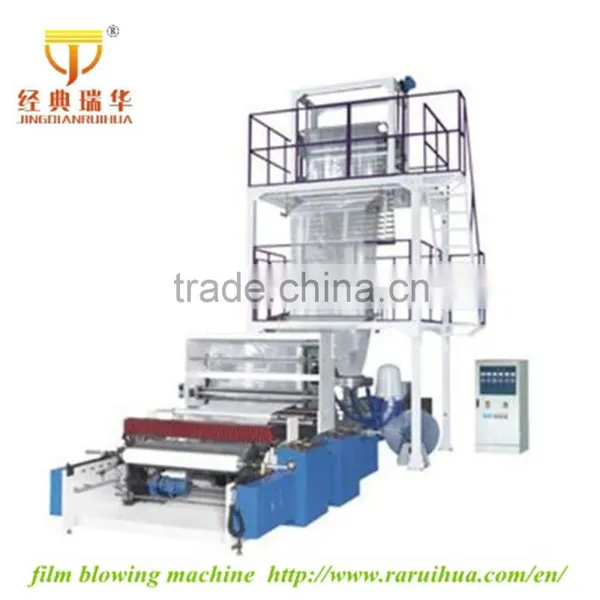

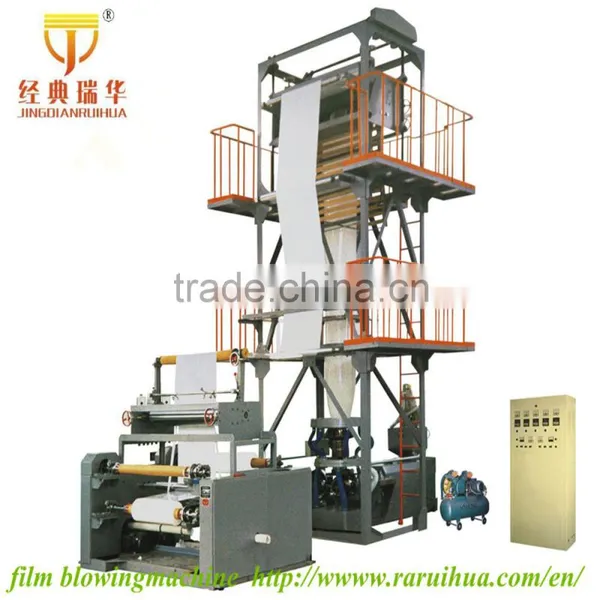

polyethylene plastic film blowing machine
.
Our machine are approved by ISO9001, 2000.
Characteristics:
It is used to blowing the various PE thermal shrink-ink membranes
which are applied extensively to food, medicine, beer bottle, material bottle,
box,case, cloth reel, floor, glass, all sizes of trays, pottery, issue, etc.
Feature:
1.Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.

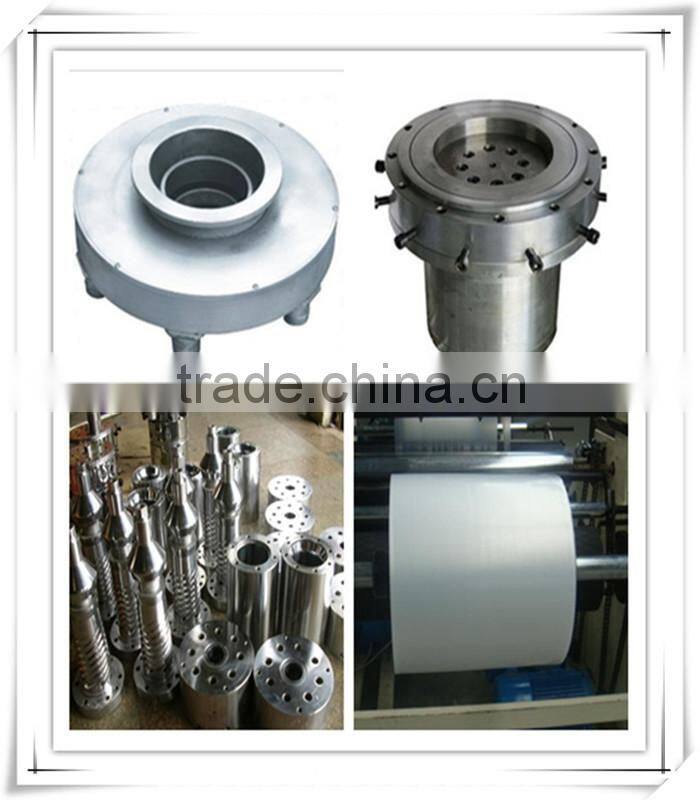

2.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.

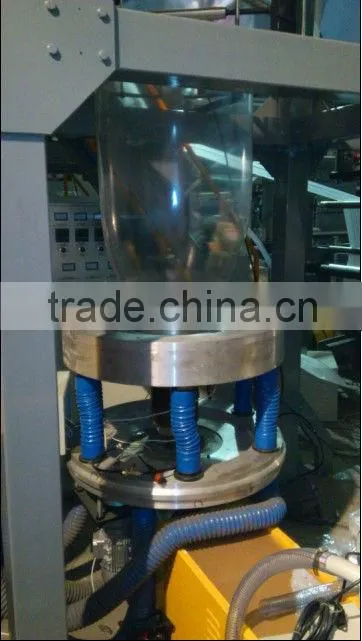

3.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll-changing easy.
USE:
Co-extrusion Rotating Film Blowing Machine is used for blowing the plastic laminated film of low density polyethylene(LDPE),high density polyethylene(HDPE) and linear low density polyethylene(LLDPE)etc,Which are widely used for packing liquid,printed base material,products for export and industrial products,etc.
Main Technical Parameter: |
Model |
SJ-50×2/FM800 |
SJ-55×2/FM1000 |
SJ-60×2/FM1200 |
Diameter of screw |
φ 50mm*2 |
φ 55mm*2 |
φ 60mm*2 |
Diameter of screw L/D |
L/D28:1 |
L/D28:1 |
L/D28:1 |
Screw rev |
15-150r/min |
15-150r/min |
15-150r/min |
Power of main motor |
11kw×2 |
15kw×2 |
18.5kw×2 |
Max. Extrusion Output |
50kg /h |
78kg /h |
100kg /h |
Single-face Thickness of film |
0.015 -0.10mm |
0.015 -0.10mm
|
0.015 -0.10mm |
Max. Reduced diameter of film |
800mm |
1000mm |
1200mm |
Heating power |
26kw |
30kw |
42kw |
Machine of weight |
about 3500kg |
about 4500kg |
about 6000kg |
Overall diameter(L×W×H) |
4200*3500*5000mm |
4600*3700*6000mm |
5000*3900*6500mm |

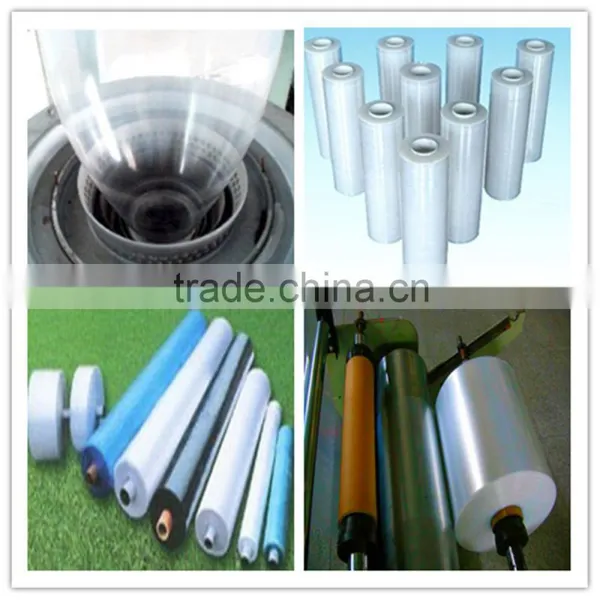

The sample
