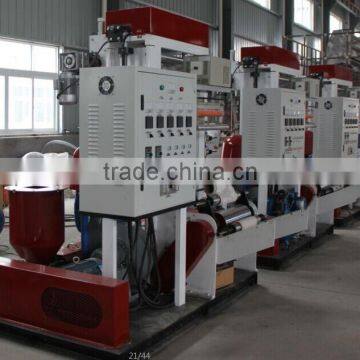

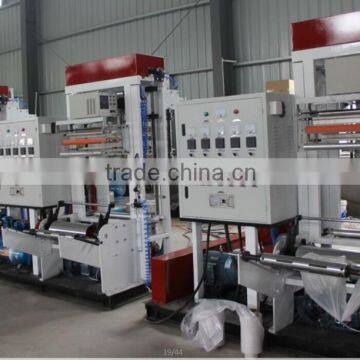

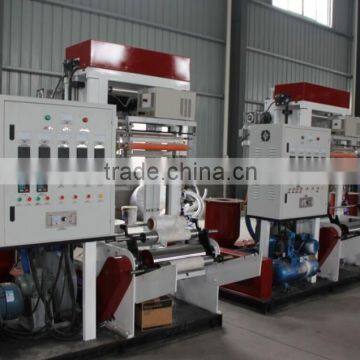

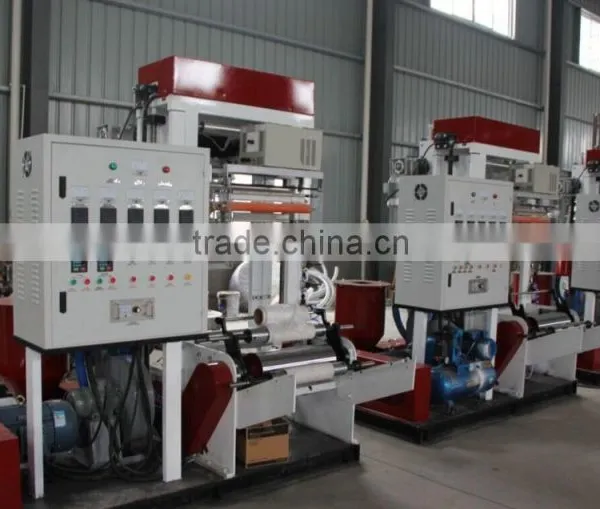

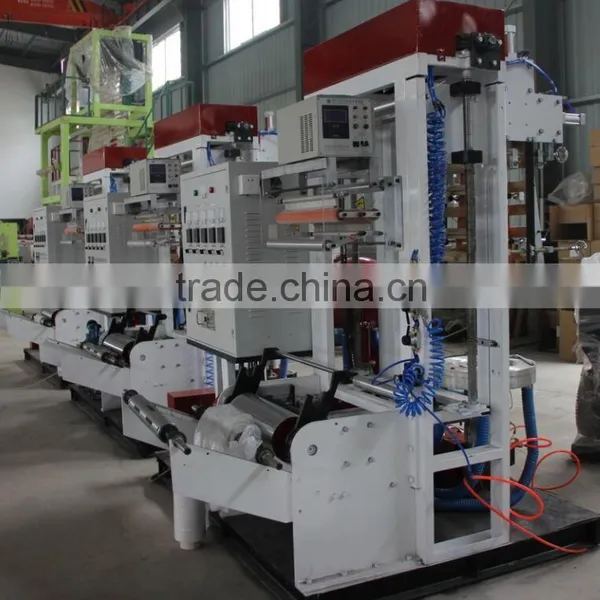

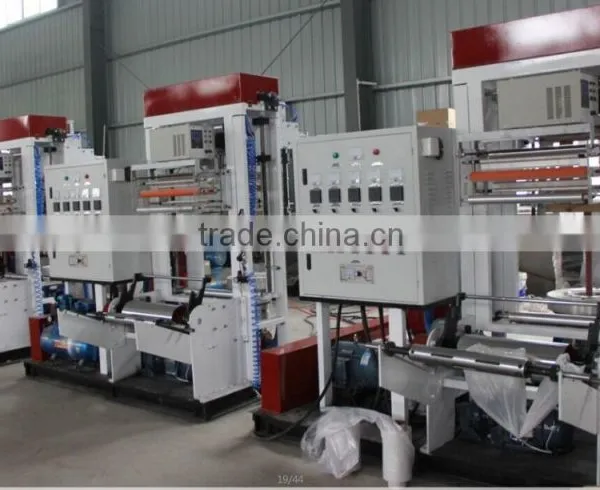

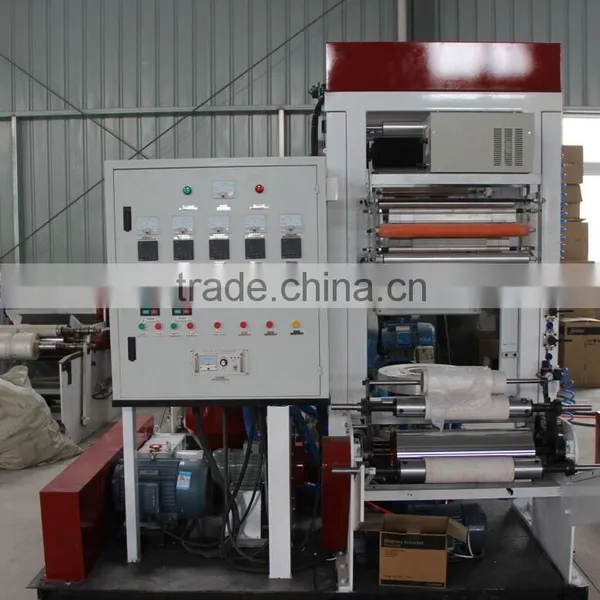

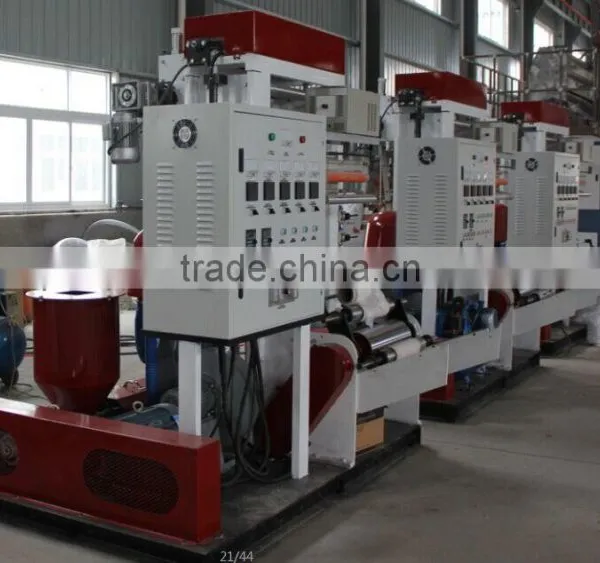

mini size film machine
Characteristics:
1.The cylinders and the screw stems of the extruder are made of high quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing.

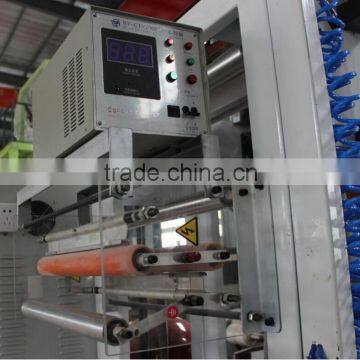

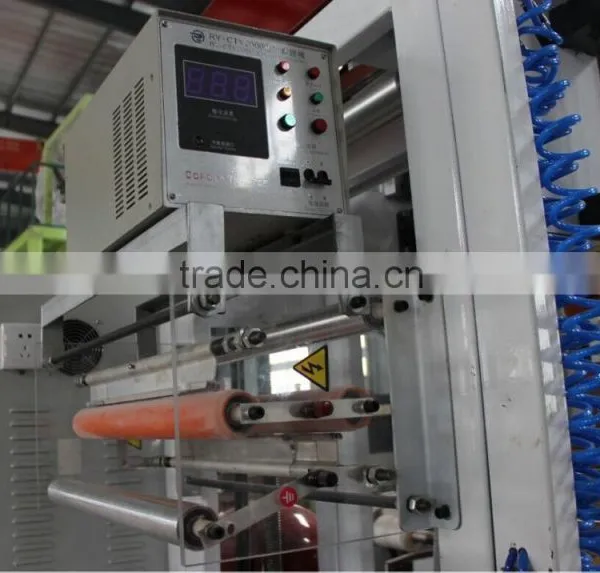

2.he auxiliary machine has a plat from working table for making operation easy and is equipped with bubble stabilizing ring.
Double-rolling and double-cutting coiling unit adopts torque motor to motor to keep proper tension and make even and roll-changing easy.
Use:
mini size film machine is used for blowing the various plastic film of low density polyethylene (LDPE),high density polyethylene (HDPE) and linear low density polyethylene(LLDPE) etc,which are widely used for packing liquid, industrial products,Garments and textile, Eat. And printing lamination
Main Technical Parameters:
Model |
SJ-35/FM400 |
SJ-60/FM1000 |
SJ-65/FM1200 |
Screw Diameter |
35mm |
60mm |
65mm |
Screw Ratio |
L/D28:1 |
L/D28:1 |
L/D28:1 |
Screw Speed |
10-100r/min |
10-100r/min |
10-100r/min |
Max. Extrude Output |
25kg /h |
65kg /h |
70kg /h |
Power of Main Motor |
7.5KW |
18.5KW |
22KW |
Specification of Die Head |
φ 100-φ 150mm |
φ 100-φ 180mm |
φ 120-φ 220mm |
Rotational Mode of Machine Head |
Continuous Rotation |
Continuous Rotation |
Continuous Rotation |
Single-side Thickness of Film |
0.01 -0.10mm |
0.01 -0.10mm |
0.01 -0.10mm |
Max. Folding Width of Film |
400mm |
1000mm |
1200mm |
Total Power |
26Kw |
30Kw |
42Kw |
Weight of Machine |
1300kg |
3000kg |
3800kg |
Overall Dimension(L×W×H) |
2500×2000×2300mm |
6500×2200× 4500mm |
6800×2400× 4800mm |
1. Machine customize is available |
2. 24 hours online service |
3. After sales service: engineers are available to service overseas. If you required, we will send our technician, and the forward-return tickets, food, hotel, and salary of USD70 per day would be paid by customer side. |
4. In the warranty time, we will provide free parts replacements and maintenance service. |
5. Our machine is with whole life technical support. And out of warranty time, any question, we will provide solutions ASAP. |
Q: Are you a factory or trading company? |
A: We are manufacturer, have our own factory with over 15 years experiences. From us, you not only get machines, also the best solutions. |
Q: What kind of quality certificate do you have? |
A: We have CE certificate, SGS, ISO, etc. |
Q: How does your factory do regarding quality control? |
A: Quality is our focus. From the beginning till the end of machine manufacture, we inspect every component before using. Machine will have tests after finished. |
Q: How about the delivery time? |
A: Usually, our machines can be delivered within 30 working days. |
Q: What’s the payment terms? |
A: Usually, we do T/T with 30% deposit, and 70% balance paid before machine delivery. And L/C, western union, etc. are also acceptable. |
Q:Where is your factory located? How can I visit? |
A: We are in Ruian City, Zhejiang Province, China. About one hour from Shanghai by air. All our clients, from home and abroad, are warmly welcome to visit us! |
More details, pls feel free to contact.
