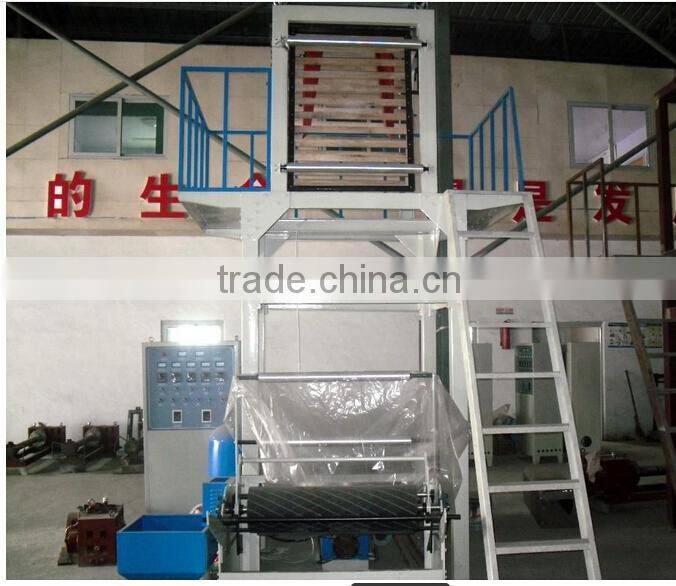

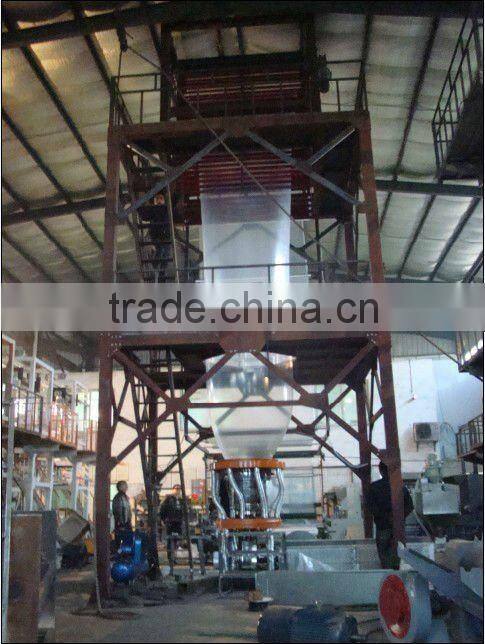

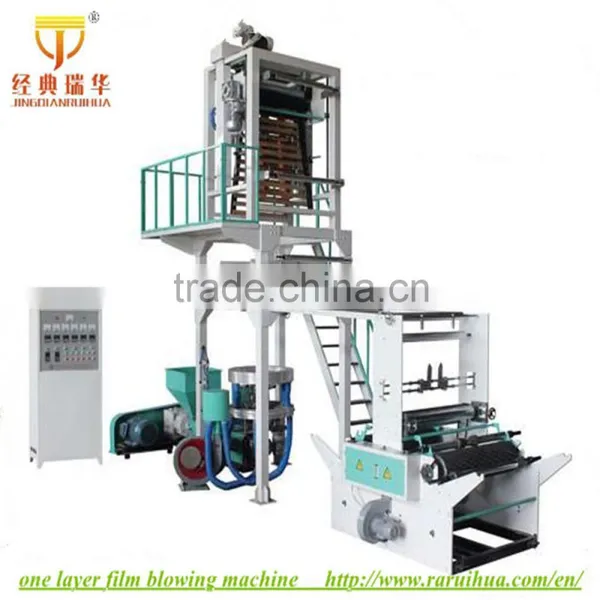

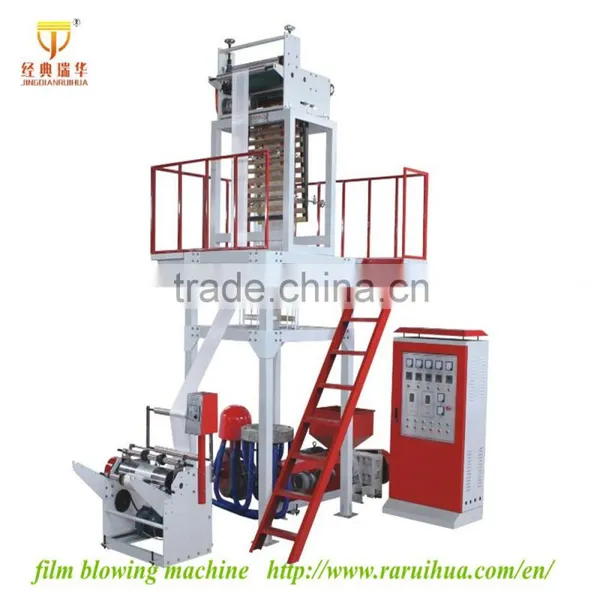

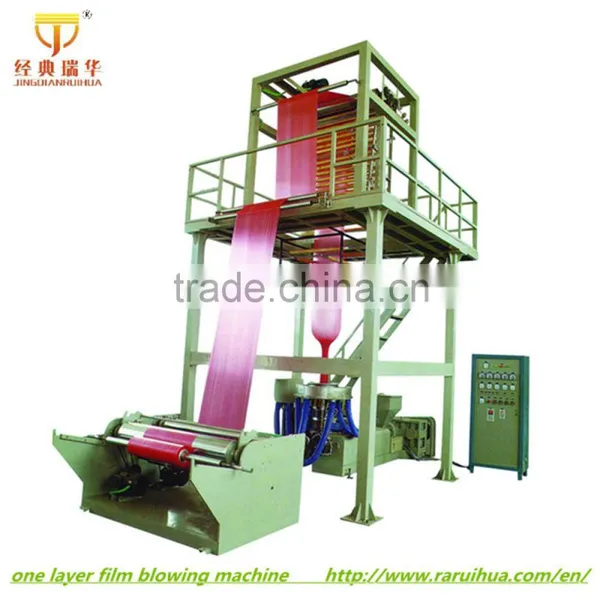

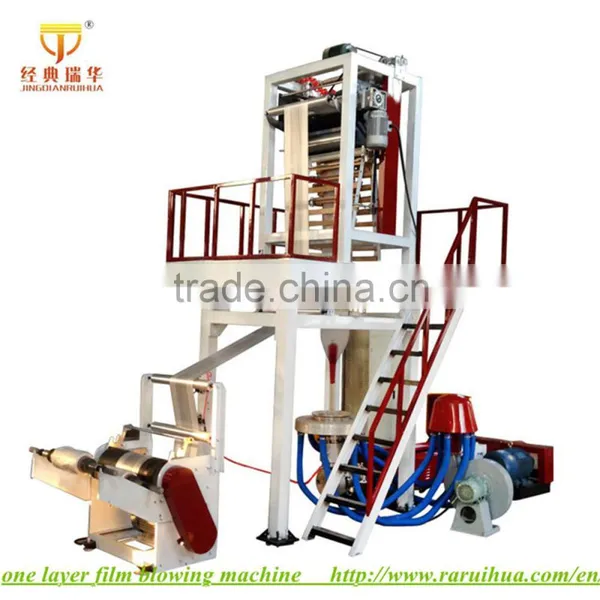

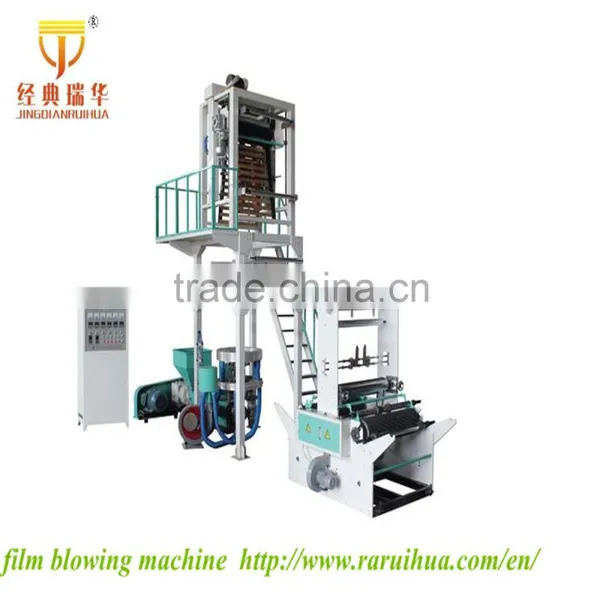

Monolayer Polyethylene Blow Membrane Machine, LD/HD blue film blowing machine
Characteristics:
The cylinder and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
The auxiliary machine has a platform working table for making operation easy.
The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Use:
Monolayer Polyethylene Blow Membrane Machine is used to blowing the various PE thermal shrink-ink membranes which are applied extensively to food, medicine, beer bottle, material bottle, box, case, cloth reel, floor, glass, all sizes of trays, pottery, issue, etc.
Main Technical Parameter: | ||||
Model |
SJ-50 |
SJ-55 |
SJ-60 |
|
Screw Diameter |
50mm |
55mm |
60mm |
|
Screw Ratio |
L/D30:1 |
L/D30:1 |
L/D30:1 |
|
Screw Speed |
10-100r/min |
10-100r/min |
10-100r/min |
|
Power of Main Motor |
11Kw |
15Kw |
18.5Kw |
|
Max. Extrusion output |
40kg /h |
55kg /h |
70kg /h |
|
Max. Folding Width of Film |
600mm |
800mm |
1000mm |
|
Single-sided Thickness of Film |
0.01 -0.10mm |
0.01 -0.10mm |
0.01 -0.10mm |
|
Total Power |
22Kw |
26Kw |
30Kw |
|
Weight of Machine |
2000kg |
2300kg |
2800kg |
|
Overall Dimensions(L×W×H) |
4000×1800× 3600mm |
4200×2000× 4000mm |
4600×2300× 4200mm |
|
