Specifications

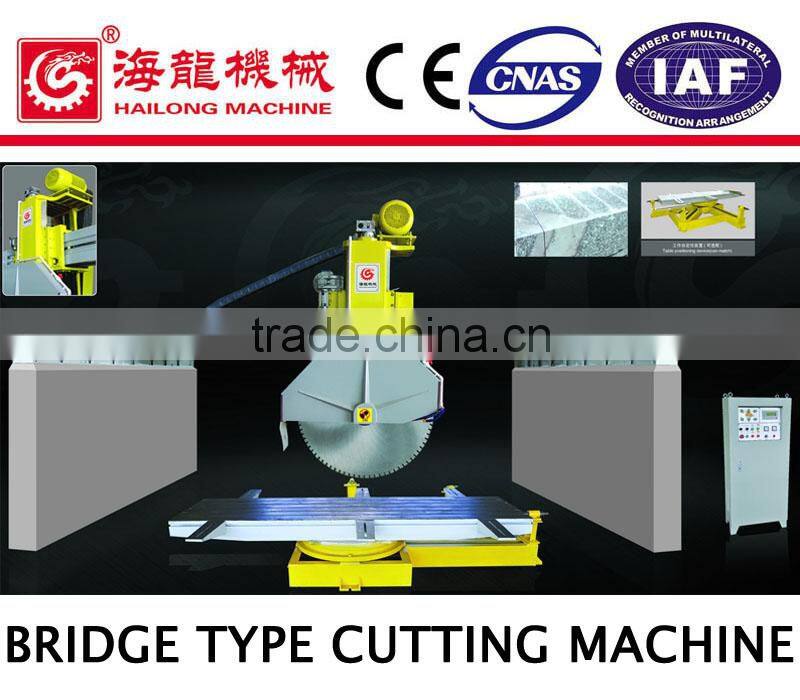

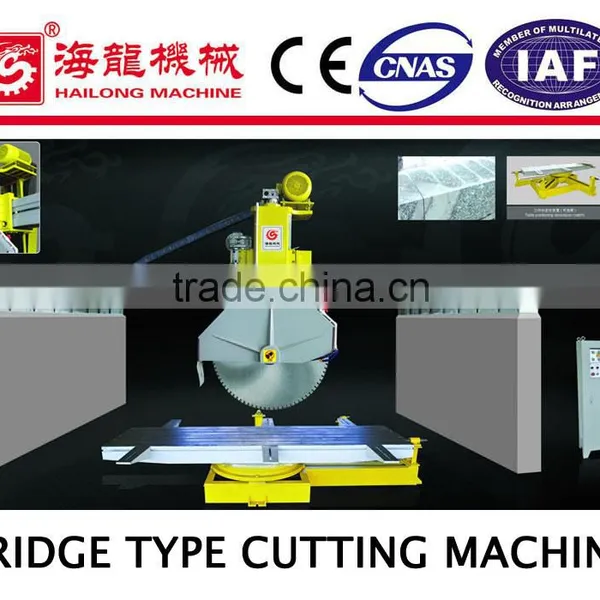

QSQ-1200 BRIDGE TYPE Tombstonve CUTTING MACHINE
BRIDGE TYPE MIDDLE BLOCK CUTTING MACHINE
SPECIALIZED IN
It is ideal for processing of curb stone, monument and high-value stone
Max cutting Thickness:
QZQ-600: 180mm
QZQ-1200: 450mm
Production Ability:
Size:400mm thickness
Granite of hard rigidity: 100M2 / 24h
WORKING THEORY:
- It is equipped with oil-immersed guide way for crossbeam and edge beam
- It is equipped with Double screw drive elevation system. Stones are cut automatically individually,
- Blade input speed flexibly adjusted by variable frequency adjustable speed system according to slab character and an infrared ray cutter aligner installed. Working table can be rotated in 360 °, thus locating precisely. The machine has excellent performance.
TECHICAL PARAMETER
ITEM NO. |
QZQ1200 |
MAX. BLADE DIAMETER |
600-1200 |
MAX. VERTICAL STROKE |
630 |
WORKING ROTATION DEGREE |
0°-360° |
WEIGHT |
6500KGS |
TOTAL POWER |
23.2KW |
POWER OF MAIN MOTOR |
18.5KW |
WORK TABLE SIZE |
3000X800 |
WATER COMSUMPTION |
4m3/h |
DIMENSION(LXWXH) |
6500X4000X4500 |
Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles
Two units in one 40’ GP container
Delivery time :15-45 days from production and 1-2weeks from stock
Guaranty time for elements: half an year
Payment: 30% by T/T in advance as deposit, 70% upon dispatch
