Specifications
1. 1-9 multi blades (5.5~6.5mm thickness)2.More than 150 squre meter/ day production
3.cut 1.25 meter deep

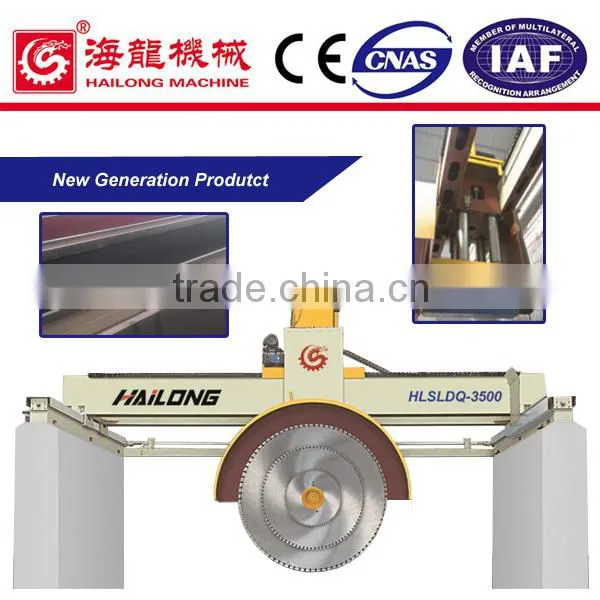

Bridge Saw Double Beam Hydraulic Cylindrical Multi Blades Block Cutting Machine
Function:
This Granite block Cutting Machine is applicable for cutting stone block into slabs and tiles, featured by precise cutting, high efficiency and easy operation. It can cut with combination of large, middle-size and small blades or single large blade, ideally used for cutting blocks.
TECHNICAL CHARACTERISTICS for your reference:
1,Using V Groove for the beam movement
2,Four solid columns,Diameter:150mm/6 inch,Hydraulic moving system
3,Using Screw rod and OMRON encoder for Slicing technique.
4,Main Motor:Xiamen brand or According to Customer Demand
5,Electric Control System:According to Customer Demand 6,Using Casting Cross Beam,NOT Welding iron slabs with cement inside,for long term use.
Production Ability:
Granite of medium rigidity: 200M2 / 24h
Granite of hard rigidity:150 M2 / 24h
Marble: 150-220M2 / 24h
Suggested Blade combination:
According to Customer demand.
Features:
I. It is equipped with oil-immersed guide way for crossbeam and edge beam. while the slide track adopt dust proof to ensure the precise guide movement & long lifespan
II. Crossbeam is made of strong cast iron to avoid distortion after long term use.
III. It is equipped with hydraulic controlled elevation system. Blocks are cut automatically individually
IV. Blocks are cut directly on the ground or on block table as required, with blade input speed flexibly adjusted by variable frequency adjustable speed system according to slab character.
V. It is under computer control and works by program automatically.
VI. Easy operation but with high production
TECHICAL PARAMETER:
| Model | HLSLDQ-3500 |
| Blade Diameter | 1600-3500mm |
| Max.Vertical Stroke | 1250-1500mm |
| Max.Cutting Length | 3300mm |
| Max.Cutting Width | 2500mm |
| Main Motor Power | 37/45/55kw |
| Water Consumption | 8m3/H |
| Dimension | 7500*4000*4200mm |
| Weight | 16.5Tons |
Packaging & Shipping
Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles
Two units in one 40’ GP container
Delivery time :15-45 days from production and 1-2weeks from stock
Guaranty time for elements: half an year
Payment: 30% by T/T in advance as deposit, 70% upon dispatch
