Marble Gangsaw Machine Block Cutting 100 Blades Quality Choice

Marble Gangsaw Machine Block Cutting 100 Blades Quality Choice thumbnail-1
Marble Gangsaw Machine Block Cutting 100 Blades Quality Choice photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Marble
Contact Supplier Request Quote Chat Now
Fujian Hailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Marble
Production Capacity 60-100 sq.mtr/hour
Place of Origin Fujian, China
Brand Name Hailong
Model Number HLGS100
Voltage 440V(Accoding to customer demand)
Power(W) 132KW
Dimension(L*W*H) 12650*5200*3800
Weight 60 Tons
Certification CE/CNAB
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Gangsaw machine for processing marble slabs 80 baldes 2100mm width with CE approved







Company Information









Our Services



Marble gangsaw machine Block cutting 100 blades




Packaging & Shipping







Packaging Detail:

PLASTIC WEAVEN BAGS AND POLYWOOD CASES

Delivery Detail:

WITHIN ONE MONTH









Product Description

Specifications

PROFESSIONAL STONE MACHINES FOR PROCESSING STONE/Marble/Quartz SLABS

 HLGS100 GANG SAW FOR MARBLE

Description:

A blade stoke of 800mm facilitates the evacuation of slurry which results from the sawing of marble and, in particular, of non-crystalline materials, preventing the blades from clogging while ensuring a high quality cut. This is particularly important when sawing defective and fractured blocks.

An 800mm stroke also means fewer cycles/minute and consequently less mechanical stress on the relative components.



ARTICULATED RECTILINEAR GUIDES

Movement of blade holder frame on articulated

guides.This system reduces to a minimum problem ofthe blade holder frame.It greatly reduces maintenance costs because it does not require replacement like the traditional slideways which are subject to continuous wear.



EQUAL DISTRIBUTION OF MECHANIXAL

THRUST OVER ALL MACHINE COMPONENTS

 Advantages of two connecting rods:

· All the energy and mechanical thrust towards the blade holder is spread on two connecting rods and two cranks instead of just one.

· The two connecting rods which are attached to the extremes of the blade holder help the articulated guides to ensure that it’s movement remains perfectly rectilinear without any deviation. This is especially important when there are more blades on one side of the frame(the machine applies greater pressure where there are more blades),and when the blocks are of different heights(because initially more pressure would be applied on the higher block).

THE ROTATING LEAD NUTS which worm screws of the block trolley platform are situated above the columns and lubricated automatically.



BATTERY UNIT

Details of the battery unit. The battery supports have been designed to allow easy maintenance and facilitate the replacement of the roller bearings without having to break the cement foundations. The flywheel weights 8 tons and has a diameter of 3300mm



 TECHNICAL DATA:

max.block size:

3200(L)×2500(W)×2100(H)mm

Blades number

100

main motor power:

132kw

Up-down motor

11kw

Table motor

1.5kw

Transfer table motor

1.5kw

Saw frame reciprocating frequency

90t/min

Rotating speed of flying wheel

90 rpm

flying wheel shaft diameter

280mm

speed

8-32cm/h

stroke of the blades:

800mm

Up-down stroke

2100mm

blades length

4400mm

water consumption

10L/min/blade

total weight:

60ton

dimensions(mm):

12650 (L)×5000(W)×3800(H)



STANDARD ACCESSORIES:

1

pcs

Motorized block trolley, dimensions: 3.2x2.05m, carrying capacity: 30 tons.

1

pcs

Electrical control Board

1

sets

Hydraulic tensioner and oil pump

80

sets

Hydraulic hangers for blades

160

pcs

Blades spacers (choose one type from 22/32mm)

8

pcs

tightening chain

4

pcs

tightening plate

1

pcs

Dynametric Spanner

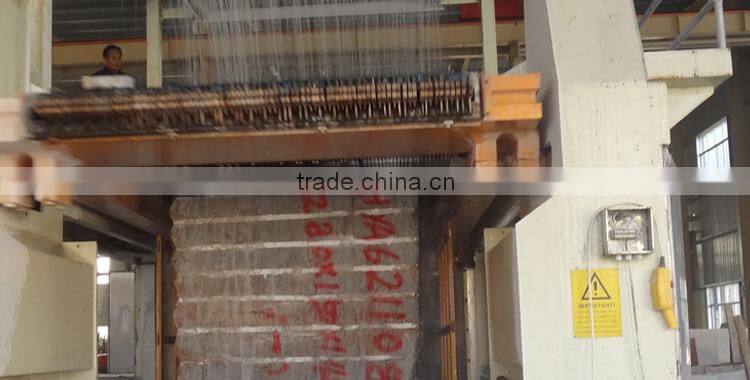

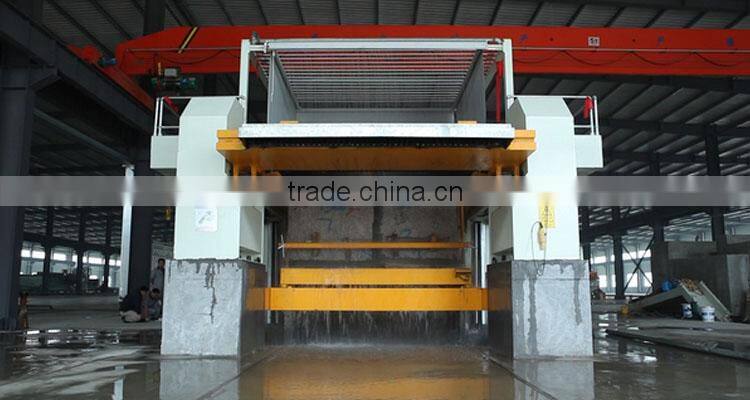

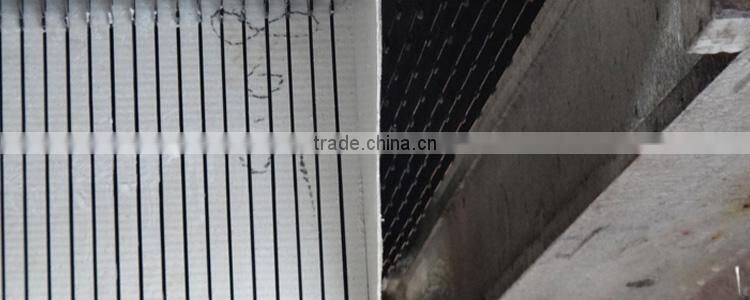

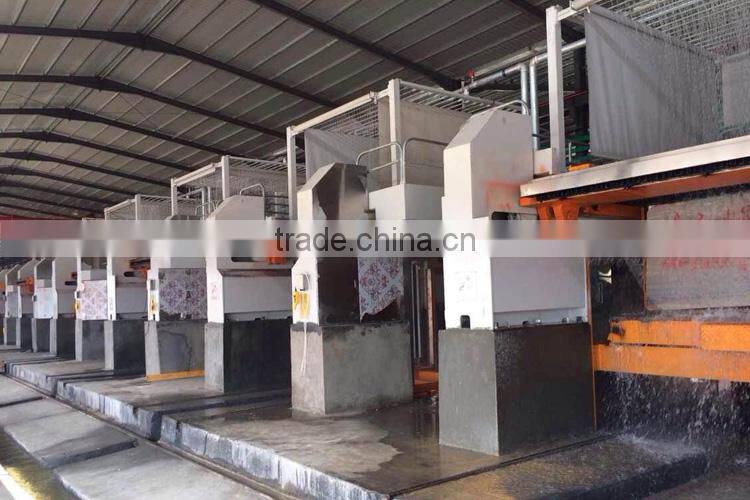

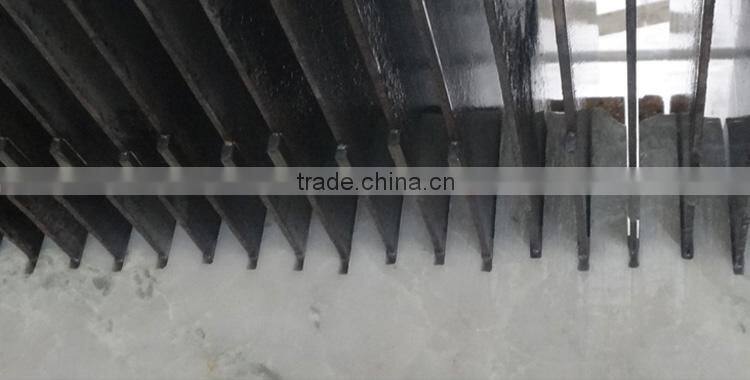

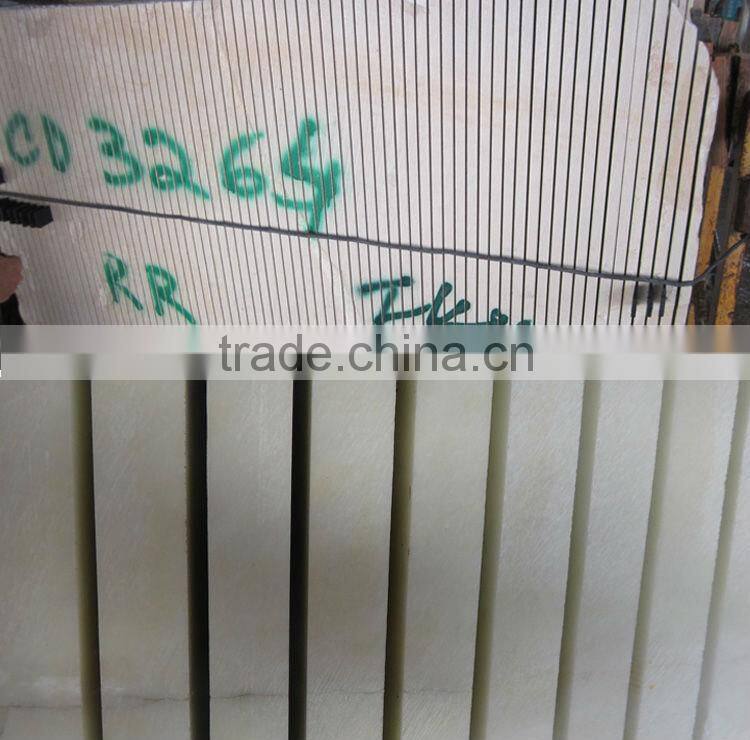

 Marble gangsaw machine Block cutting 100 bladesMarble gangsaw machine Block cutting 100 blades

Marble gangsaw machine Block cutting 100 blades

Marble gangsaw machine Block cutting 100 bladesMarble gangsaw machine Block cutting 100 bladesMarble gangsaw machine Block cutting 100 blades
