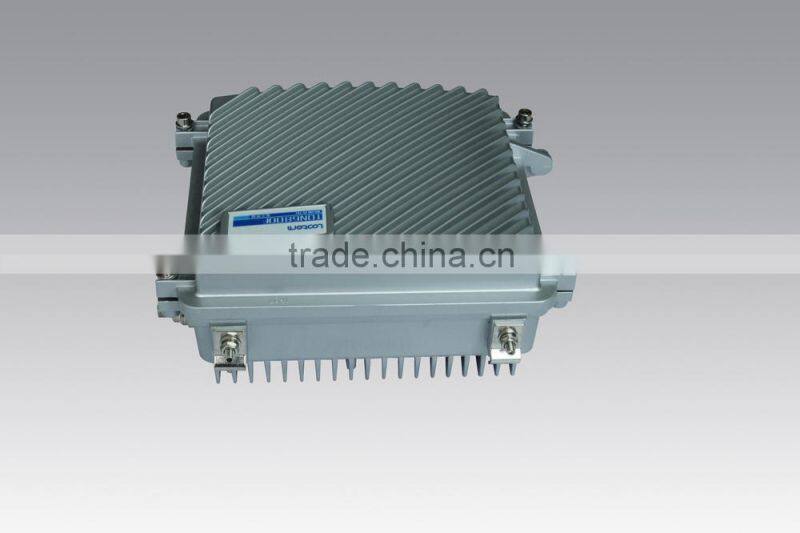

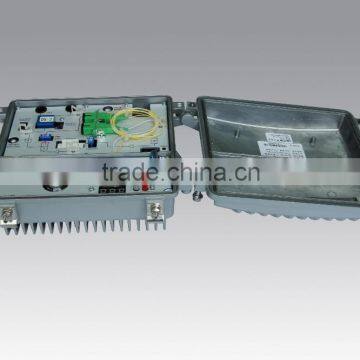

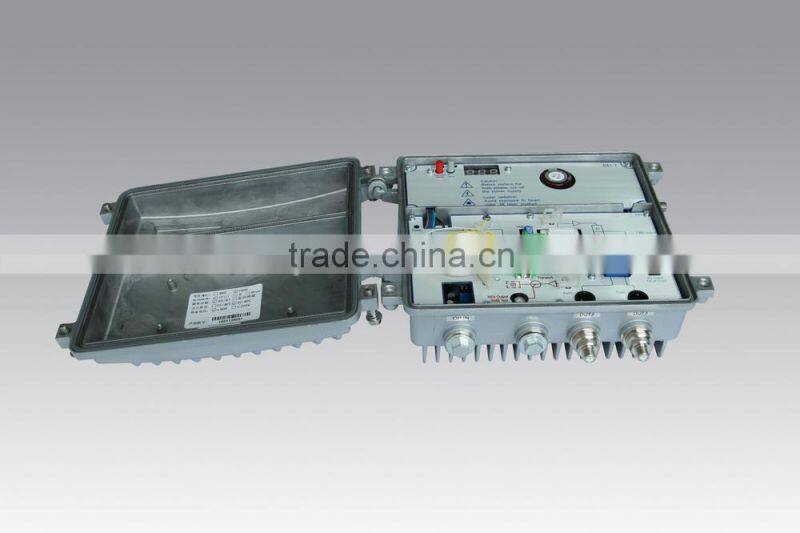

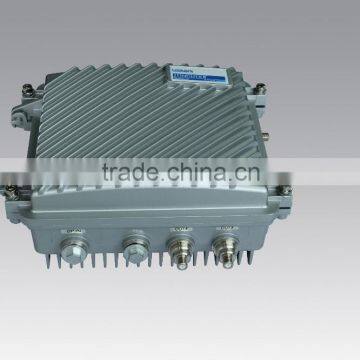

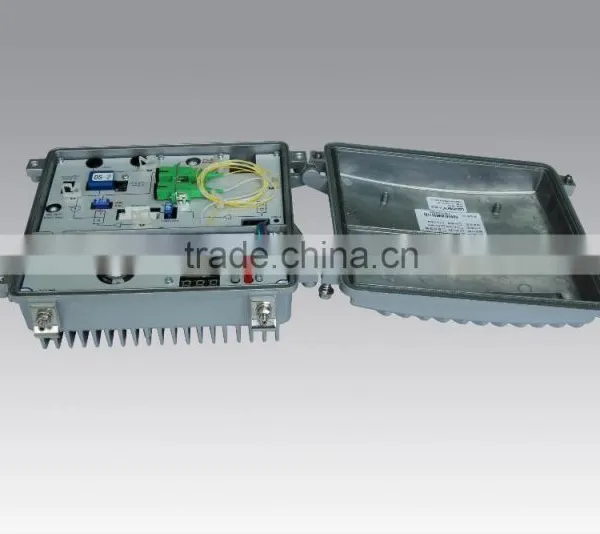

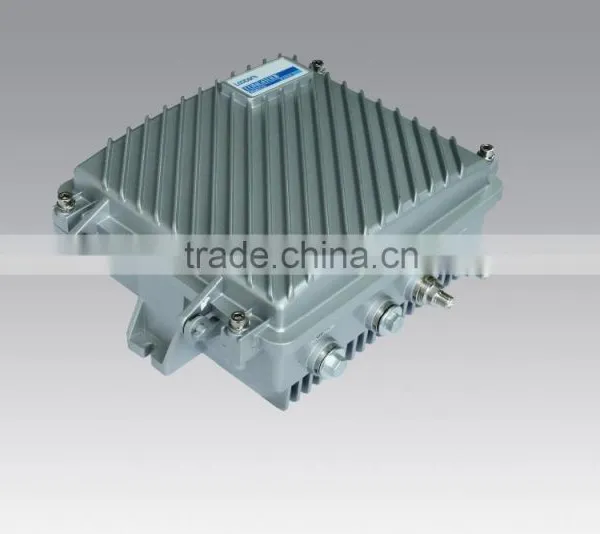

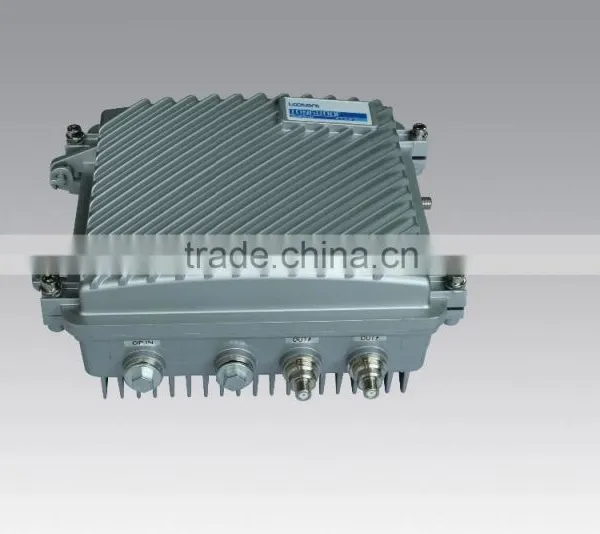

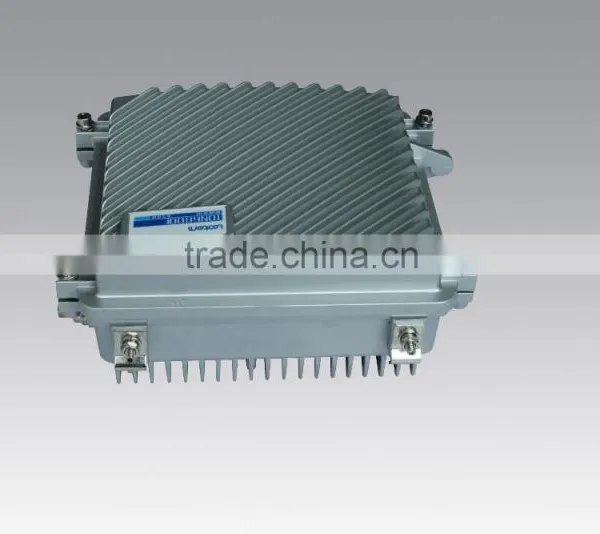

CATV optical receiver TON6800F LED dual outputs Fiber Optical Node CATV optical receiver
Features
- High precision digital LED Indicator, display constantly the forward optical input power level and reverse optical output power.
- Broad range optical input power (-7dBm~+1.5dBm)
- High RF gain and high RF output level (112dBμv)
- Two output ports,DS-2,DC-8,12,16 available
- High power GaAs or power -double technology at output stage
- 220V and 60V power supply available
- 750MHz and 862MHz bandwidth available
- Broad range AGC function (-6dBm~+2dBm) optional. Optical input power AGC (Automatic Gain Control) function, keep RF output level stable(±0.5dB) when optical input power change within the range -6dBm~+2dBm.

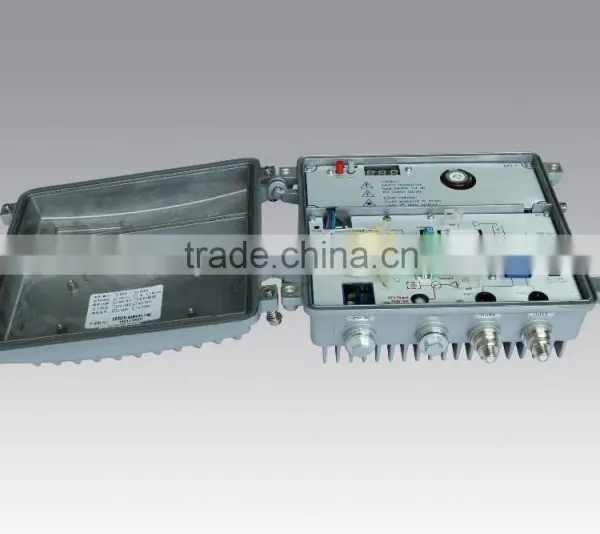

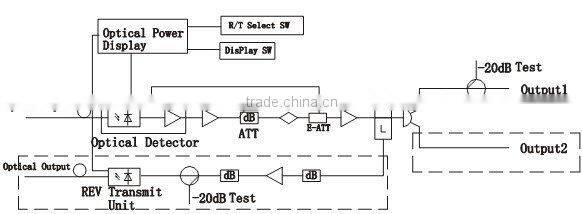

Diagram
Specifications
Forward Path
Item |
Unit |
Specification |
Remark |
|
|
Optical
|
Optical Wavelength |
nm |
1310 or 1550 |
|
Optical Input Power Range |
mw |
+1.5- -7 |
|
|
Optical Connector Type |
|
SC/APC |
Others on request |
|
C/N |
dB |
51 |
Connected with standard optical transmitter, tested at predicted optical link loss, OMI of optical transmitter 3.6%;loaded 59 PAL-D analogue TV channels, and 33 QAM64 digital CW; the level of digital CW lower 6dB than analogue’s |
|
CTB |
dBc |
5 |
||
CSO |
dBc |
60 |
||
RF |
Bandwidth |
MHz |
47/87~750/862 |
|
Flatness |
dB |
±1.5 |
|
|
RF Return Loss |
dB |
<-16 |
@550MHz |
|
dB |
<-14 |
@862MHz |
||
RF output level |
dBuV |
112 |
@optical Input power -2dBm, and flat output |
|
Reverse Path
Item |
Unit |
Specifications |
Remark |
|
DFB |
FP |
|||
RFInput Level |
dBmV |
35 |
35 |
|
Output Optical Power |
mw |
1~4 |
>1 |
|
Input Return Loss |
dB |
<-16 |
<-16 |
|
Flatness |
dB |
±1,(5~200MHz) |
±1,(5~200MHz) |
|
C/N |
dB |
>50 |
>45 |
1)Four Signals Test:19.25.31.37MHz 2)Two Signal Test: 13,19MHz 3)Test Condition: standard optical receiver, 10dB optical link loss. |
CSO |
dBc |
<-51 |
<-45 |
|
CTB |
dBc |
<-55 |
<-45 |
|
Optical Wavelength |
nm |
1310 |
1310 |
|
Work Temperature |
°C |
-20~+85 |
-20~+85 |
|
