Help CenterD Series Forklift Metal Dump Bin
Related Products

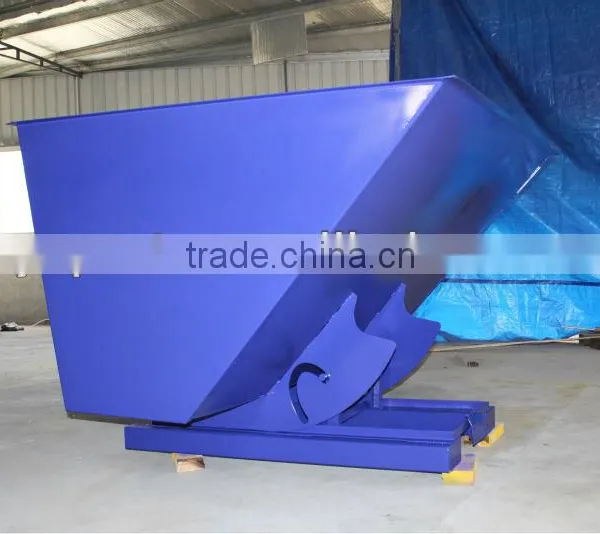

forklift metal dump bin
1.Material: steel
2.Self Locking Return
3.Robot Welded & Sprayed
4.Manual or Automatic Locking
D Series Forklift Dump Bin
Function & Application
Wide application, super-low height design, easy-operation, safe and pratical
It is best tool for collecting wastes, such as lathe, cutting machine and sawing machine, etc.
By chain to connect dumper and forklift, avoiding falling during the operations.
Both rubber and cast iron wheels are available for option.
Unique Integrated Box Technology
Self Locking Return
Surface treatment: painted or galvanized finish.
Specification
Model No. |
Volume Capacity |
Weight Capacity |
Overall Dimensions |
Steel Ga. |
Fork Pocket Centers |
Weight |
D-200-LD |
2 Cu. Yd. |
2,000 lbs. |
56 1/4"W x 61"D x 52"H |
12 Ga. |
28" |
725 lbs. |
D-250-LD |
2.5 Cu. Yd |
2,000 lbs. |
69 1/2" W x 61" D x 52" H |
12 Ga. |
28" |
760 lbs. |
D-300-LD |
3 Cu. Yd. |
2,000 lbs. |
81 1/2"W x 61"D x 52"H |
12 Ga. |
28" |
991 lbs. |
D-200-MD |
2 Cu. Yd. |
4,000 lbs. |
56 1/4"W x 61"D x 52"H |
10 Ga. |
28" |
725 lbs. |
D-300-MD |
3 Cu. Yd. |
4,000 lbs. |
81 1/2"W x 61"D x 52"H |
10 Ga. |
28" |
991 lbs. |
D-33-HD |
1/3 Cu. Yd. |
4,500 lbs. |
26"W x52"D x 38"H |
7 Ga. |
18" |
412 lbs. |
D-50-HD |
1/2 Cu. Yd. |
4,500 lbs. |
33 1/4"W x 52"D x 38"H |
7 Ga. |
18" |
452 lbs. |
D-75-HD |
3/4 Cu. Yd. |
4,500 lbs. |
31 1/4"W x 61"D x 42 3/4"H |
7 Ga. |
18" |
560 lbs. |
D-100-HD |
1 Cu. Yd. |
5,000 lbs. |
41 1/4"W x 61"D x 42 5/8"H |
7 Ga. |
18" |
622 lbs. |
D-150-HD |
1 1/2 Cu. Yd. |
5,000 lbs. |
43 1/4"W x 61"D x 52"H |
7 Ga. |
28" |
747 lbs. |
D-200-HD |
2 Cu. Yd. |
5,500 lbs. |
56 1/4"W x 61"D x 52"H |
7 Ga. |
28" |
777 lbs. |
D-250-HD |
2 1/2 Cu. Yd. |
5,500 lbs. |
69 1/4"W x 61"D x 66"H |
7 Ga. |
28" |
900 lbs. |
D-300-HD |
3 Cu. Yd. |
5,500 lbs. |
81 1/2"W x 61"D x 52"H |
7 Ga. |
28" |
991 lbs. |
D-100-LD |
1 Cu. Yd. |
2,000 lbs. |
41-1/4" W x 61"D x 42-3/4" H |
-- |
18" |
524 lbs. |
D-100-MD |
1 Cu Yd. |
4,000 lbs. |
41-1/4" W x 61"D x 42-3/4" H |
-- |
18" |
565 lbs. |
D-150-LD |
1-1/2 Cu Yd. |
2,000 lbs. |
43-1/4Wx61"Dx52"H |
-- |
28" |
600 lbs. |
D-150-MD |
1-1/2 Cu Yd. |
4,000 lbs. |
43-1/4"Wx61"Dx52"H |
-- |
28" |
670 lbs. |
D-250-MD |
2-1/2 Cu Yd. |
4,000 lbs. |
69-1/4"Wx61"Dx52"H |
-- |
28" |
795 lbs. |
D-25-HD |
1/2 Cu Yd. |
6,000 lbs. |
26"Wx52"D 38-1/16"H |
-- |
18" |
410 lbs. |
D-25-LD |
1/4 Cu Yd. |
2,000 lbs. |
26"Wx52"Dx38-1/16"H |
-- |
18" |
360 lbs. |
D-25-MD |
1/4 Cu Yd. |
4,000 lbs. |
26"W52"D38-1/16"H |
-- |
18" |
385 lbs. |
D-33-LD |
1/3 Cu Yd. |
2,000 lbs. |
26"Wx52"Dx38"H |
-- |
18" |
365 lbs. |
D-50-LD |
1/2 Cu Yd. |
2,000 lbs. |
33-1/4"Wx52"Dx38"H |
-- |
18" |
385 lbs. |
D-50-MD |
1/2 Cu Yd. |
4,000 lbs. |
33-1/4"Wx52"Dx38"H |
-- |
18" |
420 lbs. |
D-75-LD |
3/4 Cu Yd. |
2,000 lbs. |
31-1/4"Wx61"Dx43"H |
-- |
18" |
524 lbs. |
D-75-MD |
3/4 Cu Yd. |
4,000 lbs. |
31-1/4"Wx61"Dx43"H |
-- |
18" |
525 lbs. |
